SISTEMA PRESSFITTING PROFILO M DI ACCIAIO INOSSIDABILE

MXF270

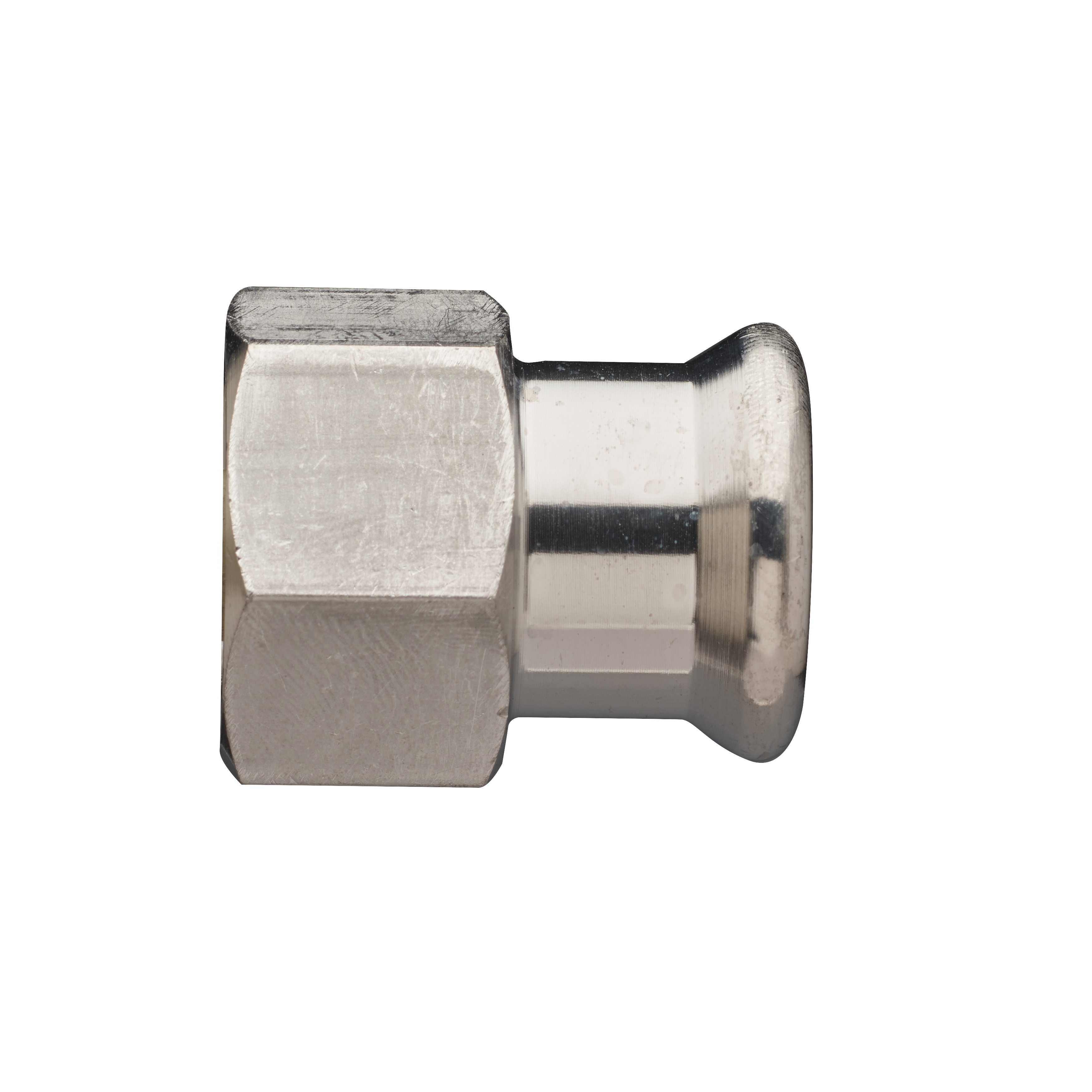

Manicotto femmina filettato femmina.

Specifiche tecniche

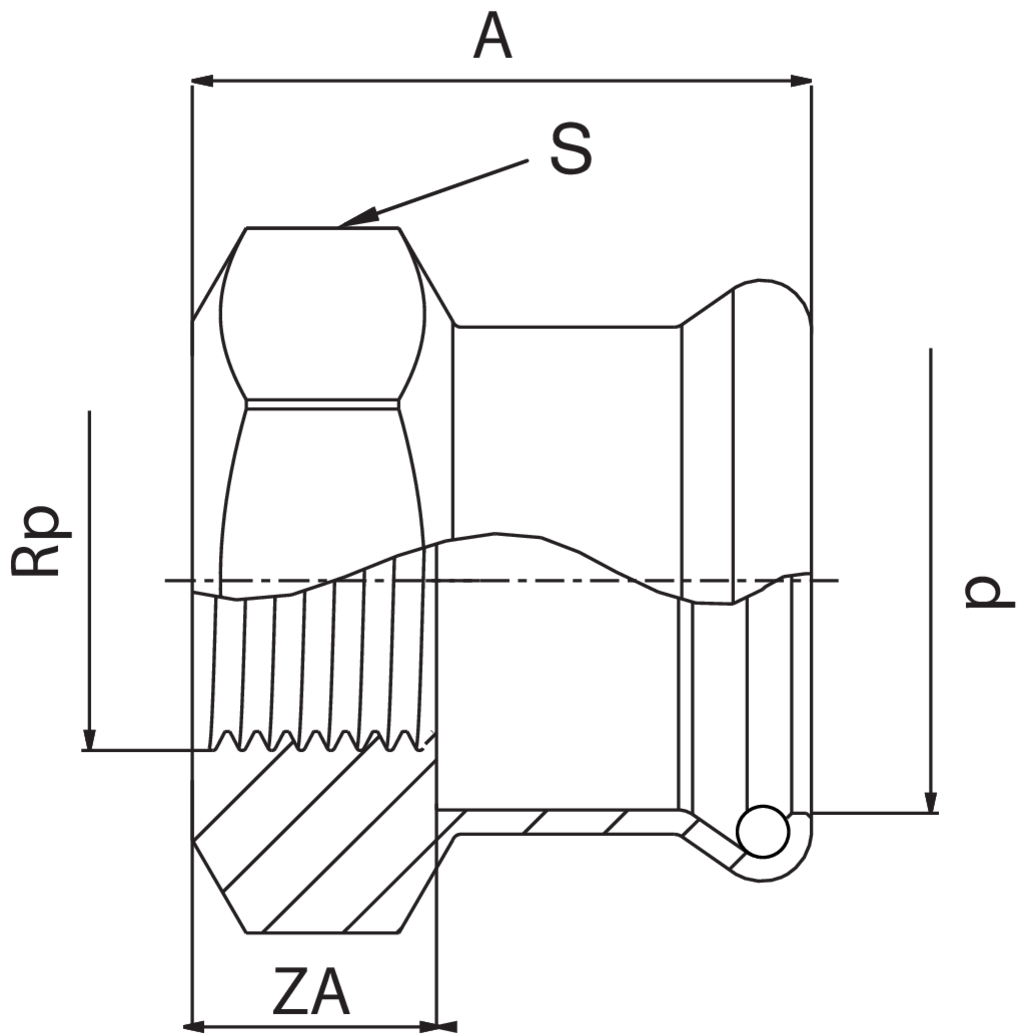

d x Rp	BAG	MASTER BOX	CODICE	A	S	ZA
15 x 1/2"	10	150	MXF270A12015000	37,5	25	18,5
15 x 3/4''	10	200	MXF270A34015000	40	31	21
18 x 1/2"	10	40	MXF270A12018000	38	25	18,5
18 x 3/4"	10	100	MXF270A34018000	40	31	20,5
22 x 1/2"	10	100	MXF270A12022000	38	25	17
22 x 3/4"	10	100	MXF270A34022000	41	31	20
22 x 1"	5	50	MXF270B01022000	45	38	24
28 x 3/4"	5	50	MXF270A34028000	41	31	19
28 x 1/2''	5	100	MXF270A12028000	40	25	18
28 x 1"	5	50	MXF270B01028000	45,5	38	23,5
28 x 1''1/4	5	90	MXF270B14028000	49,5	46	27,5
35 x 1"	5	20	MXF270B01035000	48	38	21
35 x 1''1/2	5	60	MXF270B12035000	55	53	28
35 x 1"1/4	1	30	MXF270B14035000	53	46	26
42 x 1''1/4	2	50	MXF270B14042000	53	46	23
42 x 1"1/2	1	20	MXF270B12042000	57	53	27
54 x 1''1/2	2	24	MXF270B12054000	60	53	25
54 x 2"	1	10	MXF270C02054000	66	65	31
