Spécifications techniques

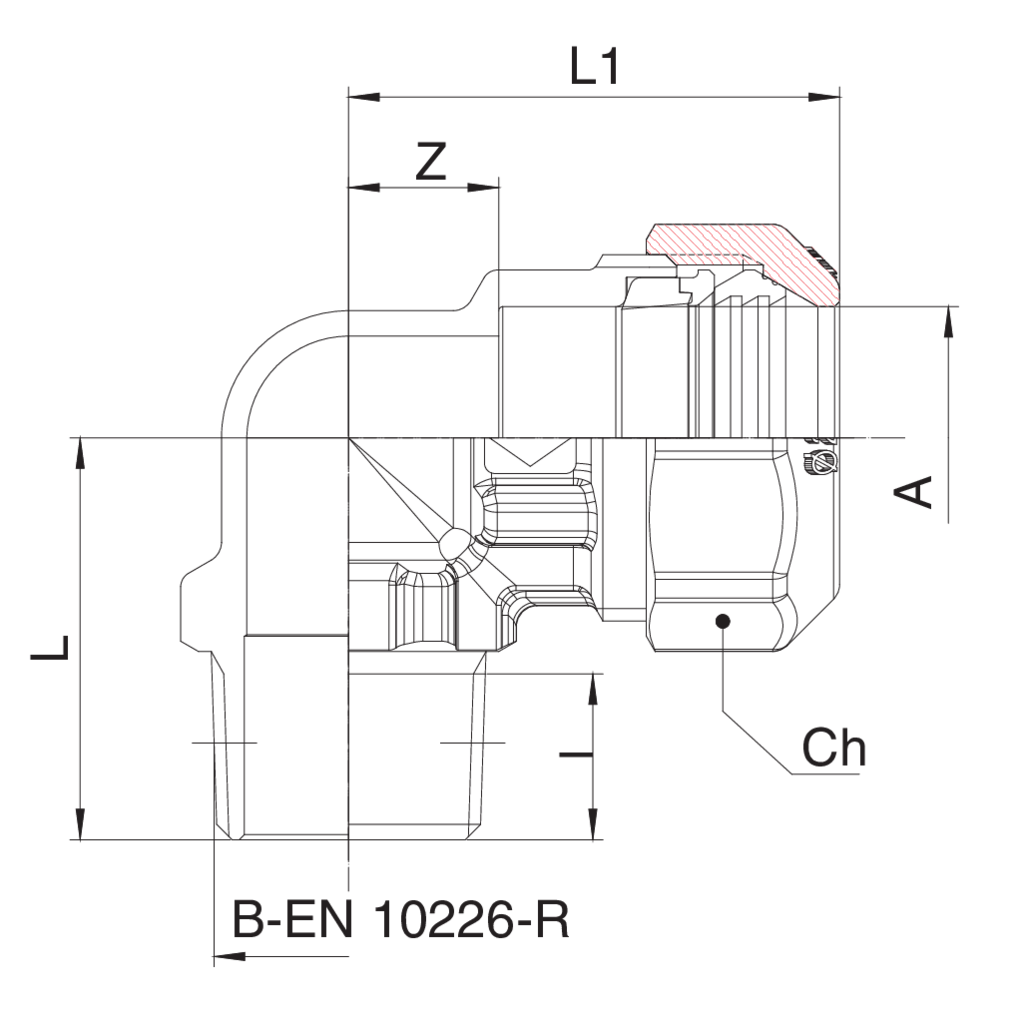

A x B BOX MASTER BOX CODE Ch L L1 Z
20 x 1/2" 20 80 5710002004 34 35,5 40 12
25 x 3/4" 15 60 5710002505 40 39,5 48 15
32 x 1" 10 40 5710003206 48 46 56,5 17,5
40 x 1"1/4 4 16 5710004007 60 56 72 23
50 x 1"1/2 2 8 5710005008 70 66 84,5 28,5
63 x 2" 5 10 5710006310 85 81,5 101 36
75 x 2"1/2 ¹ 2 4 5710007512 - 111 95 40
90 x 3'' ¹ 1 2 5710009014 - 133 107 42

¹ With flange.
