BALL VALVES FOR GAS

946 C

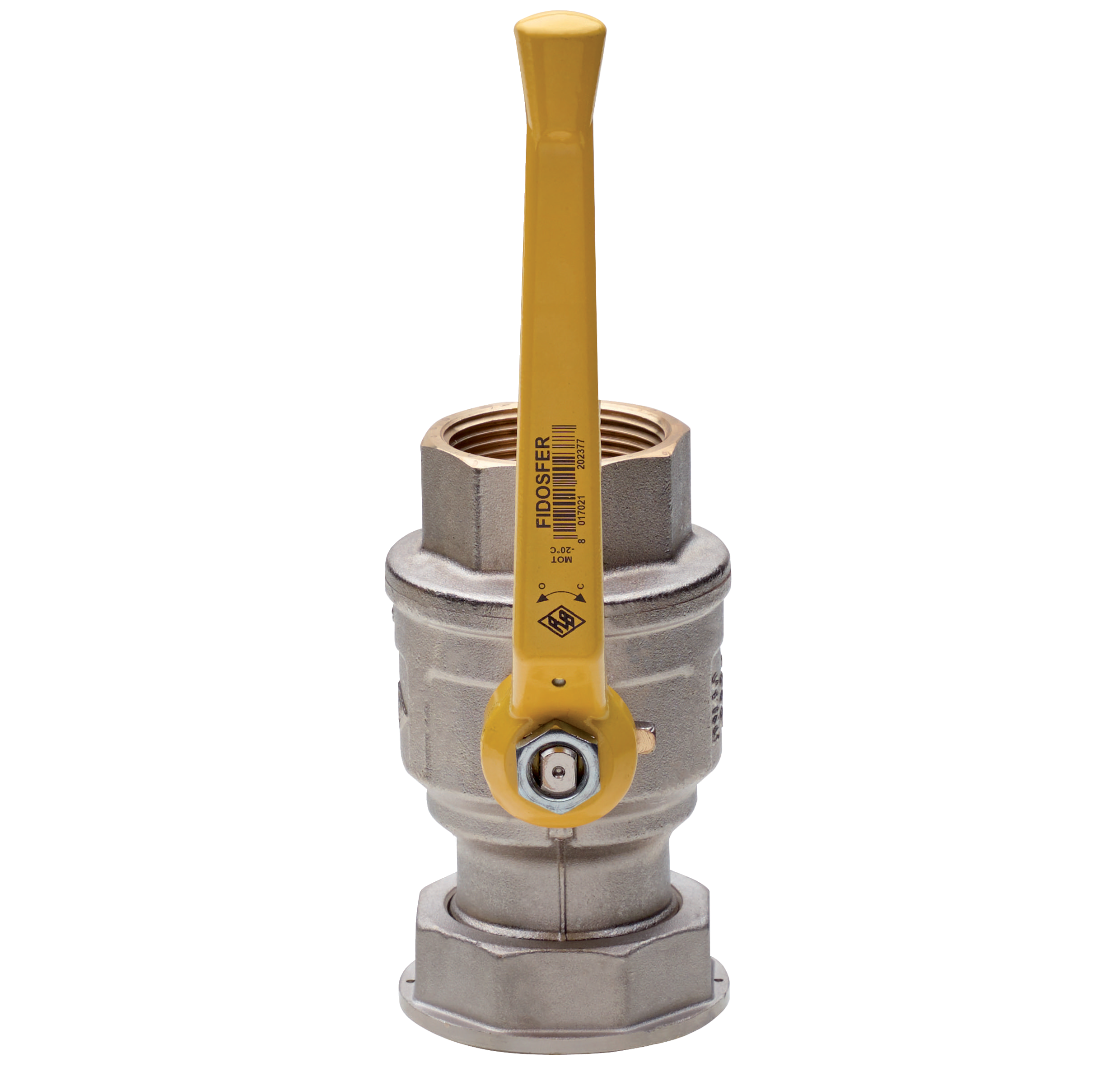

Full bore ball valve for gas meter, with connection for meter bracket. Female inlet with aluminum handle.

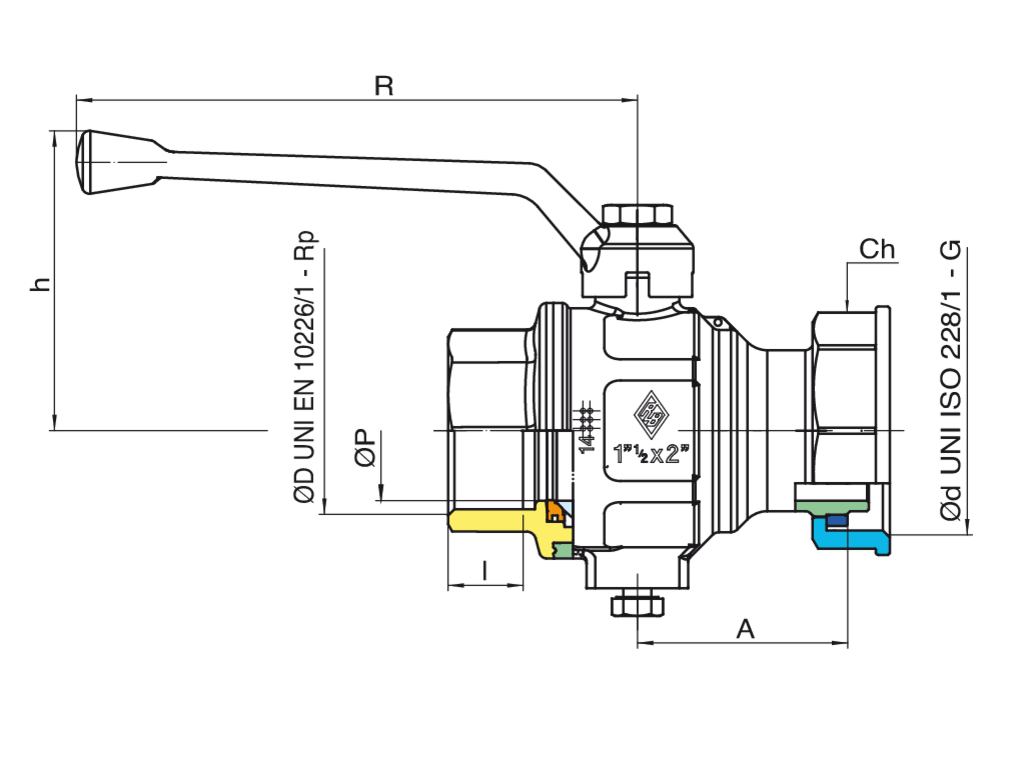

Technical specifications

ØD x Ød	MASTER BOX	CODE	ØP	I	Ch	L	h	A	R	MOP	Kg
1"1/2 x 2"	5	946C690000	40	21,4	63	114	86	60	160	5	1,40

Temperature range: -20°C +60°C.
