SUPERFILTER

310210

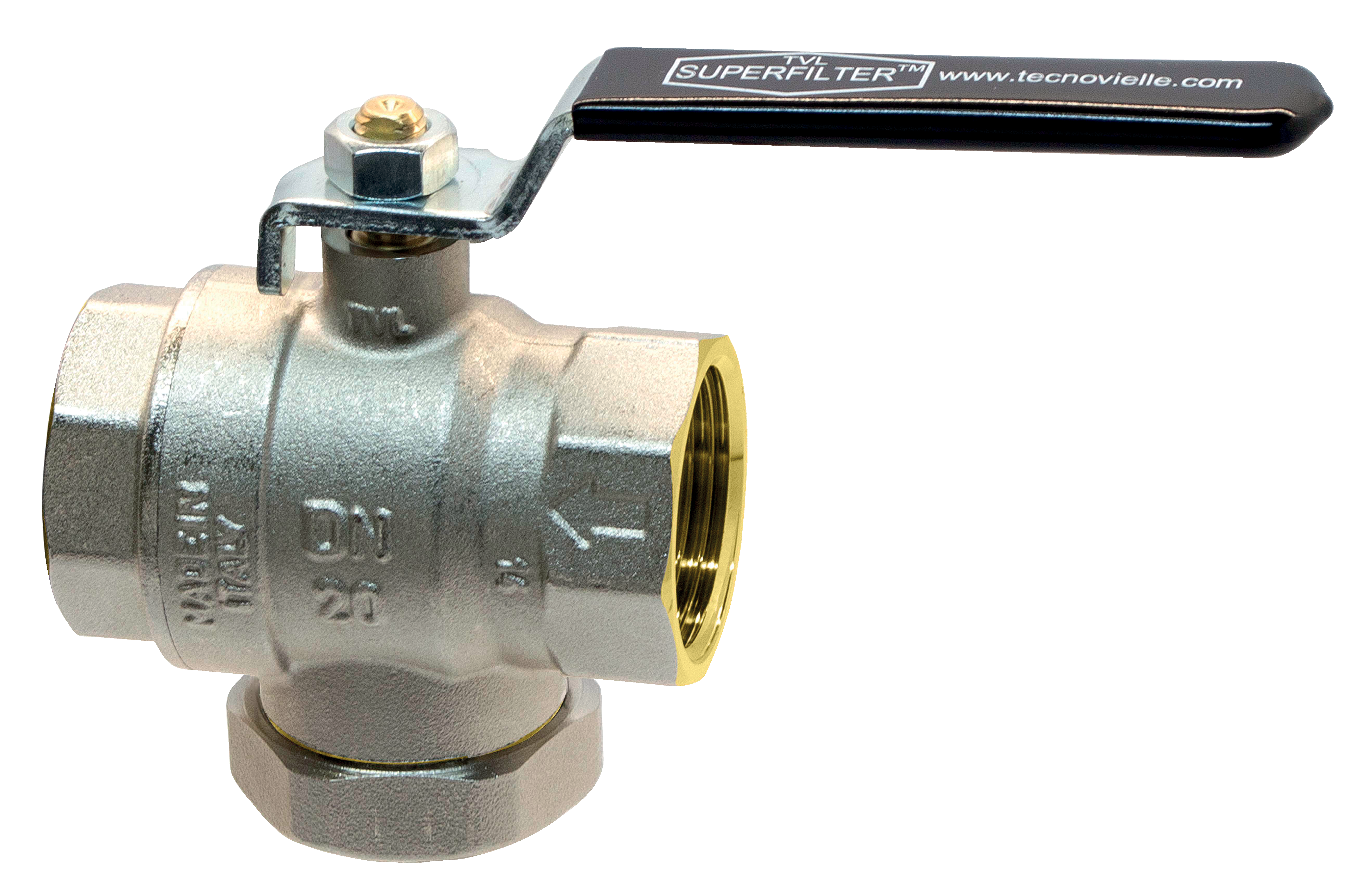

SUPERFILTER ball valve with built-in filter 500 µm, F/F UNI ISO 228/1 thread, steel handle.

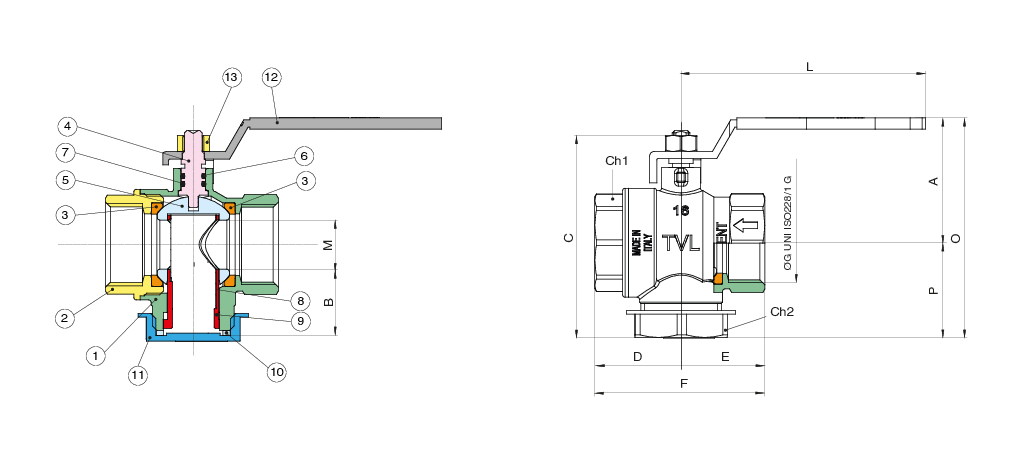

Technical specifications

Position	Part name	Material	N.° pieces
1	BODY	BRASS CW617N UNI EN 12165	1
2	END CONNECTION	BRASS CW617N UNI EN 12165	1
3	BALL SEAT	PTFE	2
4	STEM	BRASS CW614 UNI EN 12164	1
5	BALL	BRASS CW617N UNI EN 12165 CHROME PLATED	1
6	O-RING	NBR	1
7	O-RING	FKM	1
8-9	STRAINER	AISI 304+Nylon	1
10	GASKET RING	NBR	1
11	CAP	BRASS CW614 UNI EN 12164	1
12	HANDLE	ZINC PLATED STEEL	1
13	NUT	ZINC PLATED STEEL	1
14	SCREW	INOX	1
15	MAGNET	NEODIMIO (12.000 GAUSS) NDFEB	1

SIZE	DN	BOX	MASTER BOX	CODE	A	B	C	D	E	F	L	O	P	Ch1	Ch2	PN
1/2"	12	12	72	31021004	44,2	66,2	24	26,7	50,7	100	75,2	31	25	24	30	30
3/4"	16	8	48	31021005	47,4	30,9	73,58	29	32,3	61,3	100	82,5	35,1	31	30	30
1''	20	6	36	31021006	50,8	34,5	80,5	34,5	35,6	70,1	100	89,5	38,7	38	38	30
1''1/4	28	4	8	31021007	74	46,5	106	40	45	85	158	125,5	51,5	48	46	20
1''1/2	36	3	6	31021008	80	52,5	118	45,5	52	97,5	158	137,5	57,5	54	55	20
2''	46	2	4	31021010	88,5	63,5	143	54	63	117	158	157	68,5	66	65	20

Available media and videos

CAT231102 SUPERFILTER_ENG.pdf

SUPERFILTER, LA VALVOLA A SFERA CON MAGNETE E FILTRO VERTICALE INCORPORATO

Spare Parts

Valves spare parts

Code	Material	Size
3102RI0403		1/2"
3102RI0503		3/4"
3102RI0603		1''
3102RI0703		1''1/4
3102RI0803		1''1/2
3102RI1003		2''
