300400

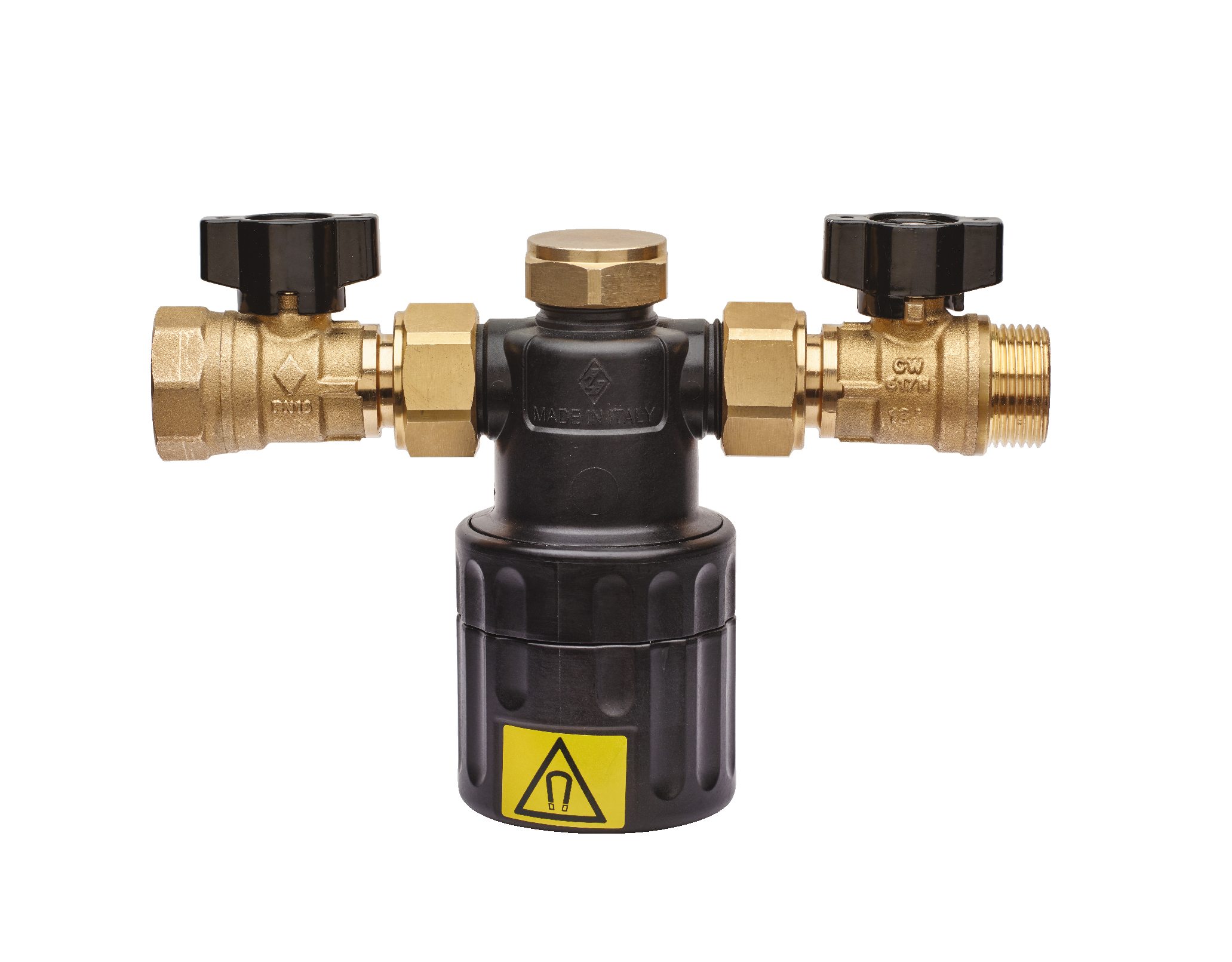

Magnetic dirt separator for condensing boilers, threaded connections according to ISO 228 G 3/4”, with valve and connection.

Technical specifications

Drawing

Materials

POSITION	PART NAME	MATERIAL	N.° PIECES
1	BODY	PA6.6	1
2	BOWL	PA6.6	1
3	MAGNET HOLDER	PA6.6	1
4	STRAINER	PA6.6	2
5	MAGNET	-	4
6	O-RING	EPDM	1
7	GASKET RING	EPDM	4
8	CAP	BRASS CW614N UNI EN 12164	1
9	CONNECTION	BRASS CW614N UNI EN 12165	1
10	VALVE	BRASS CW617N	1
11	LABEL	PE	1

Table

CODE	SIZE	DN	UNITS PER BOX	MASTER BOX	COLORE COLOR	ØA	L	LI	L2	H	W	KV1	KV2	PN	KG
30040005	3/4”	20	1	8	NERO BLACK	60	156	95	61	93	123	4.8	5	3	0.51
30041005	3/4”	20	1	8	BIANCO WHITE	60	156	95	61	93	123	4.8	5	3	0.51

Notes

angle flow.
