CATALOGUE
/
COMPRESSION FITTINGS
/
COMPRESSION FITTINGS FOR PIPES MADE IN PE/HDPE/PEX
/
581800

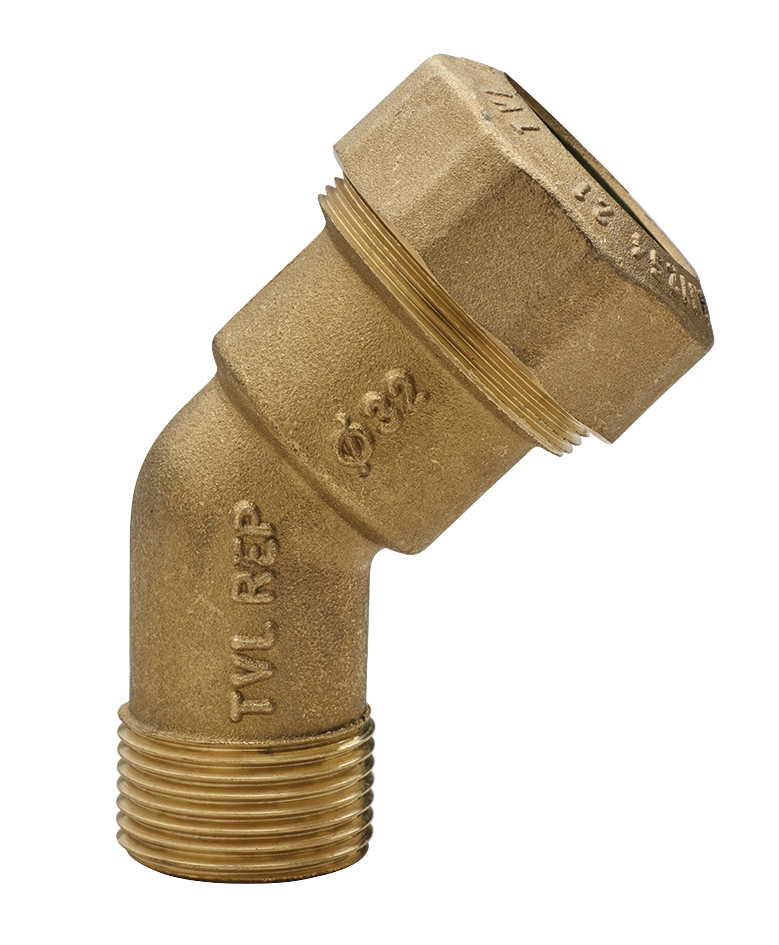

COMPRESSION FITTINGS FOR PIPES MADE IN PE/HDPE/PEX
581800
Male elbow 45° with patented quick connection.

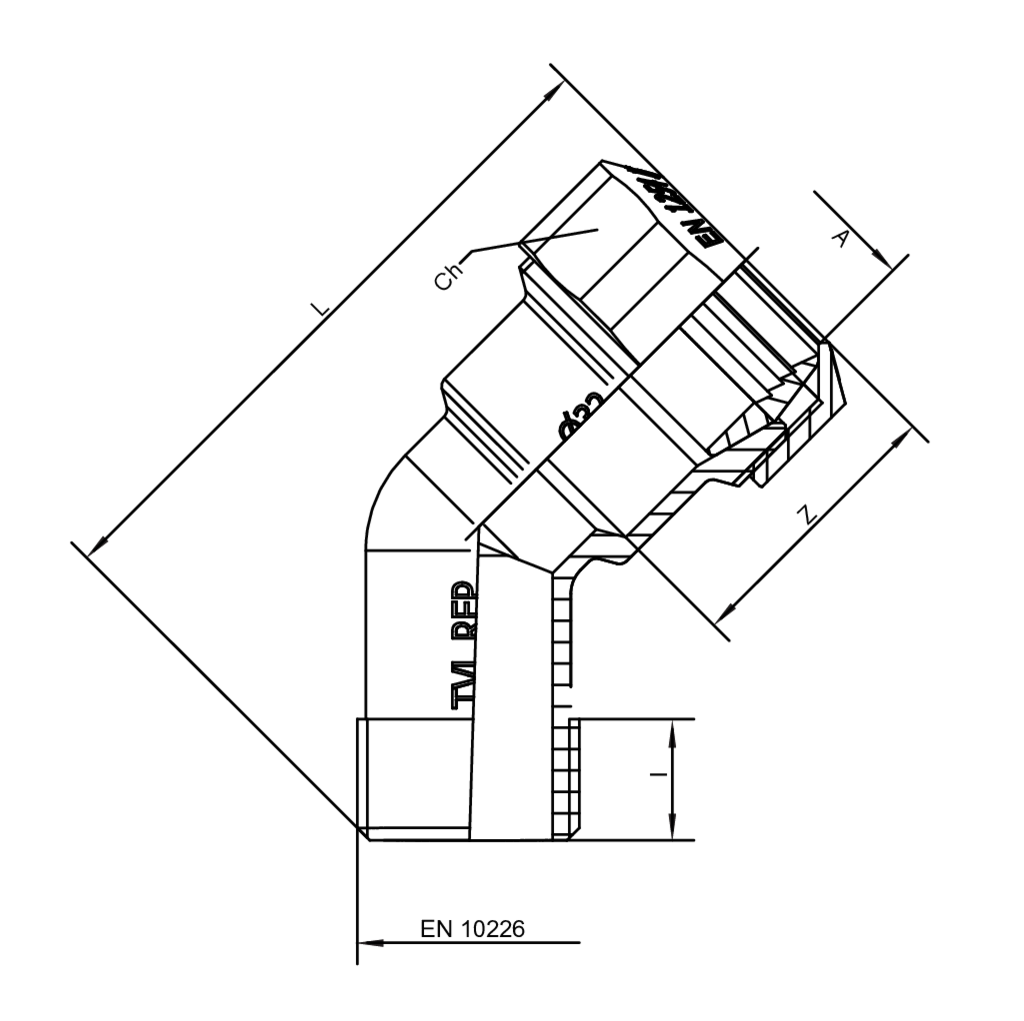

Technical specifications
A x B
BOX
MASTER BOX
CODE
Ch
L
L1
Z
25 x 3/4''
15
60
5818002505
41
39
54
13
32 x 1''
10
40
5818003206
51
45
62
16,5
Applications
Available media and videos
Catalogue
Price list
TURBO RING – Tecnovielle
Back to the catalogue
