COMPRESSION FITTINGS FOR PIPES MADE IN PE/HDPE/PEX

571100

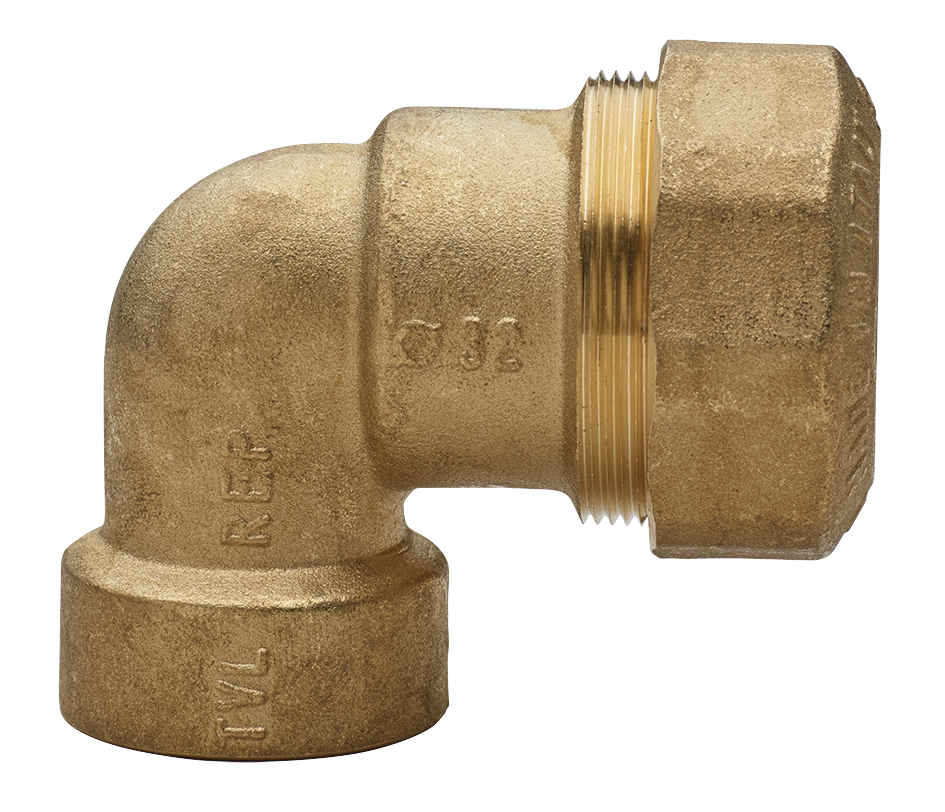

Female elbow with fastening ring made in brass.

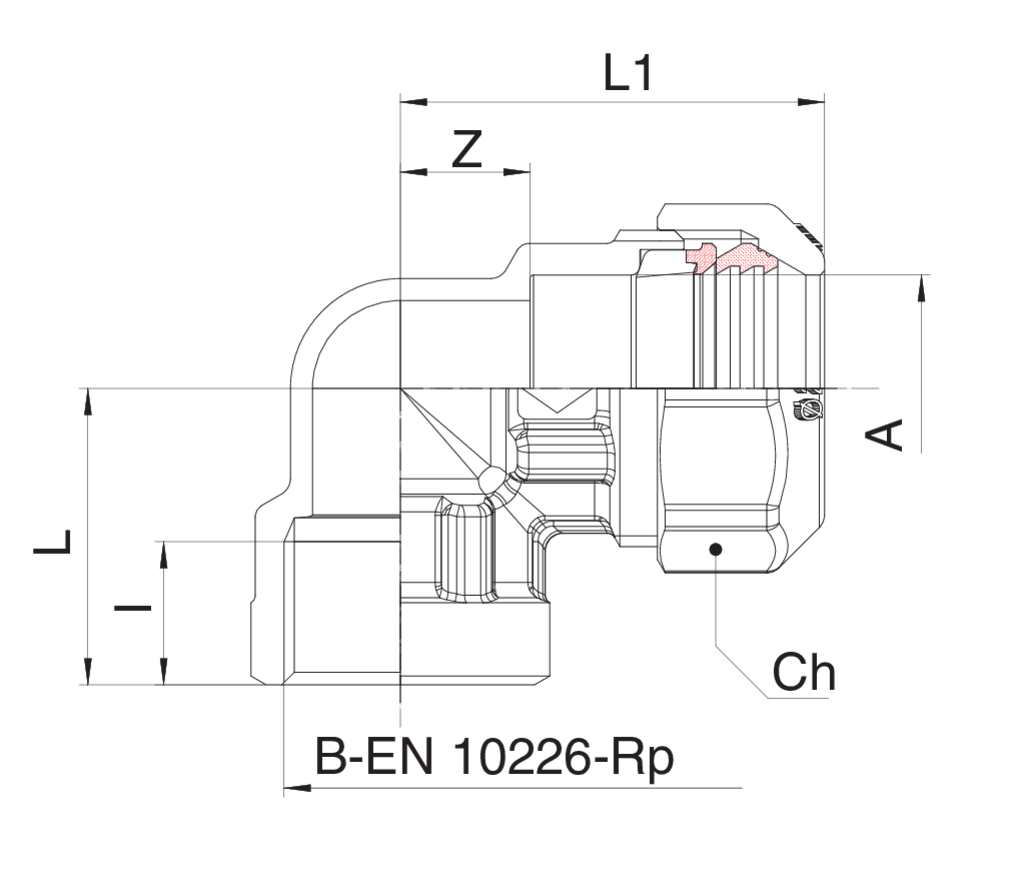

Technical specifications

A x B	BOX	MASTER BOX	CODE	Ch	L	L1	Z
110 x 4'' ¹	-	1	57110011018	-	157	100	42
20 x 1/2"	20	80	5711002004	34	33,5	42,5	10,6
25 x 3/4"	15	60	5711002505	41	39,2	51,2	13,4
32 x 3/4"	10	40	5711003205	51	44	59	17
32 x 1"	10	40	5711003206	51	47	59	17
40 x 1"1/4	4	16	5711004007	59	56,5	73,5	22
50 x 1"1/2	2	8	5711005008	70	62,5	84,5	27
63 x 2"	5	10	5711006310	87	76	99,5	34
75 x 2"1/2 ¹	2	4	5711007512	-	113	75	38
90 x 3'' ¹	1	2	5711009014	-	130	85	40

¹ With flange.
