COMPRESSION FITTINGS FOR PIPES MADE IN PE/HDPE/PEX

560000

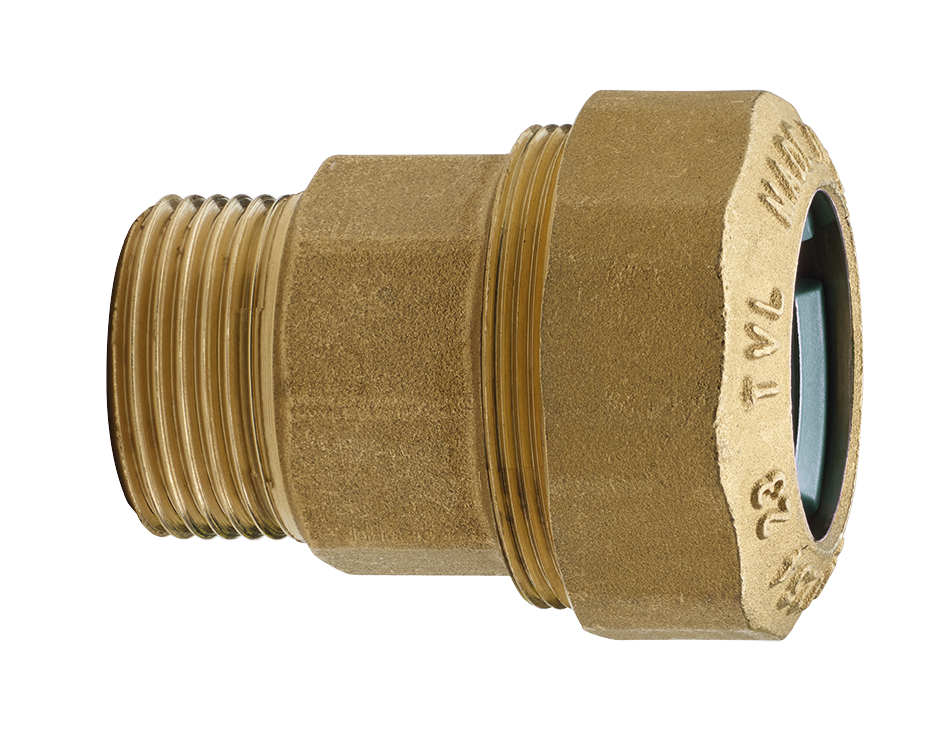

Straight male fitting with fastening ring made in POM.

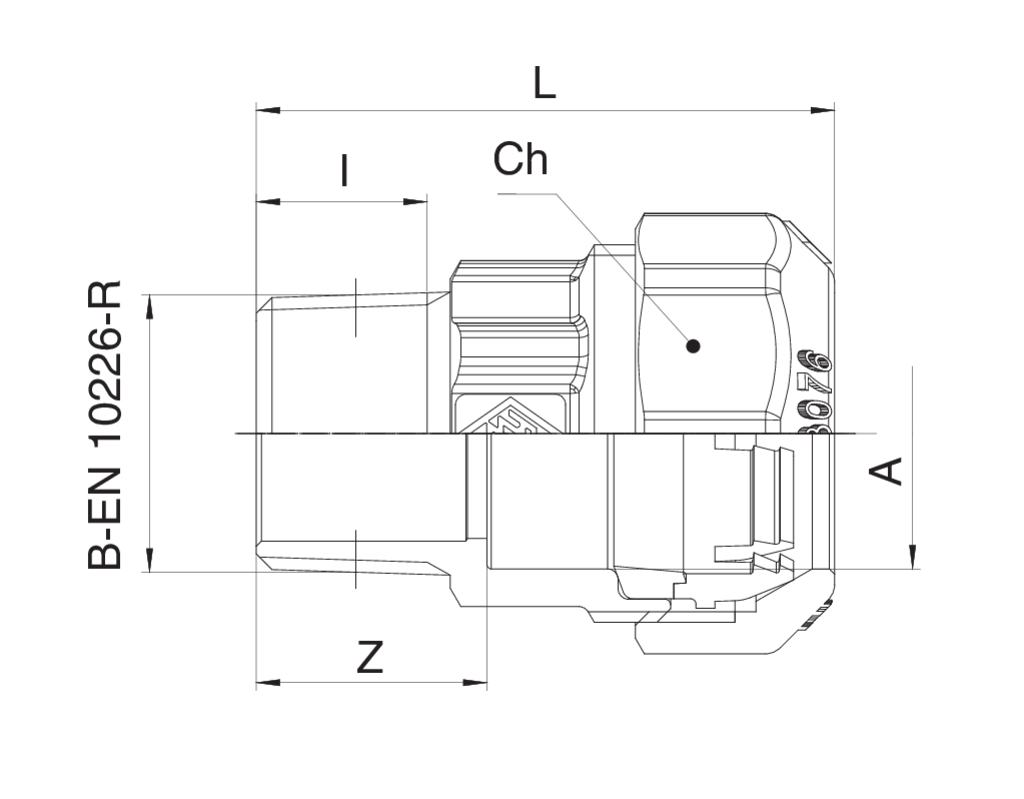

Technical specifications

A x B	BOX	MASTER BOX	CODE	Ch	L	Z
20 x 1/2"	30	120	5600002004	34	48	15
25 x 1/2"	30	120	5600002504	41	55,5	16,5
25 x 3/4"	30	120	5600002505	41	55,5	16,5
25 x 1''²	20	80	5600002506	41	58,5	19
32 x 3/4"²	20	80	5600003205	51	68	18,5
32 x 1"	16	64	5600003206	51	62	19
32 x 1"1/4	12	48	5600003207	51	65,5	22,5
40 x 1"²	12	48	5600004006	59	72,5	21
40 x 1"1/4	10	40	5600004007	59	73	21,5
50 x 1"1/4³	6	24	5600005007	70	82	24,5
50 x 1"1/2	6	24	5600005008	70	81	23,5
63 x 2"	6	12	5600006310	87	94	28,5
75 x 2"1/2¹	1	4	5600007512	-	109	29
90 x 3''¹	1	4	5600009014	-	124	31
110 x 4''¹ ³	1	2	57000011018	-	147	38

¹ With flange. - ² Reduced.

³ Art. 570000.
