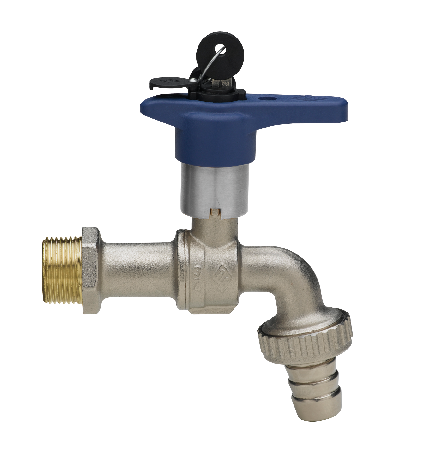

Brass buttefly bib-cock full bore, with hose tail and throttling, technopolymer handle.
Technical specifications

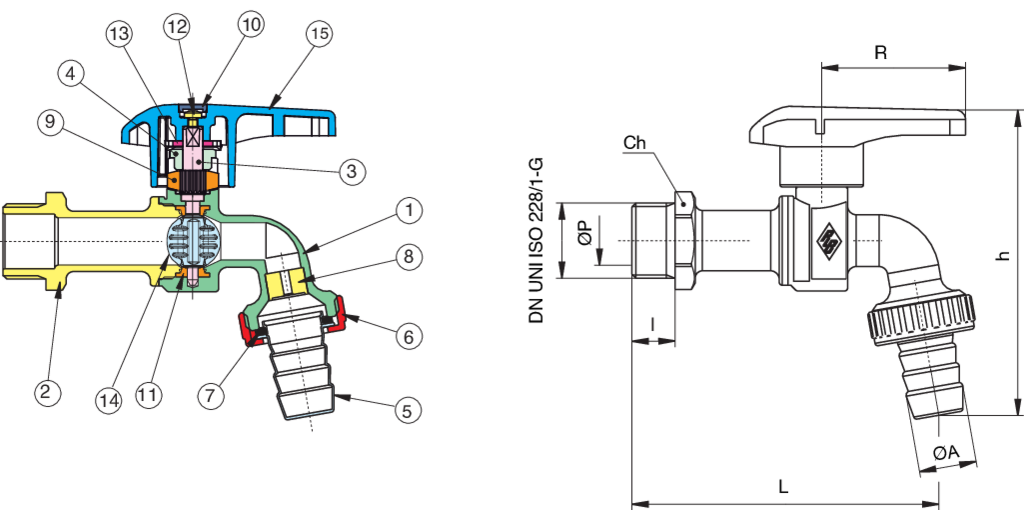

Drawing
Materials
POSITION
PART NAME
MATERIAL
N.° PIECES
1
BODY
BRASS CW617N UNI EN 12165
1
2
END CONNECTION
BRASS CW617N UNI EN 12165
1
3
STEM
BRASS CW614N UNI EN 12164
1
4
WASHER
BRASS CW614N UNI EN 12164
1
5
HOSE TAIL
BRASS CW617N UNI EN 12165
1
6
NUT
BRASS CW617N UNI EN 12165
1
7
FLAT SEAT
PVC
1
8
SPRAY NOZZLE
HDPE
1
9
HALF TURN STOP
POM
1
10
CAP
ABS
1
11
SEAT
EPDM
1
12
SCREW
STEEL DD11
1
13
WASHER
BRASS CW614N UNI EN 12164
1
14
DISC
PEI (ULTEM 1000)
1
15
HANDLE
PA6
1
Table
CODE
SIZE
DN
UNITS PER BOX
MASTER BOX
ØP
I
CH
L
ØA
H
R
PN
KG
60070004
1/2”
15
10
40
12
12
25
90.5
15
96.5
50
16
0.24
60070005
3/4”
20
10
20
16.5
15
30
107
20
108.5
50
16
0.34
60070006
1”
25
10
20
18
18
38
118
26
123
50
16
0.51
Notes
The accessory, item 5810, is available. See at page 310.
