PUSH AND PRESS FITTING SYSTEM FOR MULTILAYER PIPE
/
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
/
599305
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
599305

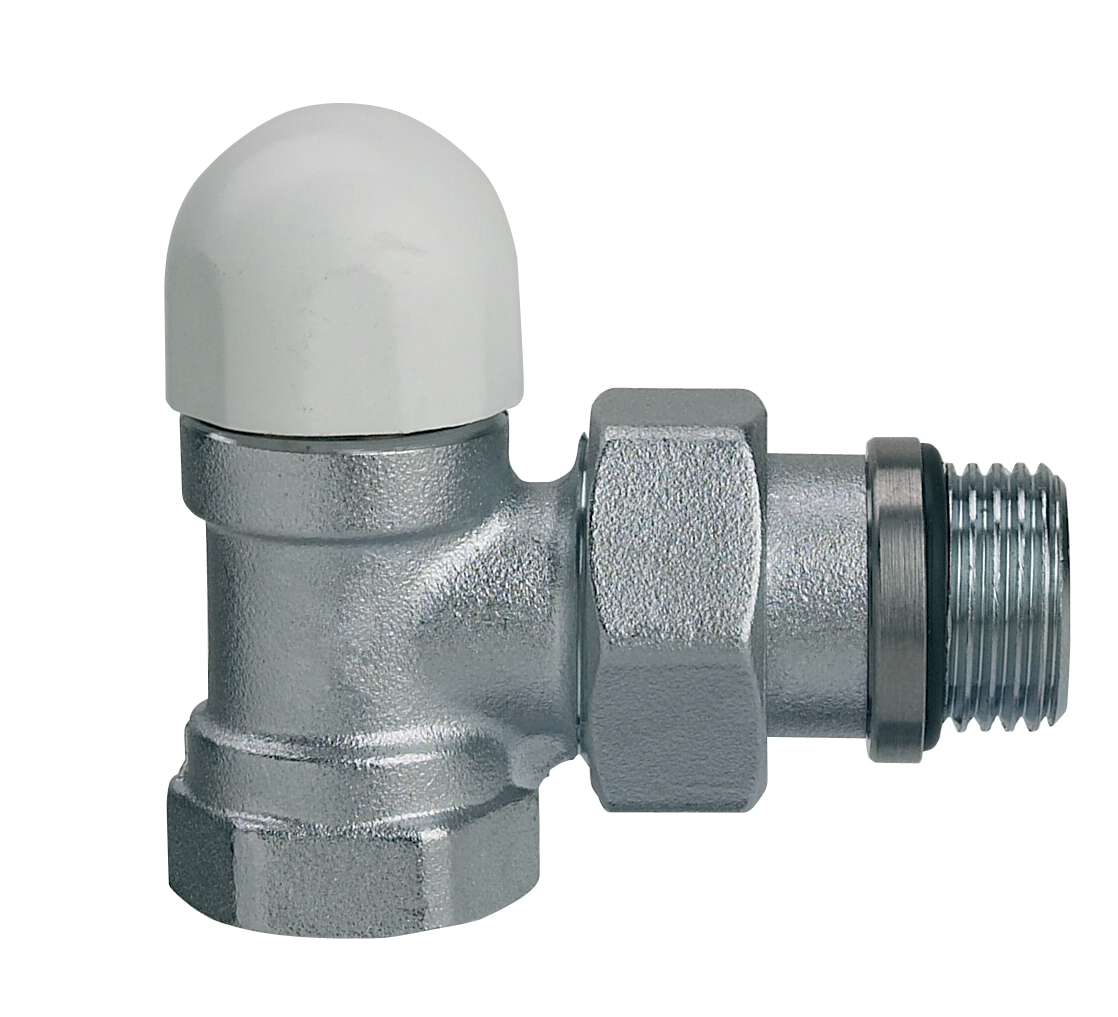

Angle lockshield iron pipe connections.

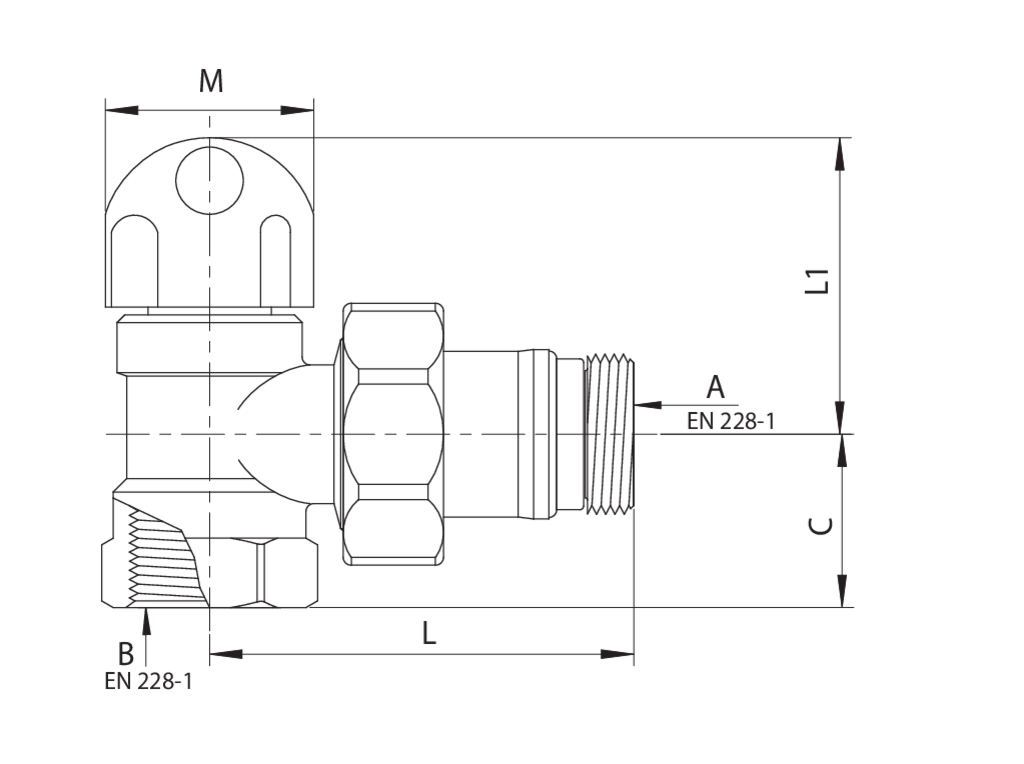

Technical specifications
A x B
BOX
MASTER BOX
CODE
TRATTAMENTO TREATMENT
C
D
L
L1
M
3/8" x 3/8"
15
90
59930503
Nichelato - Nickel plated
30
50
45
80
27
1/2" x 1/2"
15
90
59930504
Nichelato - Nickel plated
28
54
45
82
27
3/4" x 3/4"
10
60
59930505
Nichelato - Nickel plated
28
57
45
85
27
