PUSH AND PRESS FITTING SYSTEM FOR MULTILAYER PIPE
/
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
/
591100
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
591100

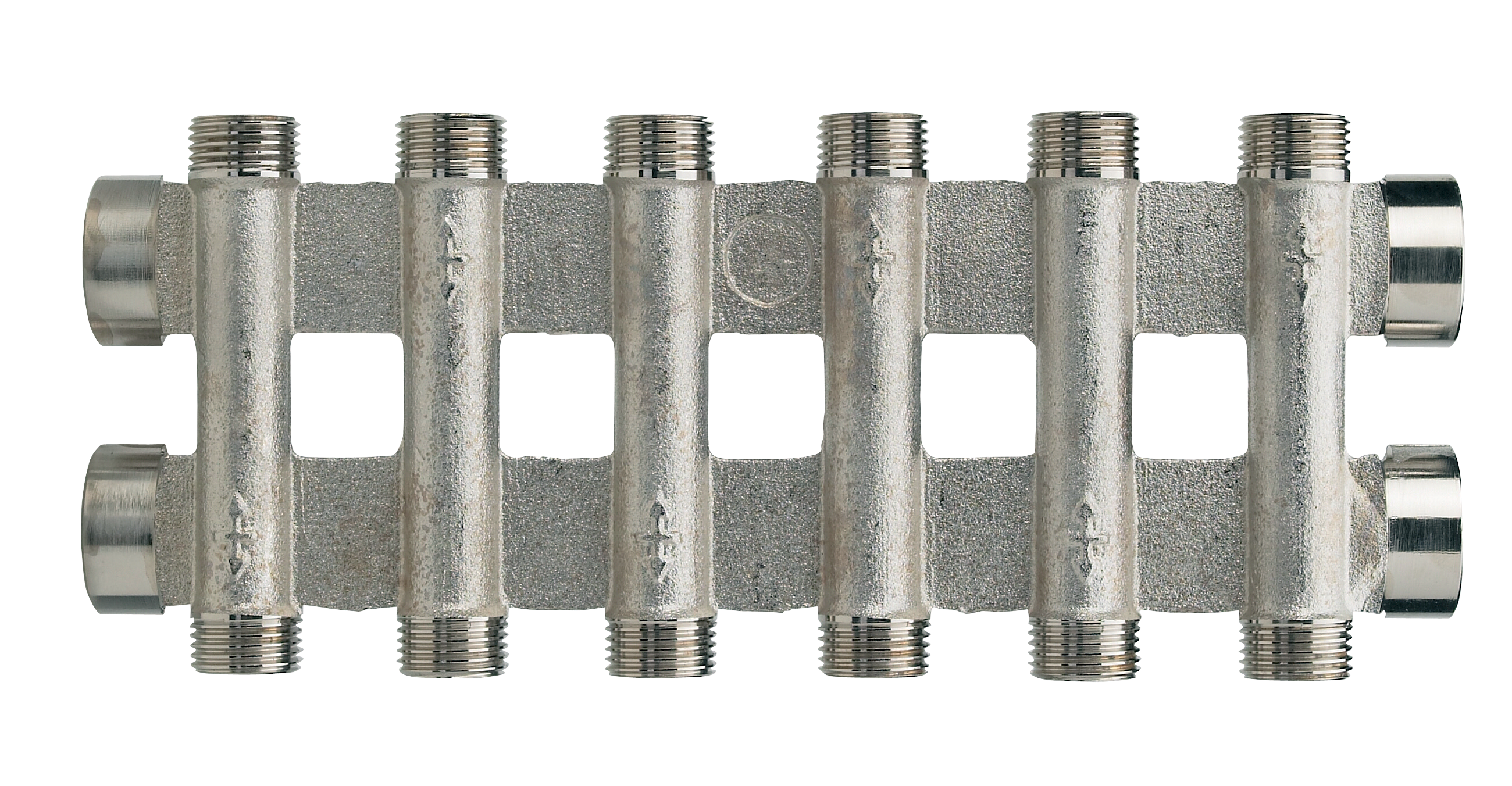

Brass complanar compact manifold with 1/2” ways.

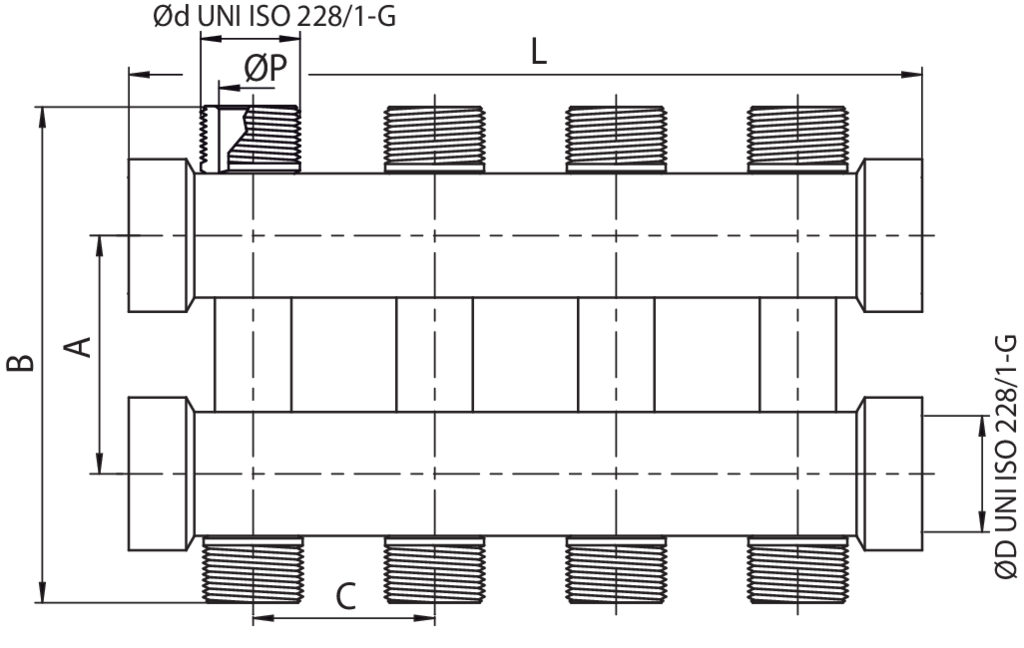

Technical specifications
ØD x Ød
BOX
MASTER BOX
CODE
TRATTAMENTO TREATMENT
N° VIE N° WAYS
ØP
A
B
C
L
3/4" x 1/2"
1
4
5911000504
Nichelato - Nickel plated
4 x 4
16
50
104
38
166
3/4" x 1/2"
-
1
5911000506
Nichelato - Nickel plated
6 x 6
16
50
104
38
242
3/4" x 1/2"
-
1
5911000508
Nichelato - Nickel plated
8 x 8
16
50
104
38
318
1" x 1/2"
-
1
5911000606
Nichelato - Nickel plated
6 x 6
16
55
115
38
250
1" x 1/2"
-
1
5911000608
Nichelato - Nickel plated
8 x 8
16
55
115
38
326
1" x 1/2"
-
1
5911000610
Nichelato - Nickel plated
10 x 10
16
55
115
38
402
