CATALOGUE
/
PUSH AND PRESS FITTING SYSTEM FOR MULTILAYER PIPE
/
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM
/
500290
TURBO PRESS MULTILAYER PIPE AND FITTINGS SYSTEM

500290

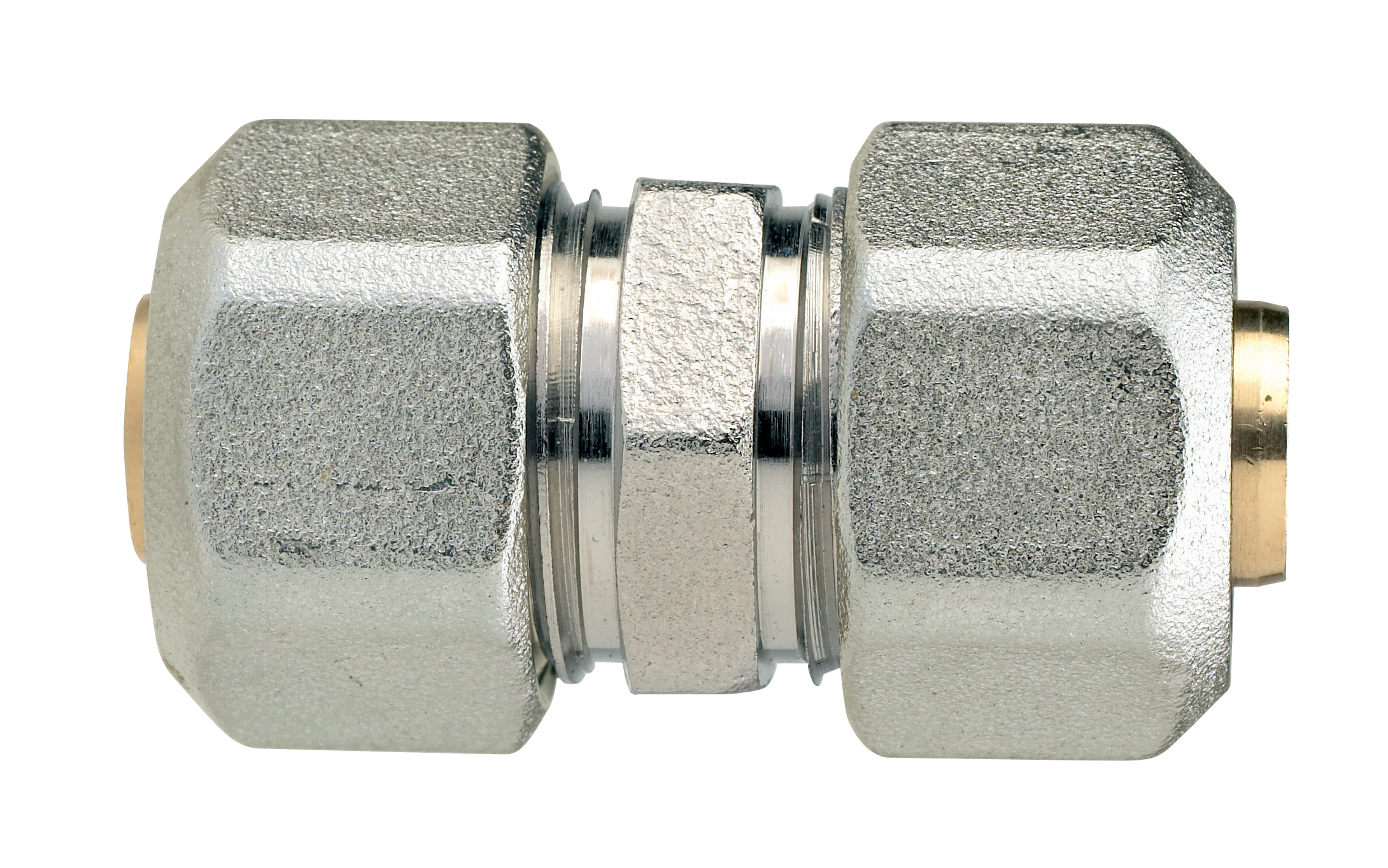

Double straight fitting for multilayer pipe.
Technical specifications

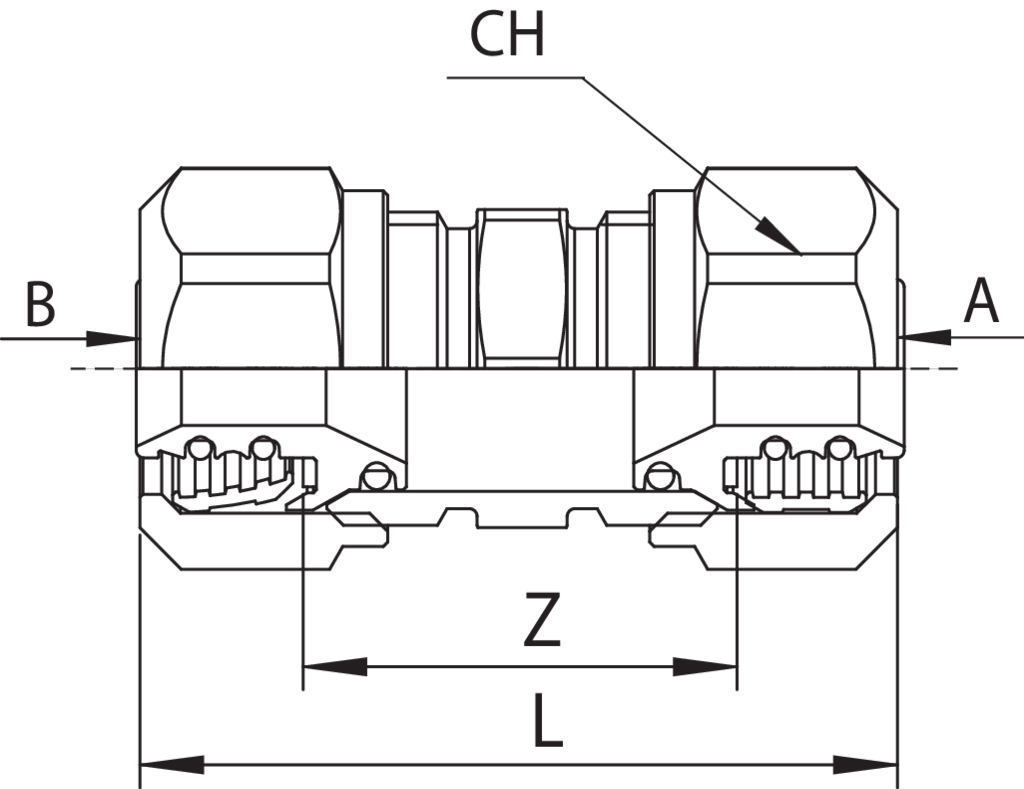

A x B BAG BOX MASTER BOX CODE TRATTAMENTO TREATMENT SP CH L Z
14 x 14 5 40 160 50029014 Nichelato - Nickel plated 2 24 48,5 25,5
16 x 16 5 40 160 50029016 Nichelato - Nickel plated 2 24 50,5 29
18 x 18 5 25 100 50029018 Nichelato - Nickel plated 2 30 56 31,5
20 x 20 5 25 100 50029020 Nichelato - Nickel plated 2 30 61,5 36,5
