5N9100

Disco check valve PN16.

Technical specifications

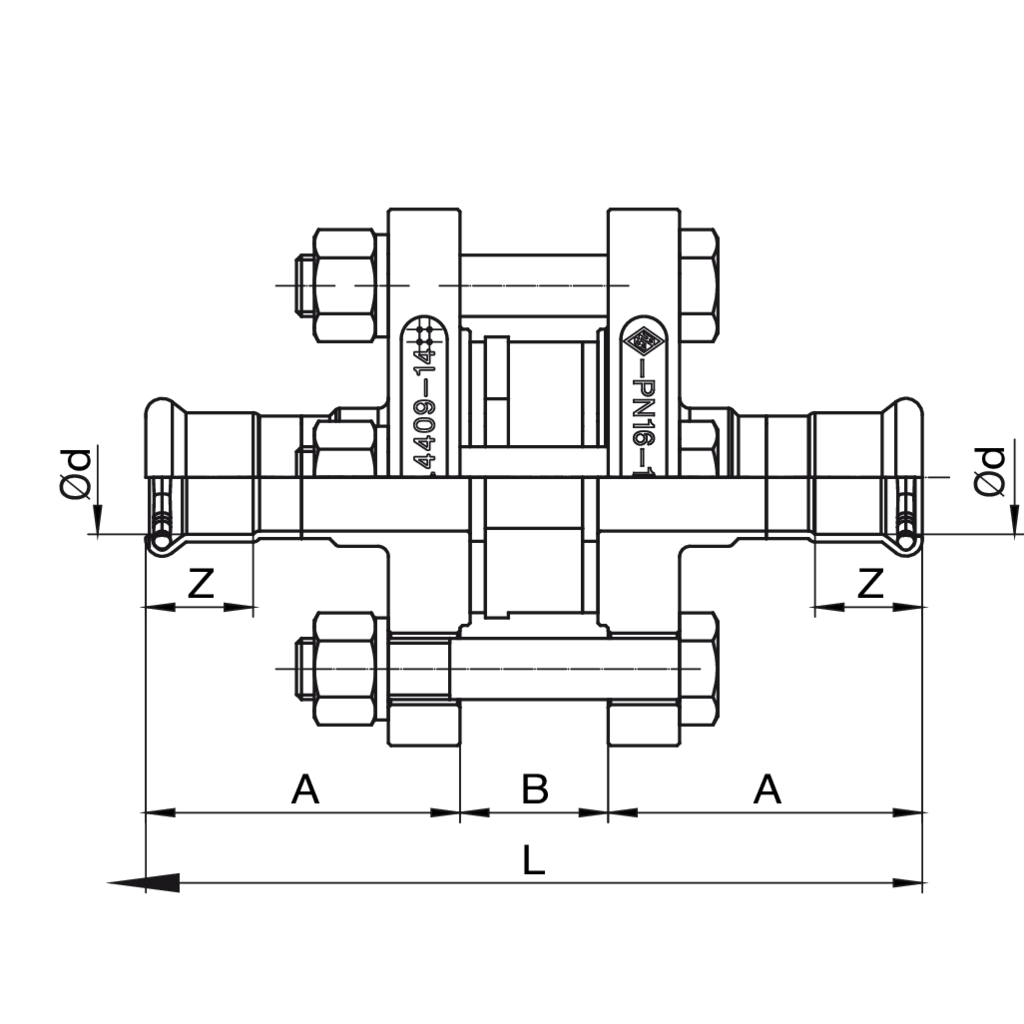

Drawing

Table

CODE	MASTER BOX	D	Z	A	B	L
5N9100108	1	108	76	131	67	329
5N910015	8	15	19	42	23	107
5N910018	-	18	-	-	-	-
5N910022	6	22	21	52.5	26	131
5N910028	6	28	22	57.5	29	144
5N910035	4	35	27	66.5	35	168
5N910042	4	42	30	71	39	181
5N910054	2	54	35	81	47	209
5N910076	1	76.1	54	92	53	238
5N910088	1	88.9	61	118	57	293
