5N9000

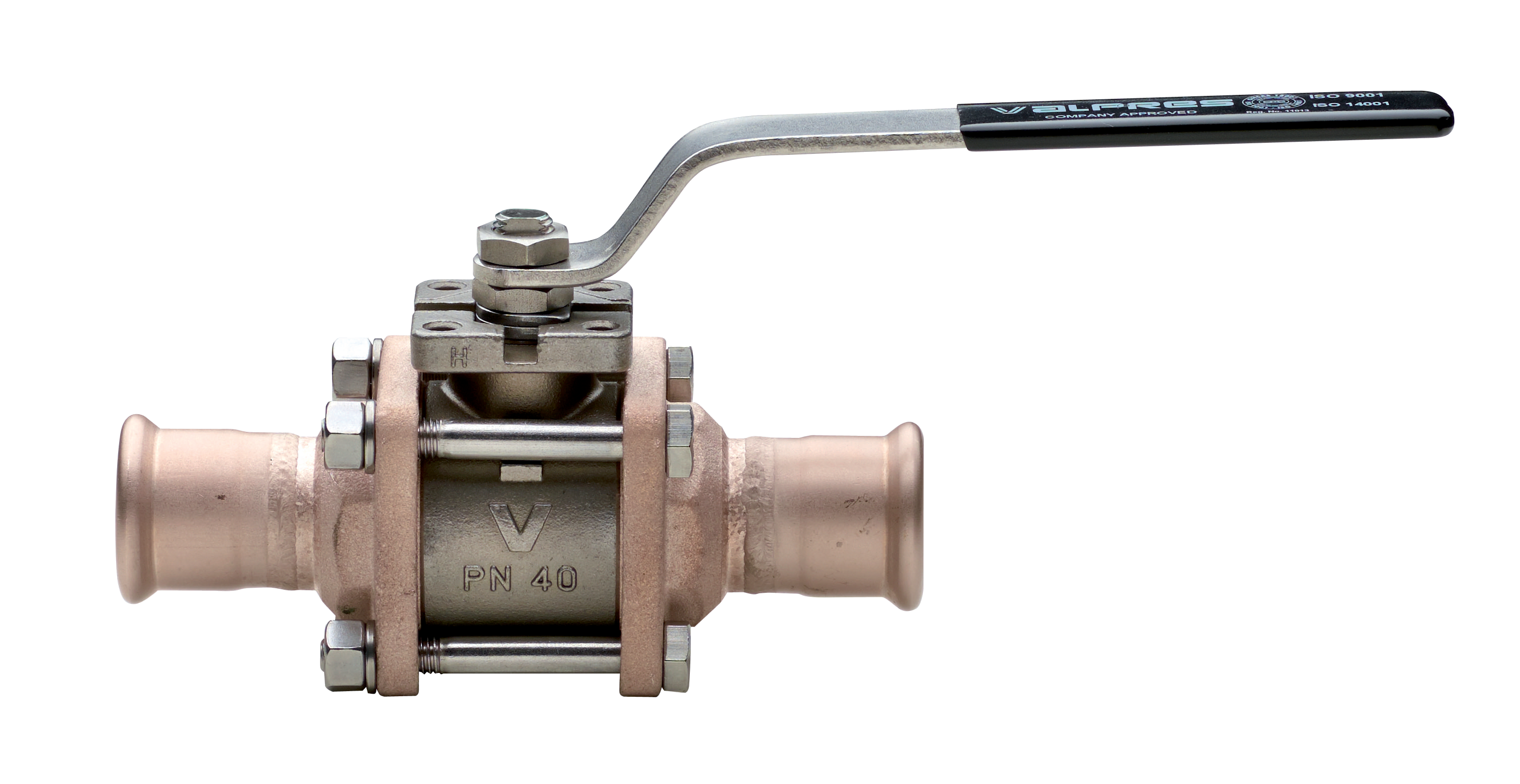

3-piece stainless steel AISI 316-CF8M ball valve with CuNi connections.

Technical specifications

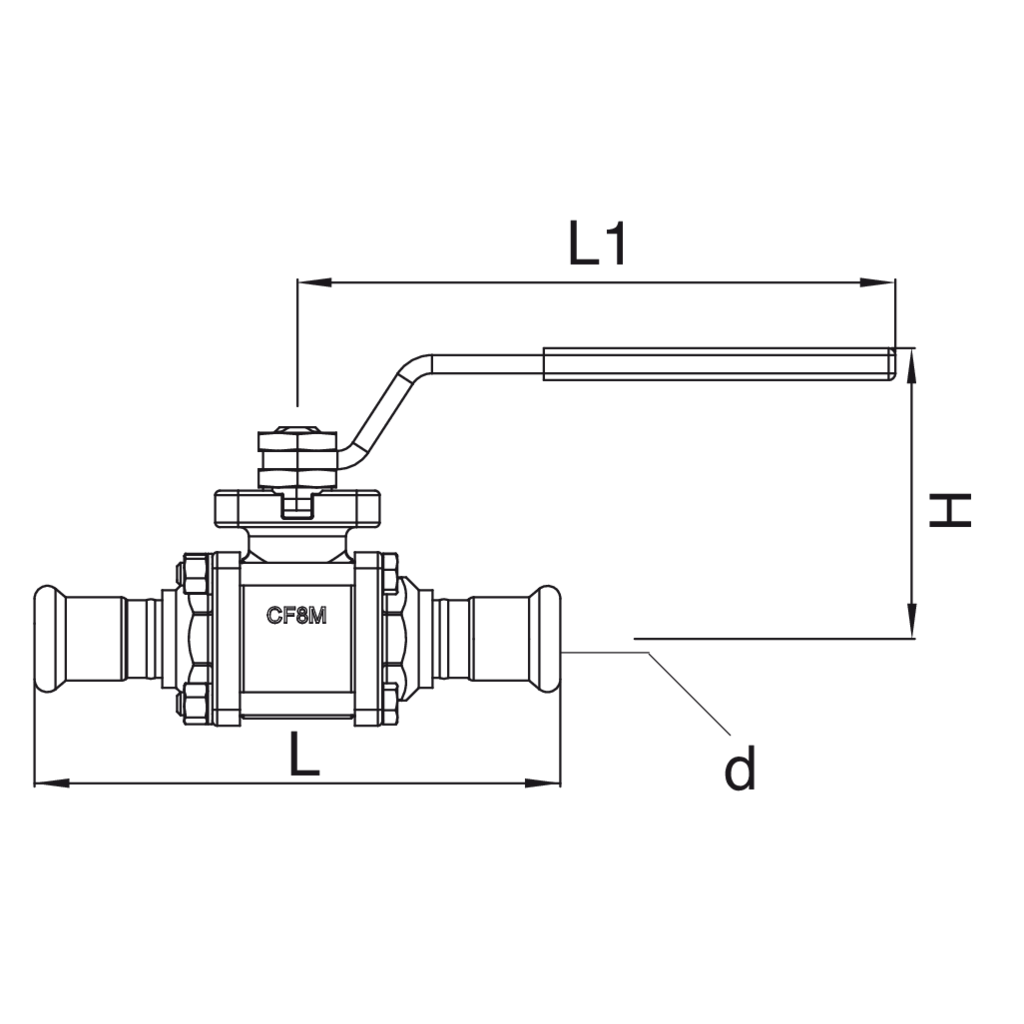

Drawing

Table

CODE	MASTER BOX	D	L	H	L1
5N9000108	1	108	415	156.5	381.5
5N900015	24	15	116	64	131
5N900018	-	18	-	-	-
5N900022	8	22	137	68.5	131
5N900028	4	28	156	78	174
5N900035	4	35	184	82.5	174
5N900042	2	42	198	100	250.5
5N900054	2	54	230	107	250.5
5N900076	1	76.1	295	126	321
5N900088	1	88.9	346	137.5	321
