Technical specifications

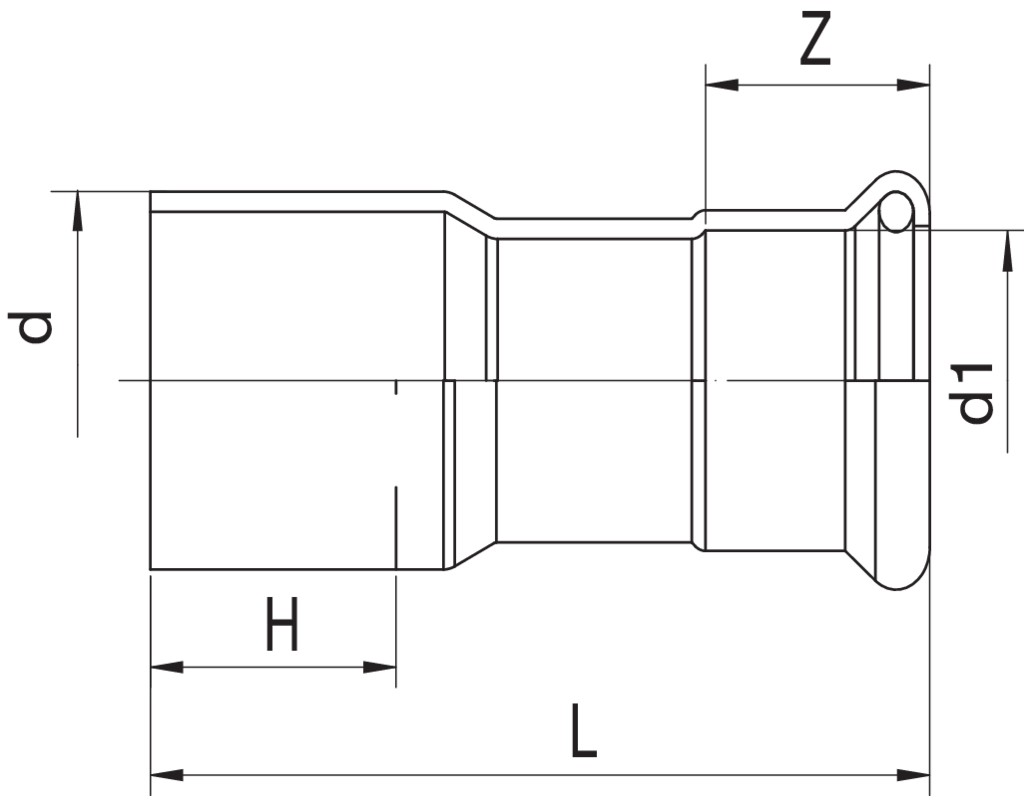

d x d1 BAG MASTER BOX CODE L Z H
18 x 15 10 250 5N04001815 54 19 19,5
22 x 15 10 250 5N04002215 64 19 21
22 x 18 10 250 5N04002218 60 19,5 21
28 x 15 10 200 5N04002815 70 19 22
28 x 18 10 200 5N04002818 70 19,5 22
28 x 22 5 150 5N04002822 69 21 22
35 x 22 5 100 5N04003522 71,5 21 27
35 x 28 5 100 5N04003528 72 22 27
42 x 28 2 80 5N04004228 77 22 30
42 x 35 2 60 5N04004235 80 27 30
54 x 35 2 40 5N04005435 104 27 35
54 x 42 2 30 5N04005442 98 30 35
76,1 x 54 1 18 5N04007654 144 35 54
88,9 x 54 1 12 5N04008854 171 35 61
88,9 x 76,1 1 10 5N04008876 160 54 61
108 x 76,1 1 5 5N040010876 210 54 76
108 x 88,9 1 4 5N040010888 199 61 76
