GAS SERIES
/
BALL VALVES FOR GAS
/
9701
BALL VALVES FOR GAS
9701

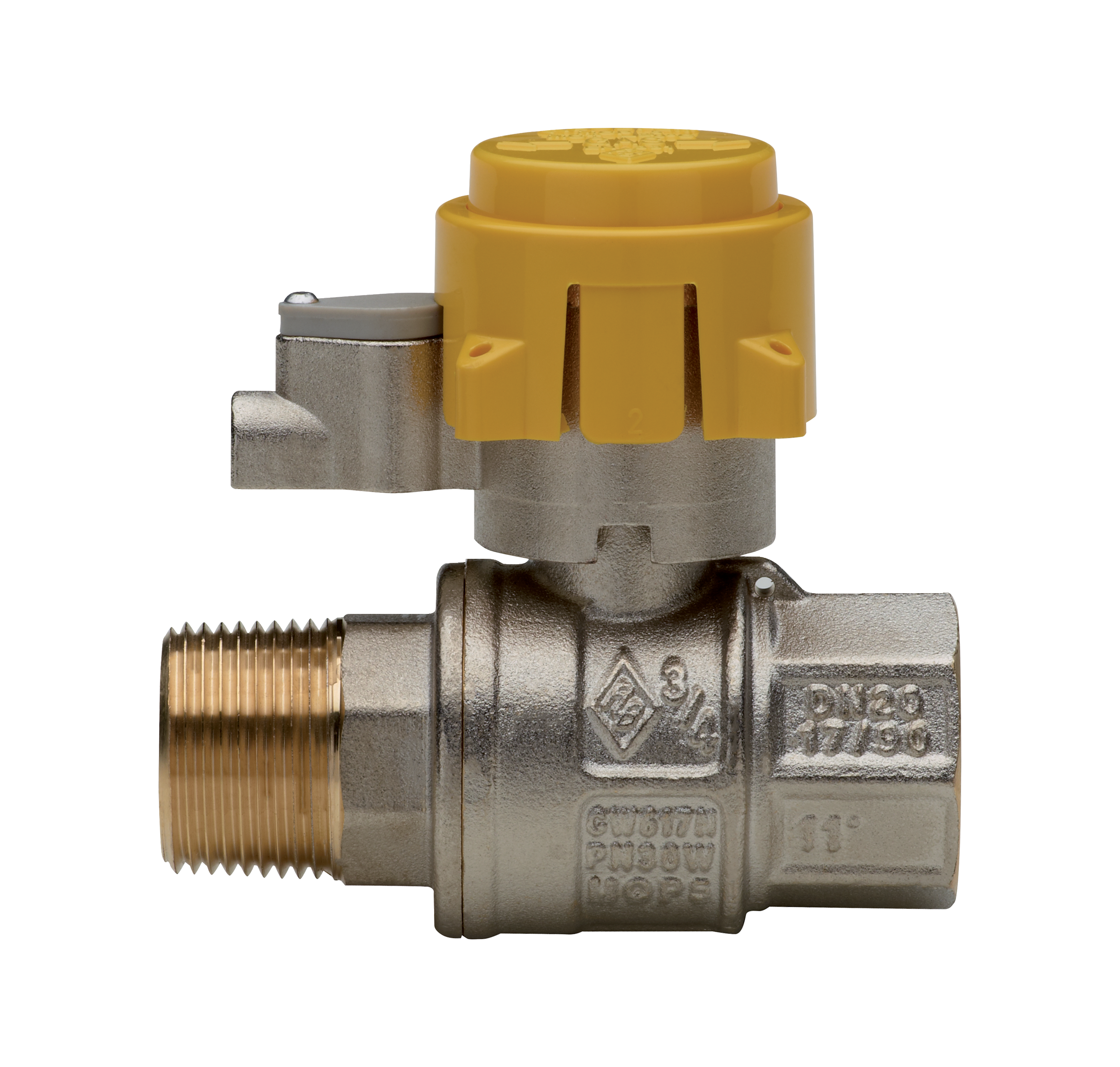

Full bore ball valve for gas rising pipe, M/F threaded, with security lock and protection cap.

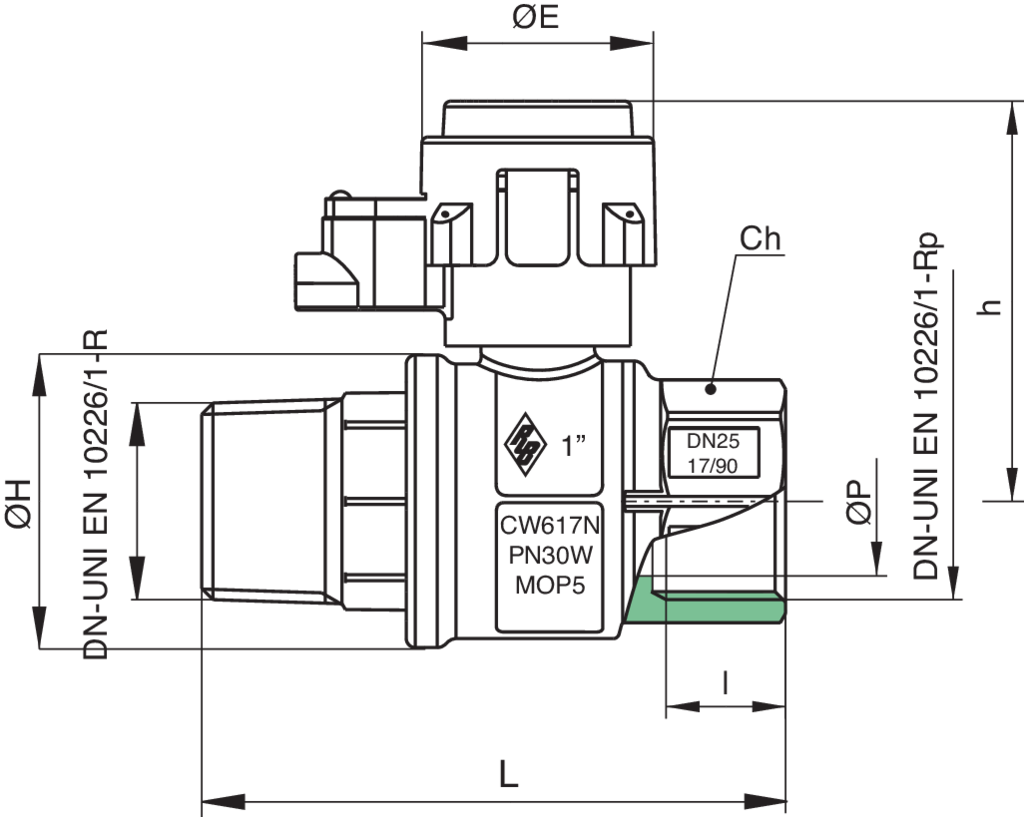

Technical specifications
SIZE
DN
BOX
MASTER BOX
CODE
ØP
ØE
I
Ch
ØH
L
h
MOP
Kg
1"
25
10
20
9701060000
25
39
19,1
38
49
94,5
67
5
0,67
1"1/4
32
6
12
9701070000
32
39
21,4
48
59
111
83
5
1,07
1"1/2
40
4
8
9701080000
40
39
21,4
54
73
119
89
5
1,58
2"
50
2
4
9701100000
50
39
25,7
67
87
141
99
5
2,18
Temperature range: -20°C +60°C.
