BALL VALVES FOR GAS

946 C

Ball valve for gas meter, with connection for meter bracket.

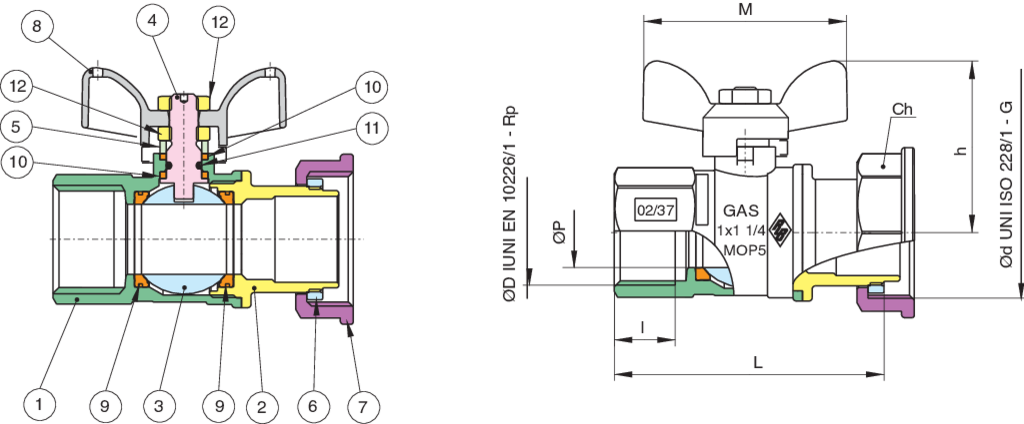

Technical specifications

Position	Part name	Material	N.° pieces
1	BODY	BRASS CW617N UNI EN 12165	1
2	END CONNECTION	BRASS CW617N UNI EN 12165	1
3	BALL	BRASS CW617N UNI EN 12165	1
4	STEM	BRASS CW614N UNI EN 12164	1
5	PACKING GLAND	BRASS CW614N UNI EN 12164	1
6	RING NUT	BRASS CW614N UNI EN 12164	1
7	NUT	BRASS CW617N UNI EN 12165	1
8	T-HANDLE	ALUMINIUM EN-AC 46100 EN 1706	1
9	BALL SEAT	PTFE	1
10	STEM SEAL/THRUST WASHER	PTFE	1
11	O-RING	NBR	1
12	NUT	STEEL 6/S	1

ØD x Ød	BOX	MASTER BOX	CODE	ØP	I	Ch	L	h	M	MOP	Kg
1/2" x 3/4"	25	50	946C260000	12	15	30	68	40,5	50	5	0,25
1/2" x 1"1/4"	25	50	946C790000	12	15	46	68	40,5	50	5	0,33
1" x 1"1/4	-	25	946E291000	22	19,1	46	82,5	52,5	64	5	0,53

Temperature range: -20°C +60°C.

The accessories, item 9602-96T0, are available.
