CATALOGUE
/
GAS SERIES
/
BALL VALVES FOR GAS
/
9080
BALL VALVES FOR GAS
9080

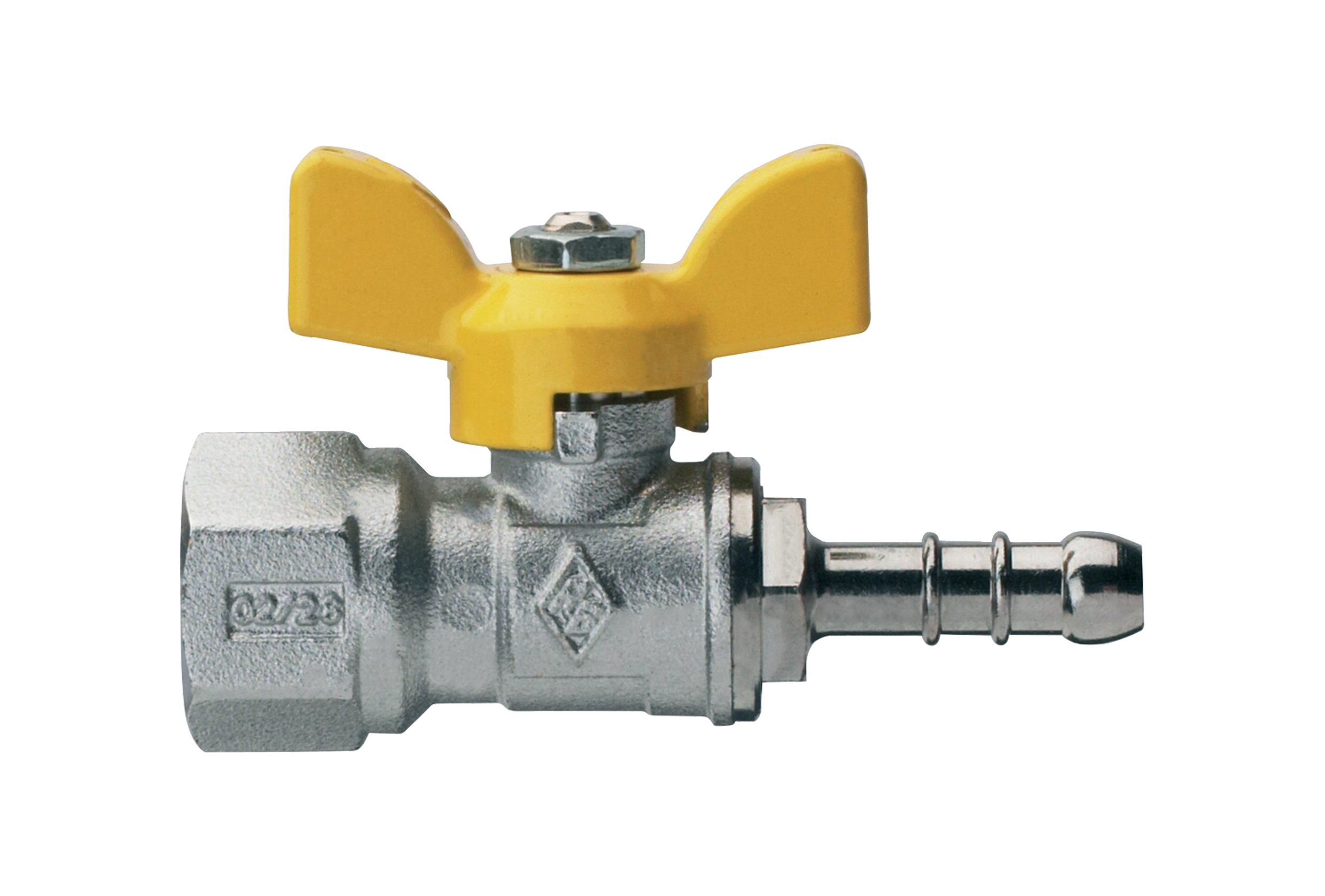

Ball valve for gas, female threaded and hose tail connection, with aluminium T-handle.

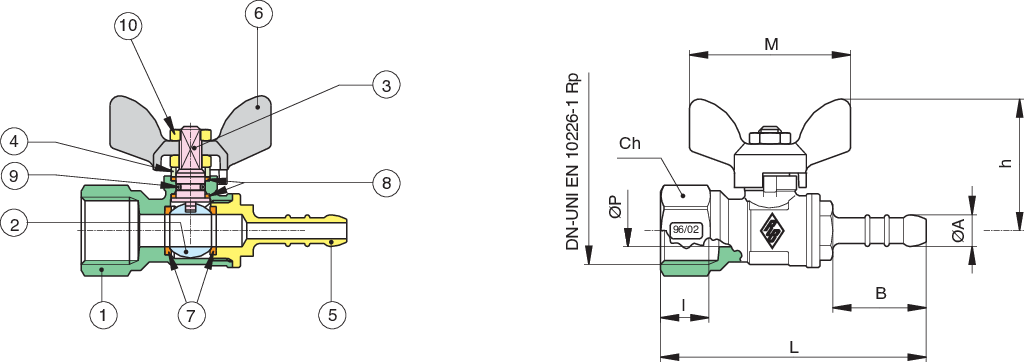

Technical specifications
Position
Part name
Material
N.° pieces
1
BODY
BRASS CW617N UNI EN 12465
1
2
BALL
BRASS CW614N UNI EN 12464
1
3
STEM
BRASS CW614N UNI EN 12464
1
4
PACKING GLAND
BRASS CW614N UNI EN 12464
1
5
HOSE TAIL
BRASS CW617N UNI EN 12465
1
6
T-HANDLE
ALUMINIUM EN-AC 46100 EN 1706
1
7
BALL SEAT
PTFE
2
8
STEM SEAL/THRUST WASHER
PTFE
2
9
O-RING
NBR
1
10
NUT
STEEL CL 04
2
SIZE
DN
BOX
MASTER BOX
CODE
ØP
I
B
L
ØA
Ch
h
M
MOP
Kg
1/2" x 8*
15
20
80
9080870000
10
15
29
82,5
9,8
25
42
50
5
0,15
1/2" x 13*
15
20
80
9080900000
10
15
44
97,5
14
25
42
50
5
0,16
Temperature range: -20°C +60°C.
* Hose tail according to UNI-CIG 7141-92.
Applications
Available media and videos
Catalog
Price list
Back to the catalogue
Related products / Accesories
9081
9083
9084
Slide 1 of 3.
