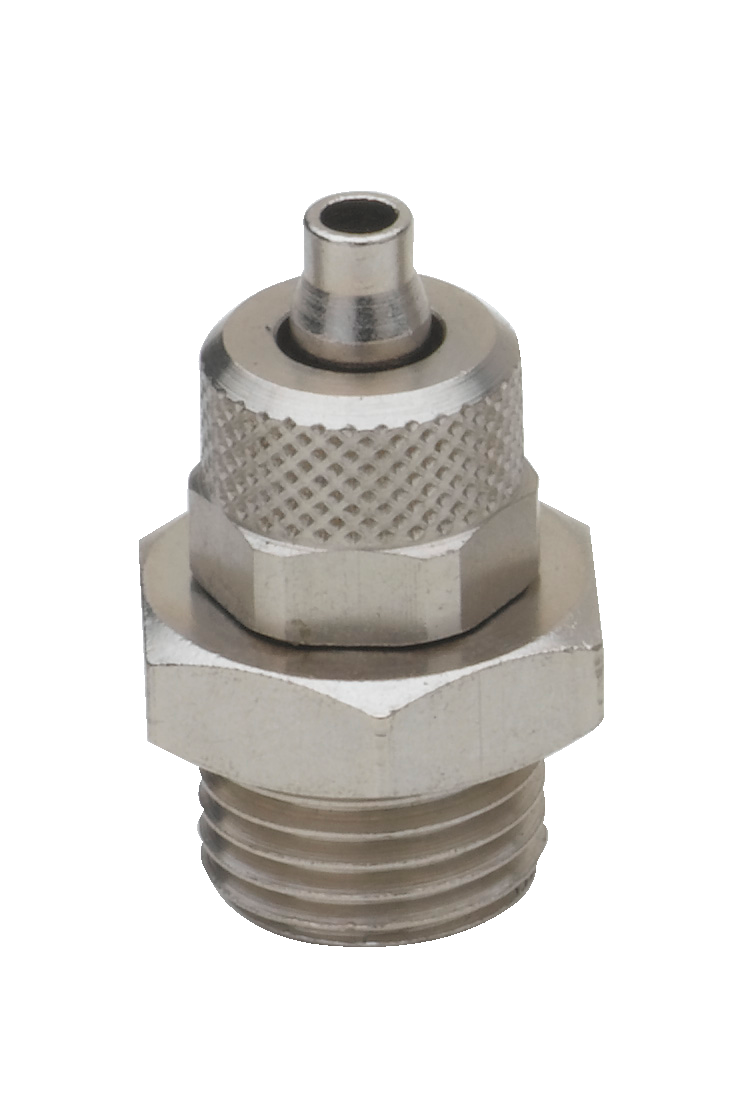

R 151 Z
FITTINGS
R 151 Z
Straight male parallel.

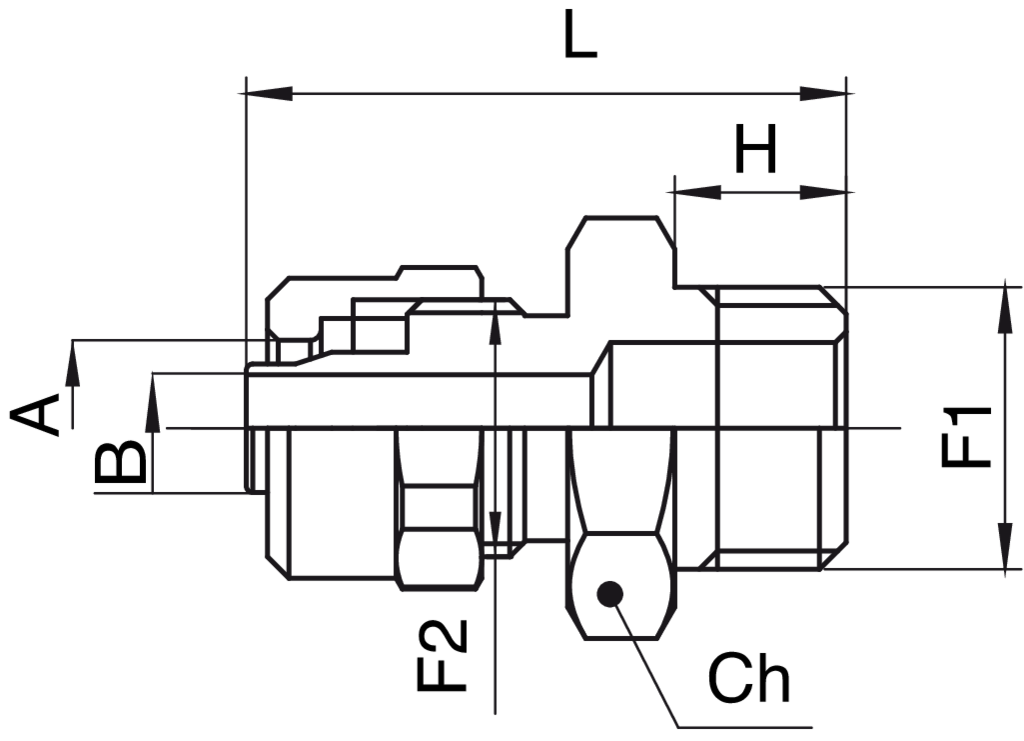

Technical specifications
F1 x A/B
DN
BOX
MASTER BOX
CODE
F2
H
Ch
L
M5 x 5/3
-
1000
6000
R 151 Z 5M 53
7 x 0,75
4
8
20
M5 x 6/4
-
1000
6000
R 151 Z 5M 64
8 x 0,75
4
8
21
M6 x 6/4
-
500
3000
R 151 Z 6M 64
8 x 0,75
5
8
22
1/8 x 6/4
-
300
1800
R 151 Z 18 64
10 x 1
6
14
25,5
1/8 x 8/6
-
320
1280
R 151 Z 18 86
12 x 1
6
14
25,5
1/8 x 10/8
-
300
1200
R 151 Z 18 108
14 x 1
6
14
27
1/4 x 6/4
-
250
1000
R 151 Z 14 64
10 x 1
8
17
28
1/4 x 8/6
-
250
1000
R 151 Z 14 86
12 x 1
8
17
28
1/4 x 10/8
-
100
400
R 151 Z 14 108
14 x 1
8
17
29,5
3/8 x 8/6
-
200
800
R 151 Z 38 86
12 x 1
9
19
29
3/8 x 10/8
-
185
740
R 151 Z 38 108
14 x 1
9
19
30,5
3/8 x 12/10
-
150
600
R 151 Z 38 12 10
16 x 1
9
19
32
