WATER VALVES

20D1

Full bore ball valve for water meter entry, M/F threaded, with anti-tampering T-handle and heptagonal-shaped stainless steel security nut, ball with automatic rinsing system.

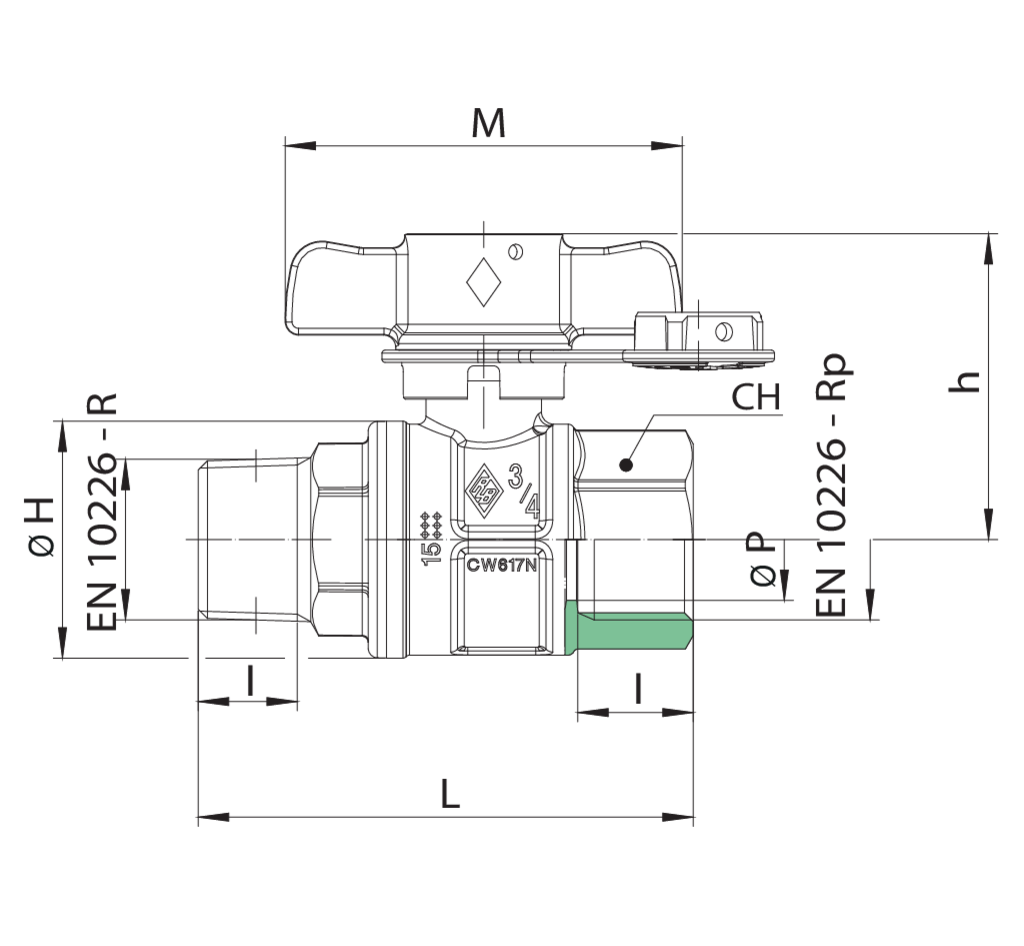

Technical specifications

SIZE	DN	BOX	MASTER BOX	CODE	ØP	I	L	ØH	Ch	M	h	Kv	PN	Kg
1/2"	15	15	60	20D1040001	15	15	72,5	33	27	55	41,5	16,3	64	0,29
3/4"	20	10	40	20D1050001	20	16,3	81,5	39	32	65	50	29,5	64	0,45
1"	25	10	20	20D1060001	25	19,1	94,5	49	38	65	54	43	64	0,67
