20D0
WATER VALVES

20D0

Made in Italy

Full bore ball valve for water meter entry, F/F threaded, with anti-tampering T-handle and heptagonal-shaped stainless steel security nut, ball with automatic rinsing system.

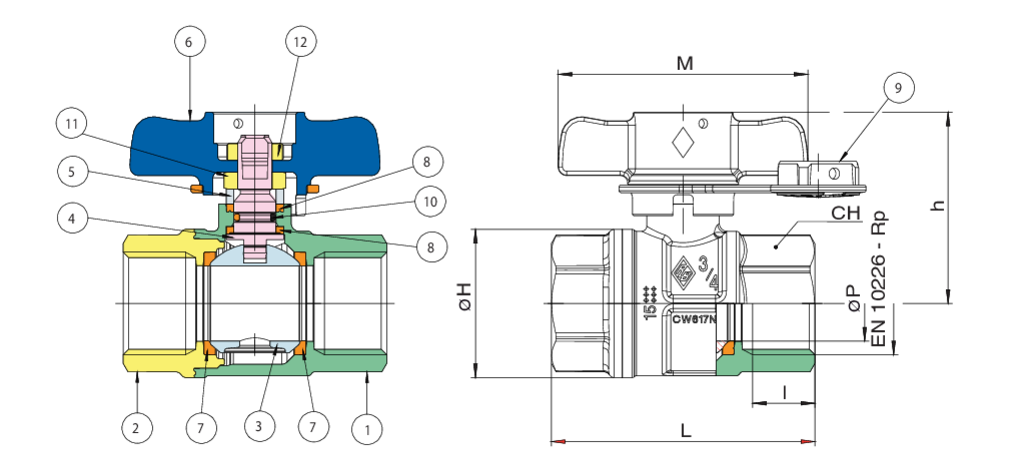

Technical specifications
Position Part name Material N.° pieces
1 BODY BRASS CW617N UNI EN 12420 1
2 END CONNECTION BRASS CW617N UNI EN 12420 1
3 BALL BRASS CW617N UNI EN 12420 1
4 STEM BRASS CW614N UNI EN12164-UNI EN12168 1
5 PACKING GLAND BRASS CW614N UNI EN12164-UNI EN12168 1
6 T-HANDLE BRASS CW617N UNI EN 12420 1
7 BALL SEAT PTFE 2
8 STEM SEAL/THRUST WASHER PTFE 2
9 TAP PE 1
10 O-RING NBR 1
11 NUT STEEL CL 04 UNI EN ISO898 1
12 HEPTAGONAL-SHAPED NUT STAINLESS STEEL AISI 430 1
SIZE DN BOX MASTER BOX CODE ØP I L ØH Ch M h Kv PN Kg
1/2" 15 15 60 20D0040001 15 15 62 33 27 55 41,5 16,3 64 0,27
3/4" 20 10 40 20D0050001 20 16,3 69 39 32 65 50 29,5 64 0,43
1" 25 10 20 20D0060001 25 19,1 83 49 38 65 54 43 64 0,63
