Full bore ball valve for water meter entry, M/F threaded, with anti-tampering T-handle and stainless steel security nut, ball with automatic rinsing system.
Technical specifications

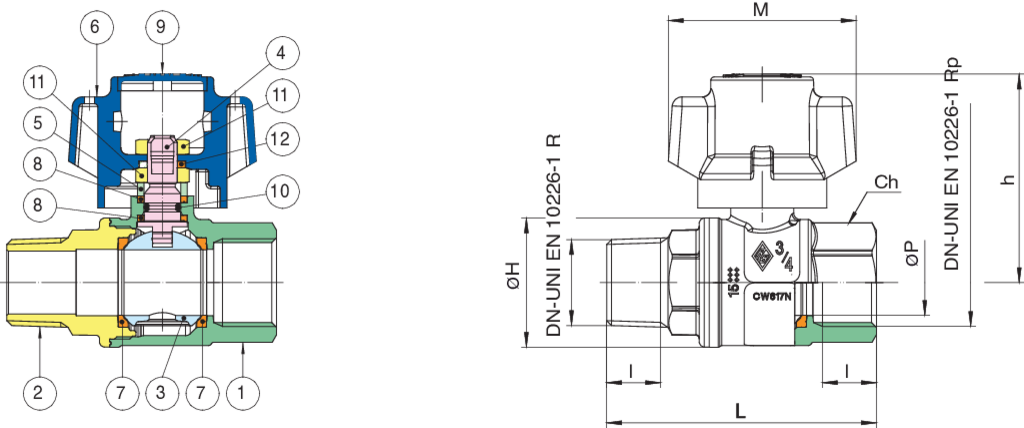

Drawing
Materials
POSITION
PART NAME
MATERIAL
N.° PIECES
1
BODY
BRASS CW617N UNI EN 12420
1
2
END CONNECTION
BRASS CW617N UNI EN 12420
1
3
BALL
BRASS CW617N UNI EN 12420
1
4
STEM
BRASS CW614N UNI EN 12164
1
5
PACKING GLAND
BRASS CW614N UNI EN 12164
1
6
T-HANDLE
PA6
1
7
BALL SEAT
P.T.F.E.
2
8
STEM SEAL/THRUST WASHER
P.T.F.E.
2
9
TAP
PE
1
10
O-RING
NBR
1
11
NUT
STEEL CL 04
2
12
WASHER
STEEL
1
Table
CODE
SIZE
DN
UNITS PER BOX
MASTER BOX
ØP
I
L
ØH
CH
M
H
KV
PN
KG
2091040000
1/2”
15
20
60
15
15
72.5
33
27
57
55.5
16.3
64
0.28
2091040001
1/2”
15
20
60
15
15
72.5
33
27
57
55.5
16.3
64
0.28
2091050000
3/4”
20
10
40
20
16.3
81.5
39
32
57
63
29.5
64
0.39
2091050001
3/4”
20
10
40
20
16.3
81.5
39
32
57
63
29.5
64
0.39
2091060000
1”
25
10
20
25
19.1
94.5
49
38
57
66.5
43
64
0.62
2091060001
1”
25
10
20
25
19.1
94.5
49
38
57
66.5
43
64
0.62
Notes

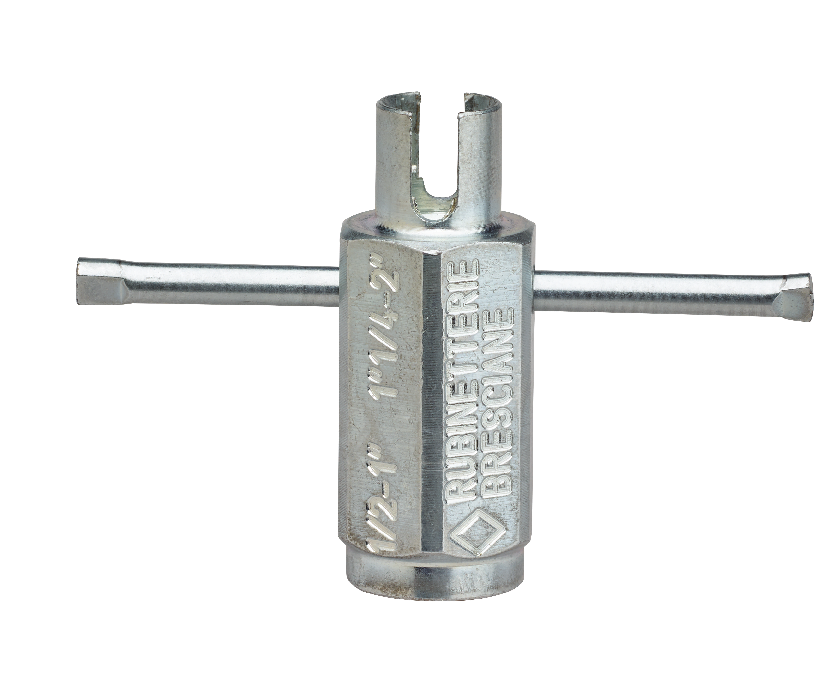

The accessories, items 6423-5809000RE1-6740, are available. See at pages 312-313.
