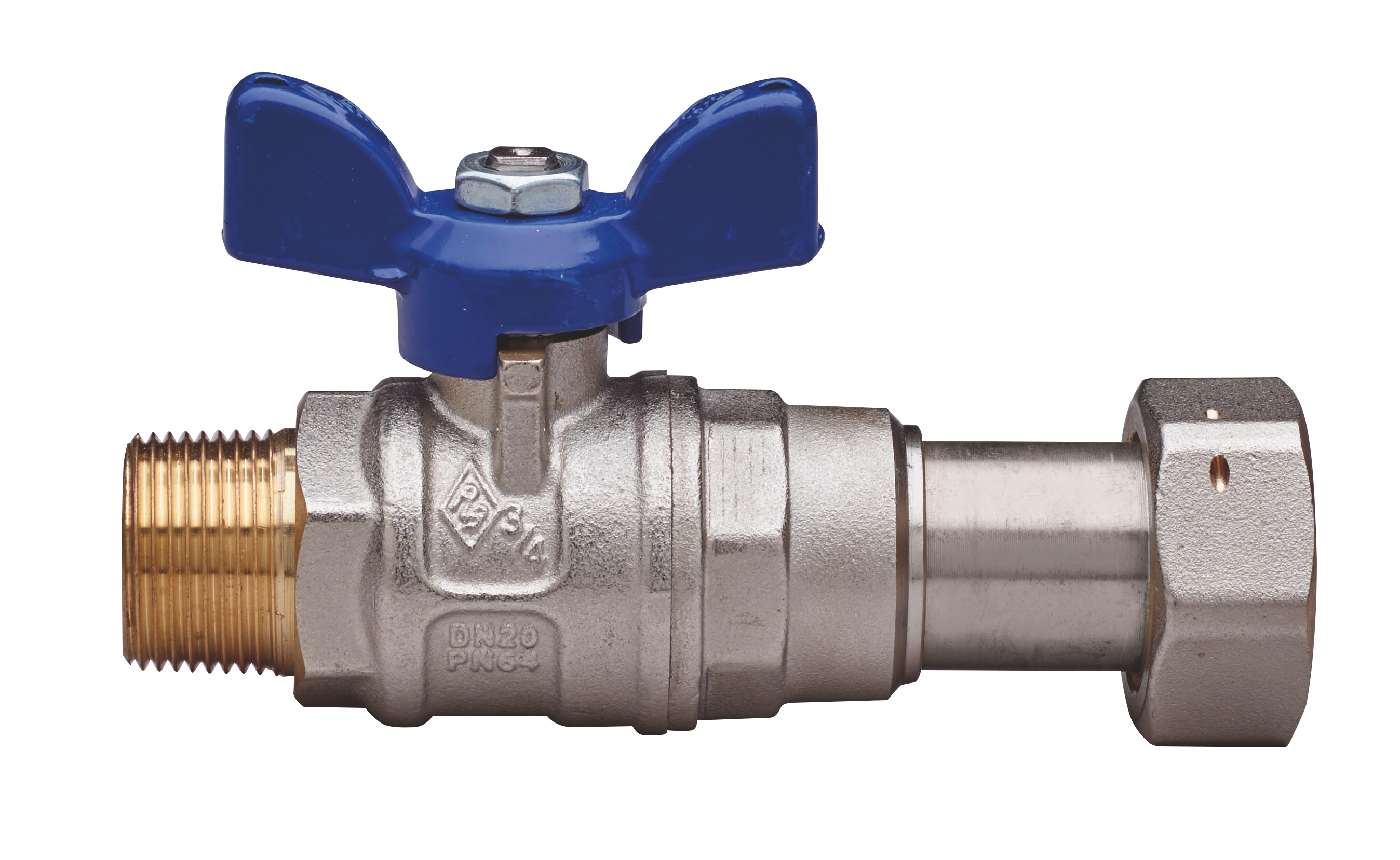

Water full bore ball valve with meter’s entrance, thread male/telescopic fitting, aluminium butterfly handle and ball with automatic rinse system.
Technical specifications

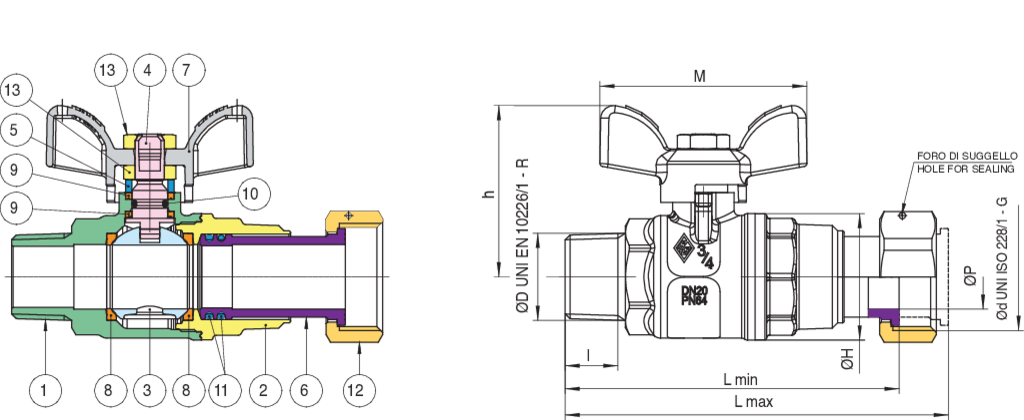

Drawing
Materials
POSITION
PART NAME
MATERIAL
N.° PIECES
1
BODY
BRASS CW617N UNI EN 12420
1
2
END CONNECTION
BRASS CW617N UNI EN 12420
1
3
BALL
BRASS CW617N UNI EN 12420
1
4
STEM
BRASS CW614N UNI EN 12164
1
5
PACKING GLAND
BRASS CW614N UNI EN 12164
1
6
UNION TAIL
BRASS CW614N UNI EN 12164
1
7
T-HANDLE
ALIMINIUM EN-AC 46100
1
8
BALL SEAT
P.T.F.E.
2
9
STEM SEAL/THRUST WASHER
P.T.F.E.
2
10
O-RING
NBR
1
11
O-RING
NBR
2
12
NUT
BRASS CW617N UNI EN 12420
1
13
NUT
STEEL CL 04
2
Table
CODE
UNITS PER BOX
MASTER BOX
ØD
ØD
ØP
I
CH
ØH
L MIN MA
H
M
KV
PN
KG
2026260000
10
40
1
1
15
15
25
33
91.5
105
41
50
16.3
64
2026580000
10
20
3
3
20
16.3
29
39
103
118.5
53
64
29.5
64
