600301
600301
Brass butterfly valve full bore, M/F threaded with throttling.
Technical specifications

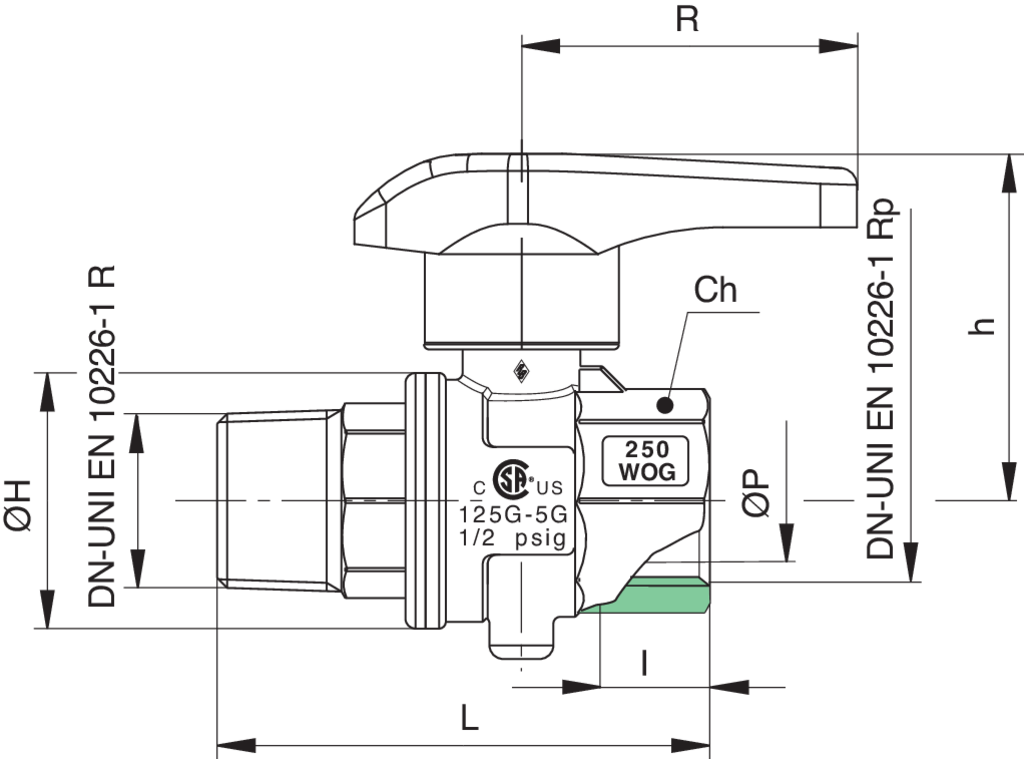

Drawing
Table
CODE
SIZE
DN
UNITS PER BOX
MASTER BOX
ØP
I
CH
ØH
L
H
R
KV
PN
KG
60030104
1/2”
15
20
80
16
15
25
31
63.5
48
50
8.5
16
0.2
60030105
3/4”
20
10
40
21
16.3
31
38
73.2
51.5
50
17
16
0.28
60030106
1”
25
10
20
27
19.1
38
46
82.5
55
50
27
16
0.41
Notes
Temperature range: -10°C +130°C.
