600300
600300
Brass butterfly valve full bore M/F threaded with throttling.
Technical specifications

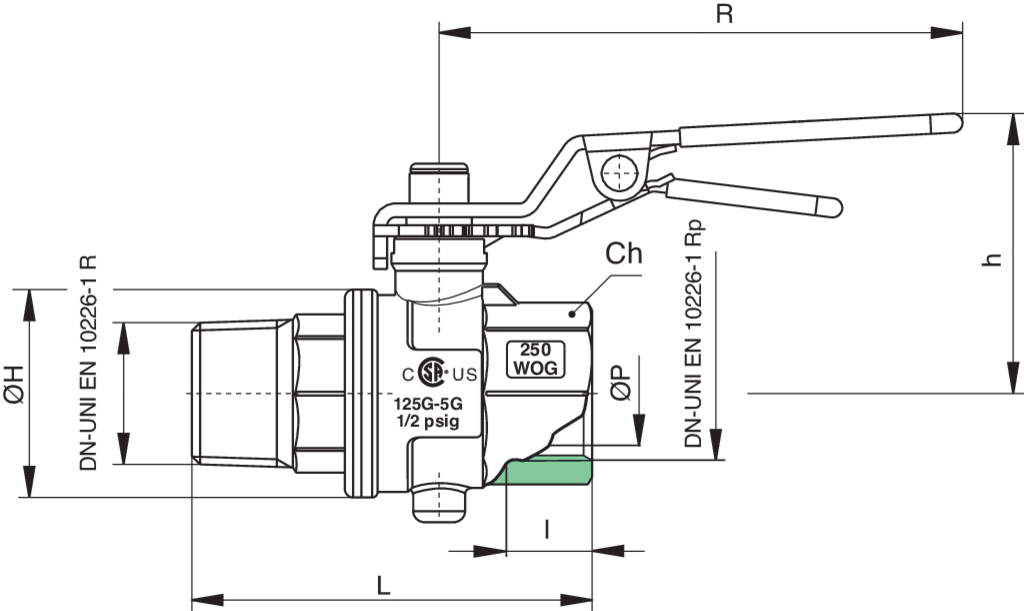

Drawing
Table
CODE
SIZE
DN
UNITS PER BOX
MASTER BOX
ØP
I
CH
ØH
L
H
R
KV
PN
KG
60030004
1/2”
15
20
80
16
15
25
31
63.5
46.5
95
8.5
16
0.22
60030005
3/4”
20
10
40
21
16.3
31
38
73
50.5
95
17
16
0.3
60030006
1”
25
10
20
27
19.1
38
46
82.5
54
95
27
16
0.44
60030007
1”1/4
32
6
12
34
21.4
48
55.5
100
71.5
120
50
16
0.81
60030008
1”1/2
40
4
8
41
21.4
54
65.5
104
76.5
120
82.5
16
1.02
60030010
2”
50
2
4
52
25.7
67
77.5
119.5
86.5
150
136.5
16
1.53
Notes
Temperature range: -10°C +130°C.
Applications
Available media and videos
210-RB-SP.pdf
210-RB.pdf
