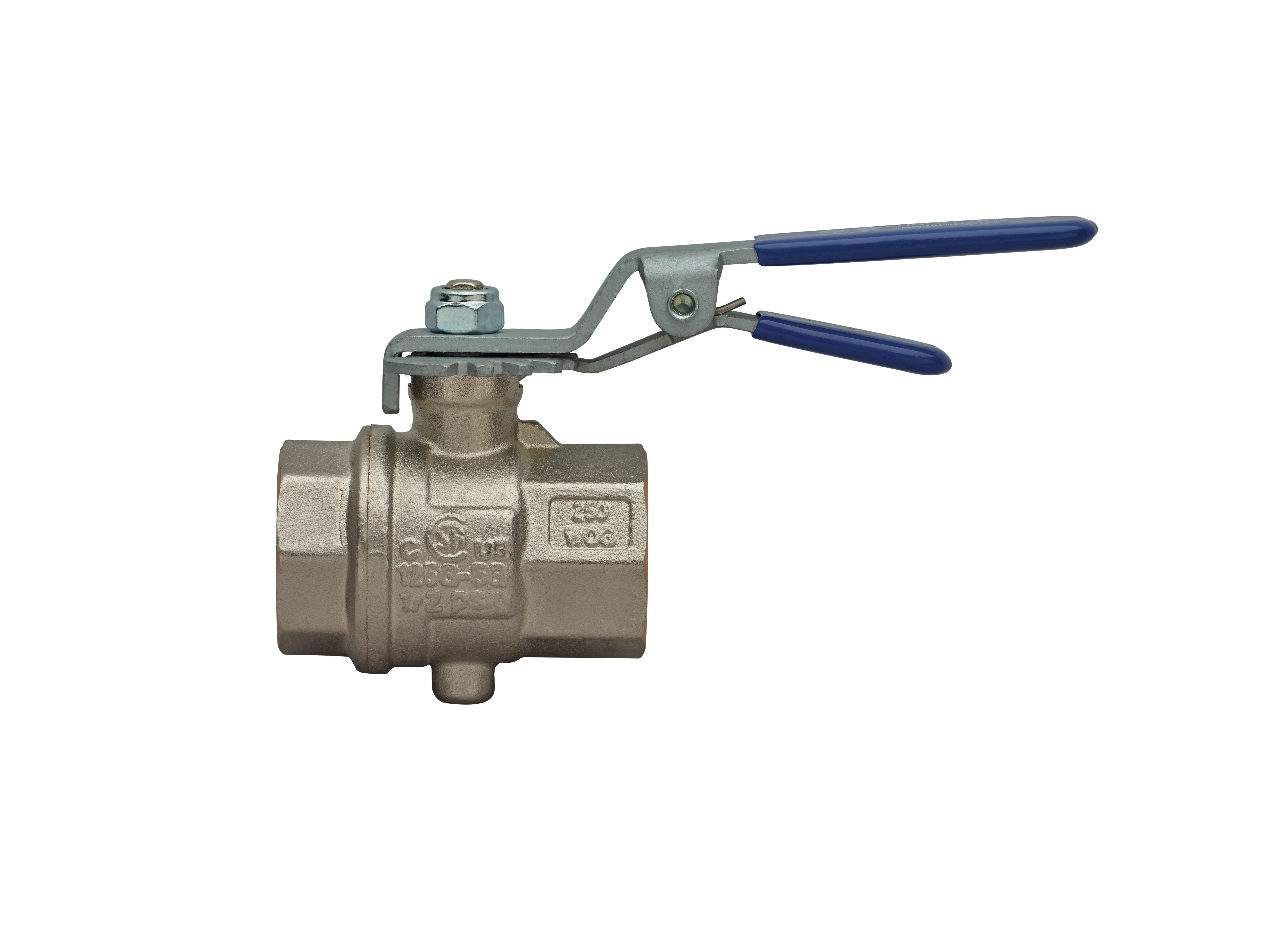

Brass butterfly valve full bore, F/F threaded with throttling.
Technical specifications
Drawing
Materials
POSITION
PART NAME
MATERIAL
N.° PIECES
1
BODY
BRASS CW617N UNI EN 12165
1
2
END CONNECTION
BRASS CW617N UNI EN 12165
1
3
STEM
BRASS CW614N UNI EN 12164
1
4
WASHER
BRASS CW614N UNI EN 12164
1
5
LOCK PIN
STEEL
1
6
SPRING
HARMONIC STEEL
1
7
ANTIFRICTION SEAT
PTFE CARICATO GRAFITE
1
8
HANDLE
STEEL DD11 UNI EN 10111
1
9
HANDLE
STEEL UNI EN 10111
1
10
HALF TURN STOP
STEEL UNI EN 10111
1
11
STEM SEAL
PTFE
1
12
SEAT
EPDM
1
13
NUT
STEEL CL 04
1
14
DISC
PEI (ULTEM 1000)
1
Table
CODE
SIZE
DN
UNITS PER BOX
MASTER BOX
ØP
I
CH
ØH
L
H
R
KV
PN
KG
60000004
1/2”
15
20
80
16
15
25
31
48.5
46.5
95
8.5
16
0.19
60000005
3/4”
20
10
40
21
16.3
31
38
56
50.5
95
17
16
0.25
60000006
1”
25
10
20
27
19.1
38
46
64
54
95
27
16
0.36
60000007
1”1/4
32
6
12
34
21.4
48
55.5
76
71.5
120
50
16
0.67
60000008
1”1/2
40
4
8
41
21.4
54
65.5
82
76.5
120
82.5
16
0.88
60000010
2”
50
2
4
52
25.7
67
77.5
93
86.5
150
136.5
16
1.31
60000012
2”1/2
65
2
4
65
30.2
90
102
112
121
205
240
16
3.06
60000014
3”
80
-
4
80
33.3
105
122
129.5
131.5
205
340
16
4.67
60000018
4”
100
-
2
103
39.3
130
145
146
145
205
550
16
6.29
Notes
Temperature range: -10°C +130°C.
