2721
2721

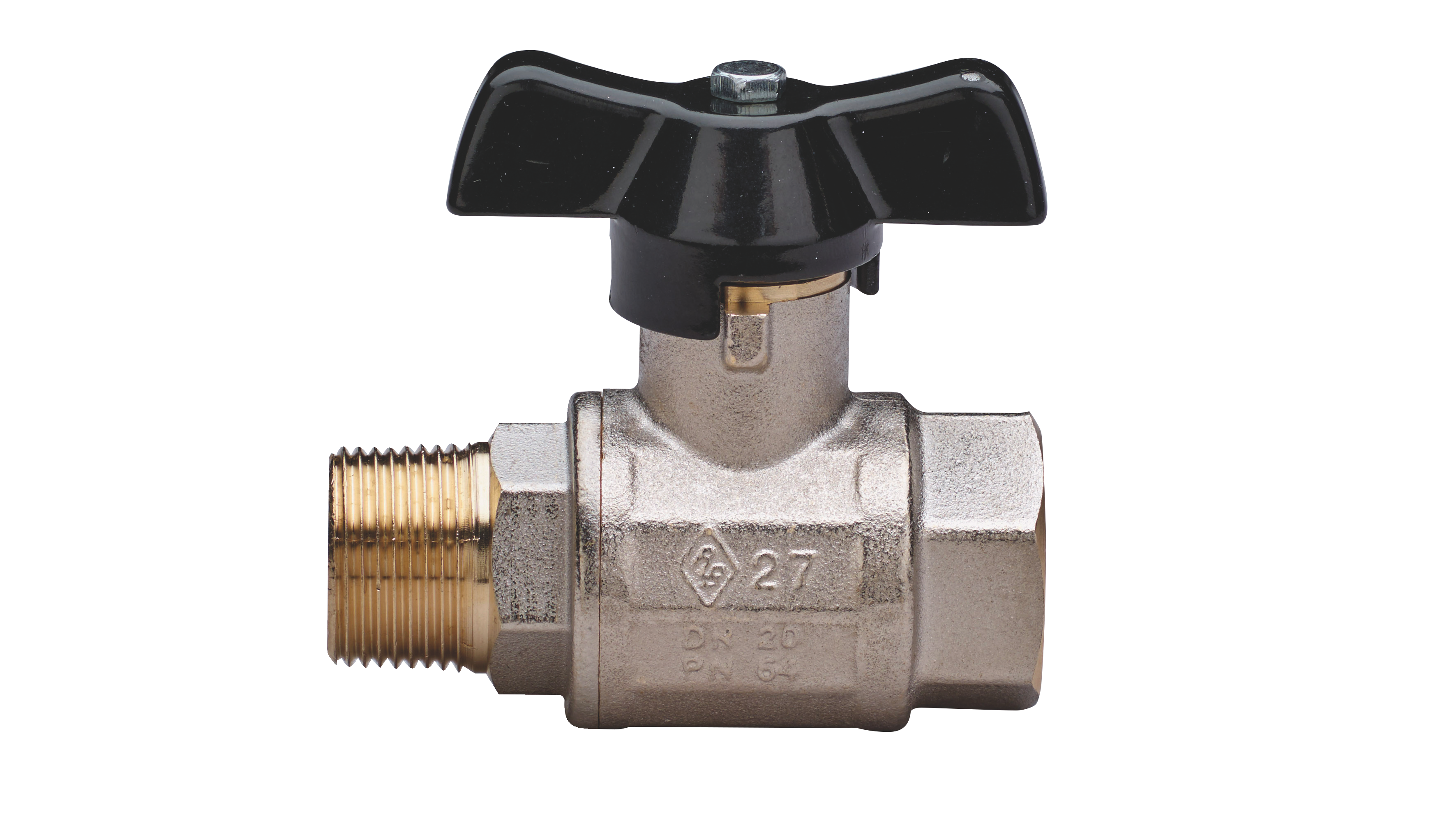

Full bore ball valve, M/F threaded, with aluminium T-handle.
Technical specifications

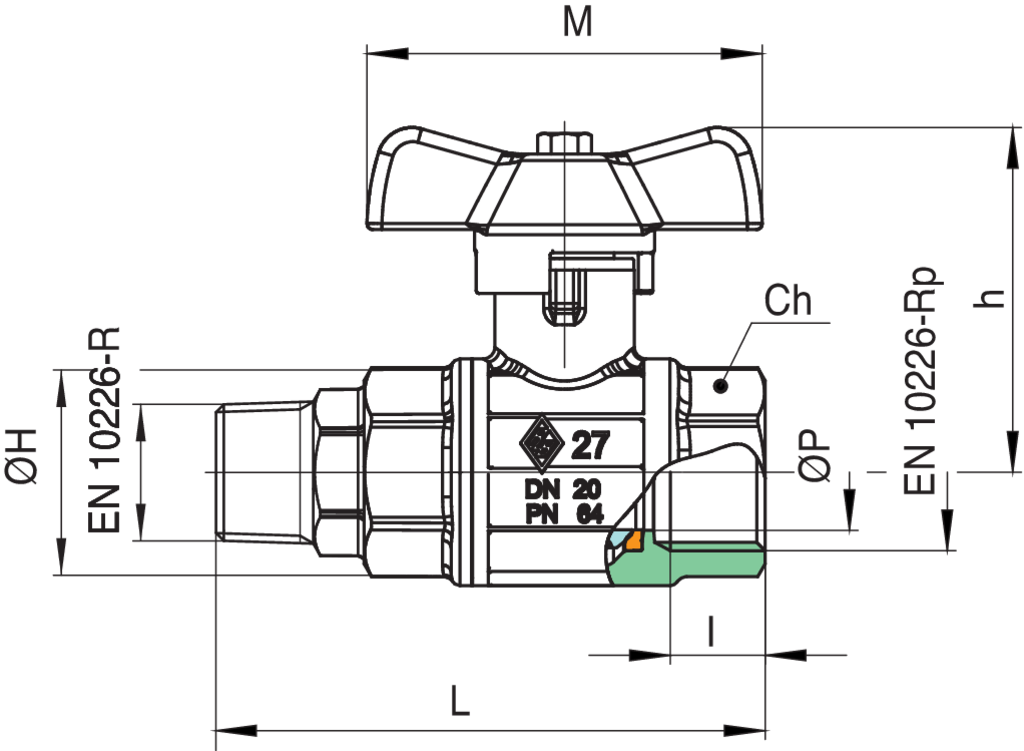

Drawing
Table
CODE
SIZE
DN
UNITS PER BOX
MASTER BOX
ØP
I
L
ØH
CH
M
H
KV
PN
KG
2721020000
1/4”
8
20
80
10
11
62
28
22
52
46.5
5.4
64
0.22
2721030000
3/8”
10
20
80
10
11.4
61.5
28
22
52
46.5
6
64
0.22
2721040000
1/2”
15
20
40
15
15
72.5
33
27
52
48.5
16.3
64
0.3
2721050000
3/4”
20
10
20
20
16.3
81.5
39
32
68
59
29.5
64
0.45
2721060000
1”
25
10
20
25
19.1
94.5
49
38
68
63
43
64
0.69
Notes
Temperature range: -20°C +160°C.
