Technical specifications

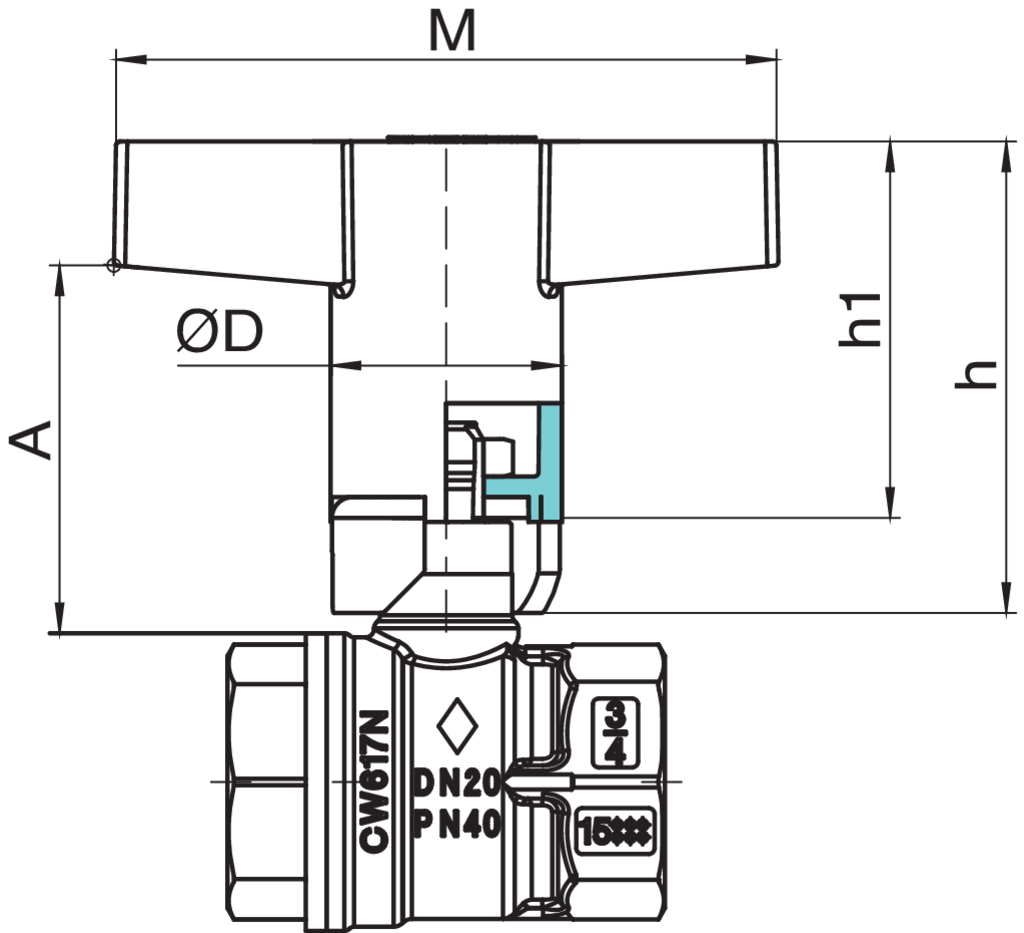

Drawing
Table
SIZE DN UNITS PER BOX MASTER BOX CODE ØD H H1 M A PN KG
1/2” 15 25 50 1530040000 28 55 45.5 80 41 50 0.14
3/4” 20 20 40 1530050000 28 57 45.5 80 45 40 0.24
1” 25 15 30 1530060000 28 57 45.5 80 43.5 40 0.37
1”1/4 32 6 12 1530070000 38 82.3 67.5 120 64 40 0.62
1”1/2 40 4 8 1530080000 38 82.3 67.5 120 63.5 40 0.91
2” 50 2 4 1530100000 38 82.3 67.5 120 66.5 40 1.55
Notes
Thermometer available artt. RI761-762-763-764-765-766-767-768 page 315.
