1520
1520

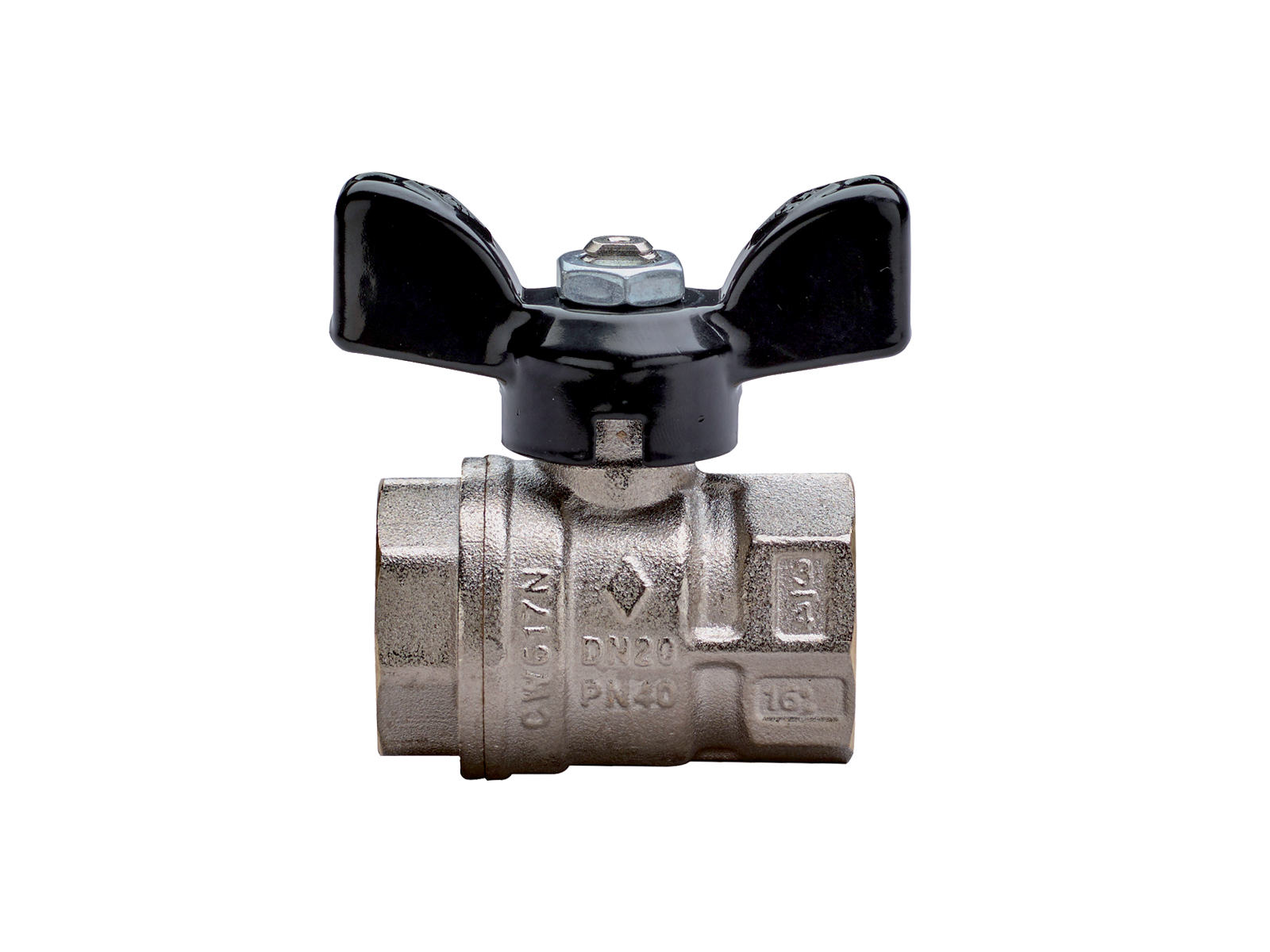

Full bore ball valve, F/F threaded, with aluminium T-handle.
Technical specifications

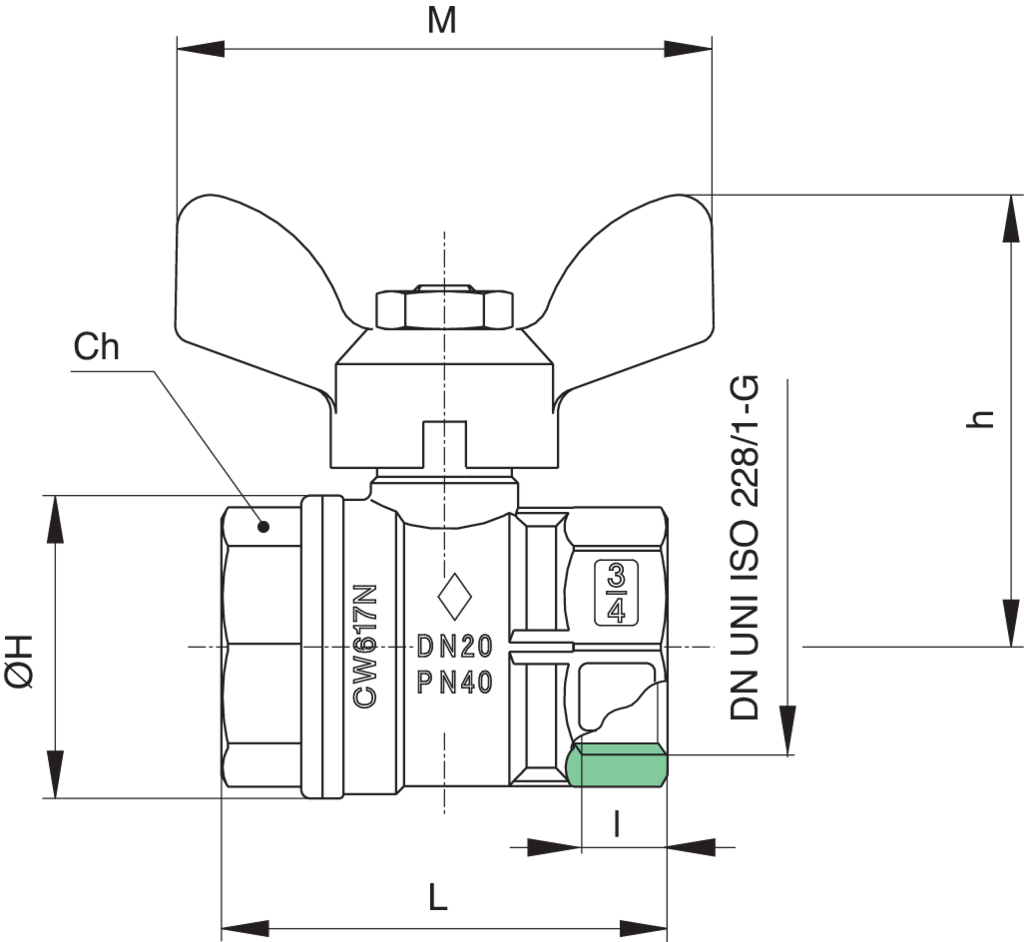

Drawing
Table
SIZE
DN
UNITS PER BOX
MASTER BOX
CODE
I
L
ØH
CH
M
H
KV
PN
KG
1/2”
15
20
80
1520040000
12
47.5
30
25
50
39.5
15.7
50
0.14
3/4”
20
10
40
1520050000
12
53
36
31
64
50.5
28
40
0.23
1”
25
10
20
1520060000
14.5
65.5
43.5
38
64
53
41.5
40
0.35
1/4”
8
20
80
1720020000
11
51.5
23
20
50
37.5
5.4
64
0.14
3/8”
10
20
80
1720030000
11.4
51.5
23
20
50
37.5
6
64
0.12
Notes
Cover available art. 6670 page 309.
