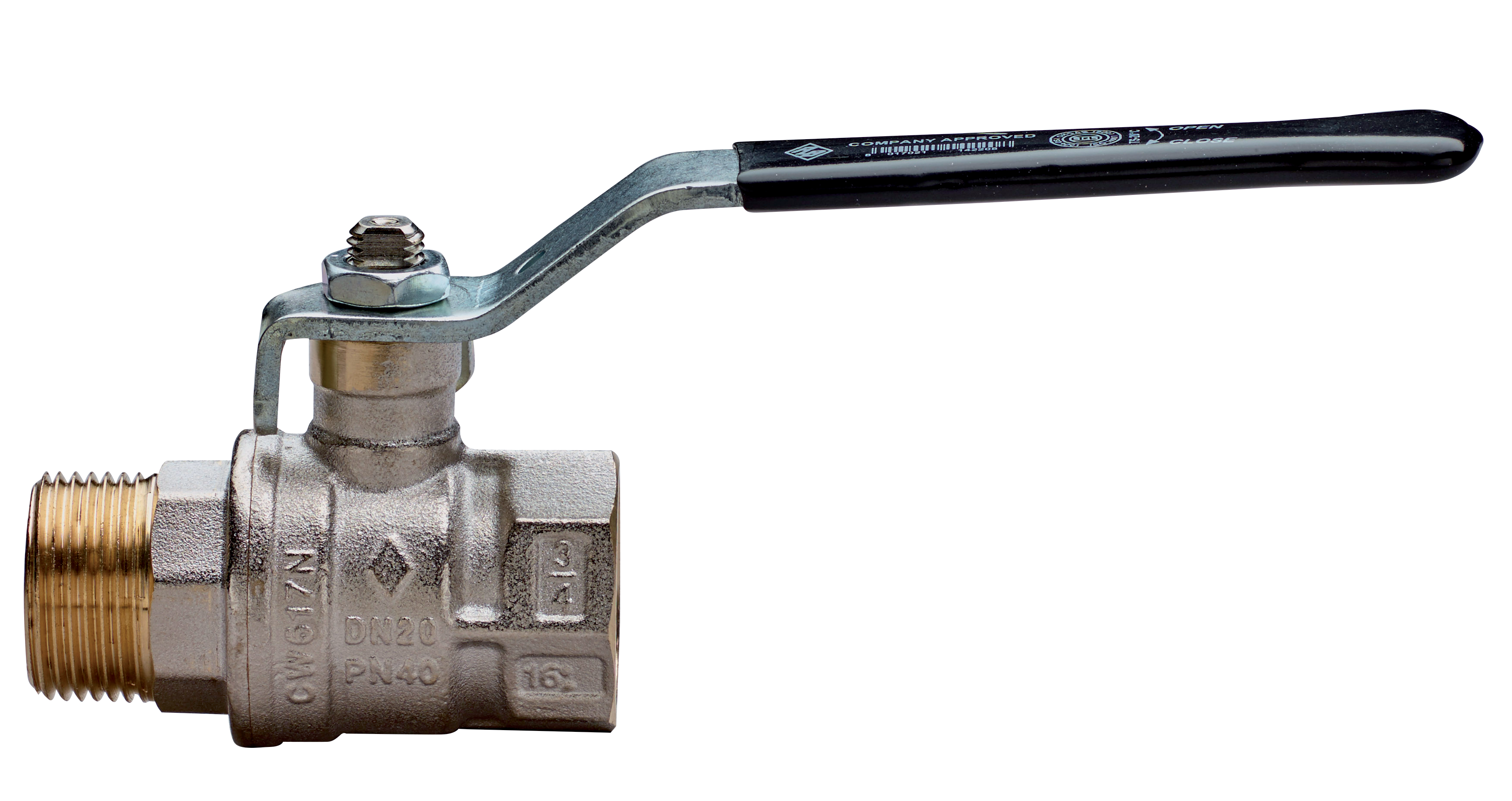

Technical specifications

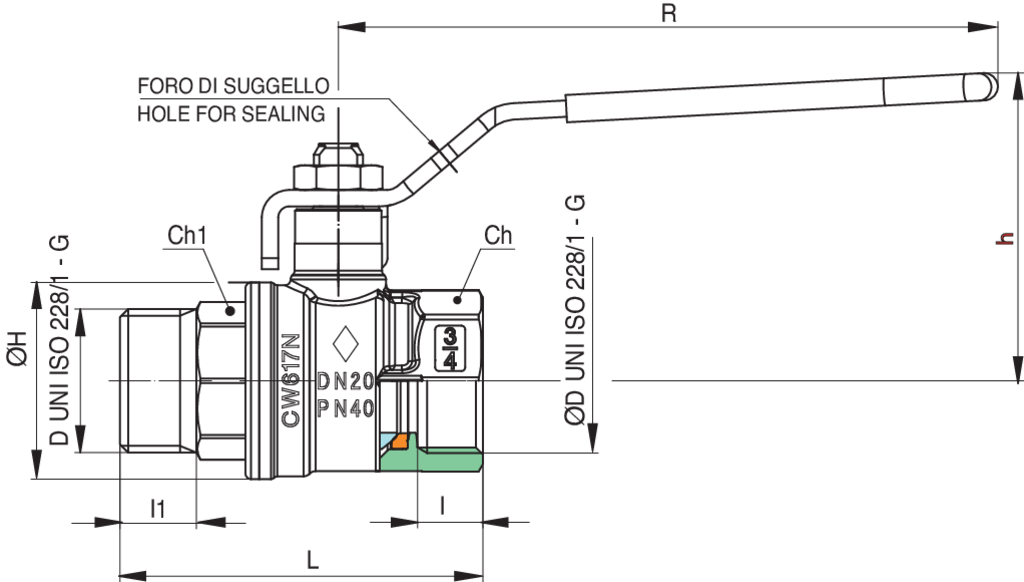

Drawing
Table
SIZE DN UNITS PER BOX MASTER BOX CODE I I1 L ØH CH R H KV PN KG
1/2 ” 15 20 80 1511040000 12 13 59 30 25 96 45 15.7 50 0.18
3/4” 20 10 40 1511050000 12 14 66.5 36 31 121 56.5 28 40 0.3
1” 25 10 20 1511060000 14.5 15 77.7 43.5 38 121 59 41.5 40 0.43
1”1/4 32 6 12 1511070000 16 17 91.2 53 48 151 72.5 84.6 40 0.75
1”1/2 40 4 8 1511080000 18 18 104.7 65 54 151 78.5 218.5 40 1.07
2” 50 2 4 1511100000 19 22 121 80 67 160 91.5 251.5 40 1.7
1/4” 8 2 2 1711020000 11 - 59 23 20 95 43 5.4 64 0.15
3/8” 10 20 80 1711030000 11.4 - 59.5 23 20 95 43 6 64 0.15
2”1/2 65 2 4 1711120000 30.2 30.7 175 111 90 205 122 540 25 4.14
3” 80 0 4 1711140000 33.3 33.3 203.5 136 105 205 133 873 25 6.36
4” 100 0 2 1711180000 39.3 39.3 250 166 130 260 166 1390 25 11.88
Notes
Temperature range: -20°C +160°C
