1628

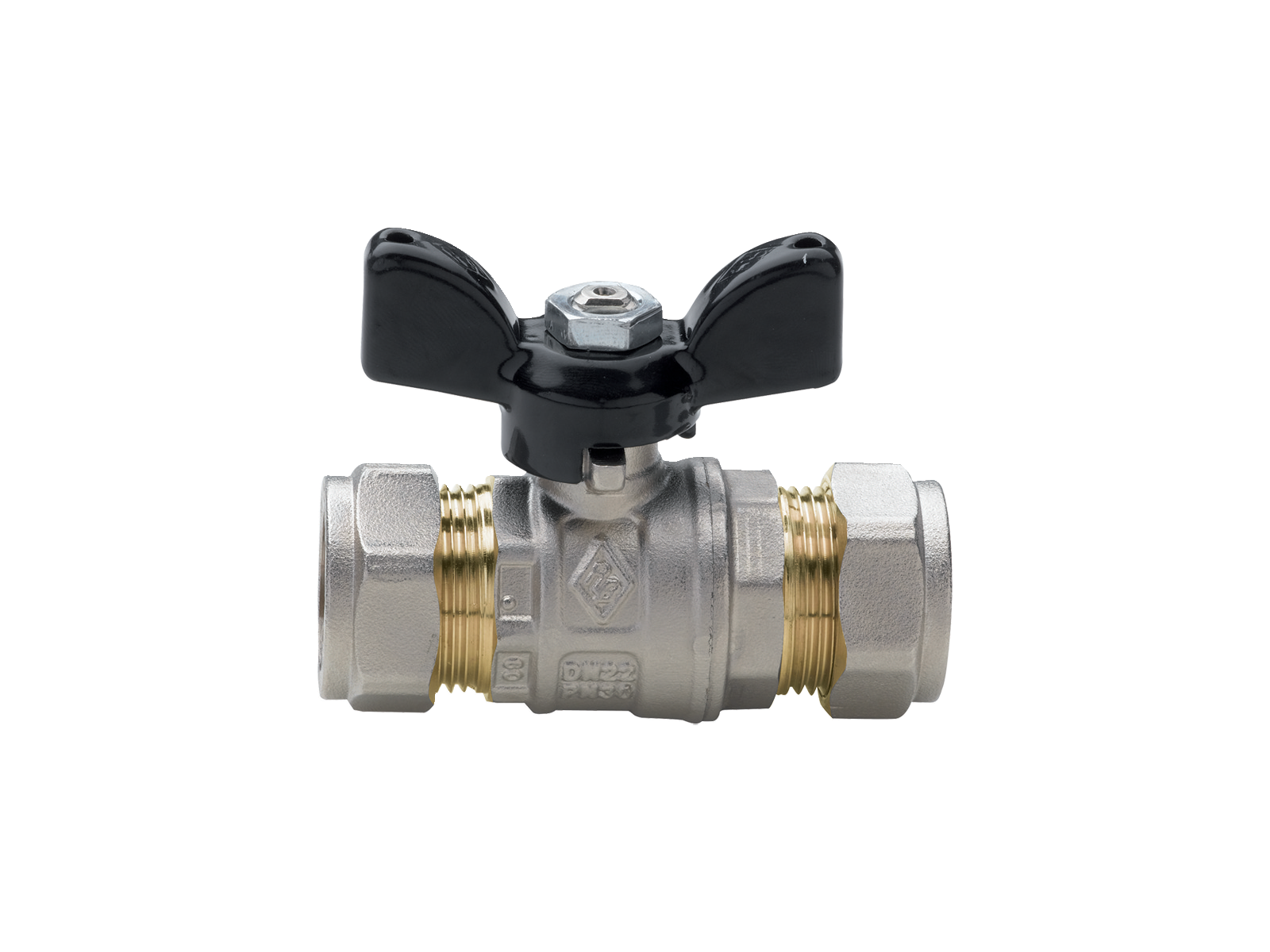

Full bore ball valve, with copper pipe end connections and aluminium T-handle.

Technical specifications

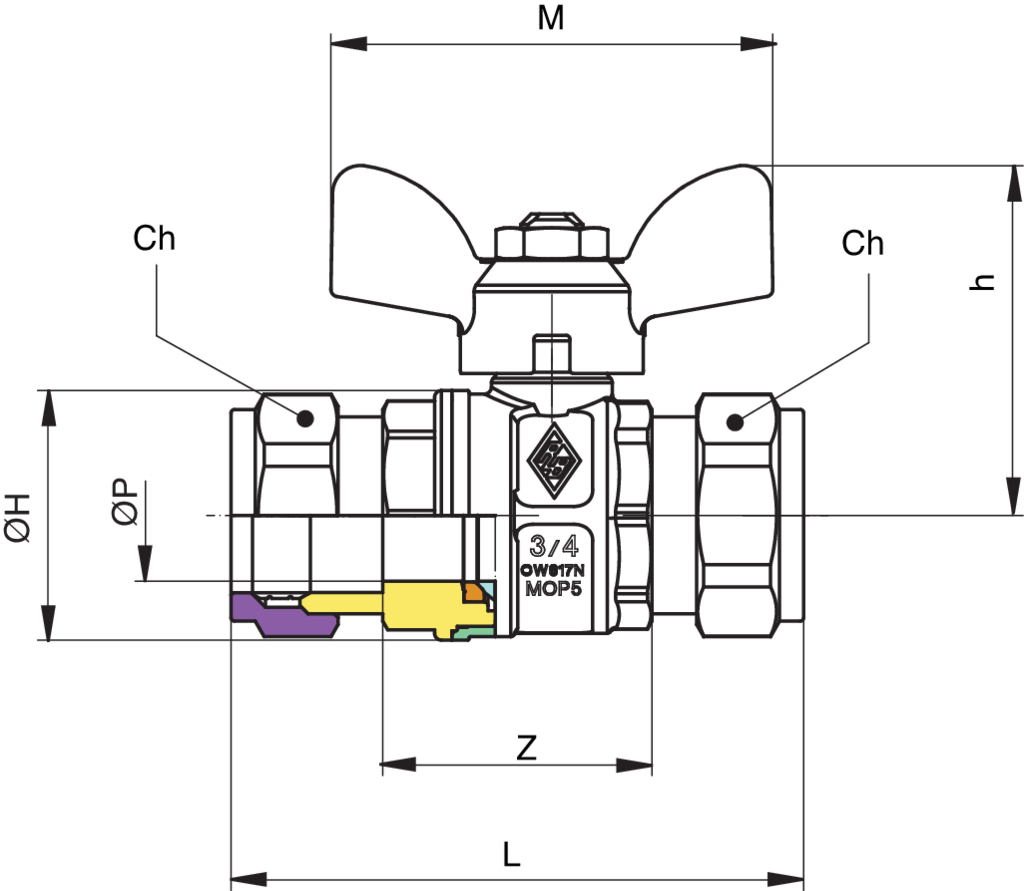

Drawing

Table

CODE	DN	UNITS PER BOX	MASTER BOX	ØP	Z	CH	ØH	L	H	M	KV	PN	KG
1628040000	15	20	80	14	39	24	30	76	45.6	50	16.3	30	0.23
1628050000	22	10	40	19	39	32	36	84	57	64	29.5	30	0.38
1628060000	28	10	20	25	47.25	38	43.5	93.2	59	64	43	30	0.54

Notes

Cover available art. 6670 page 297.

Applications
