1618
1618

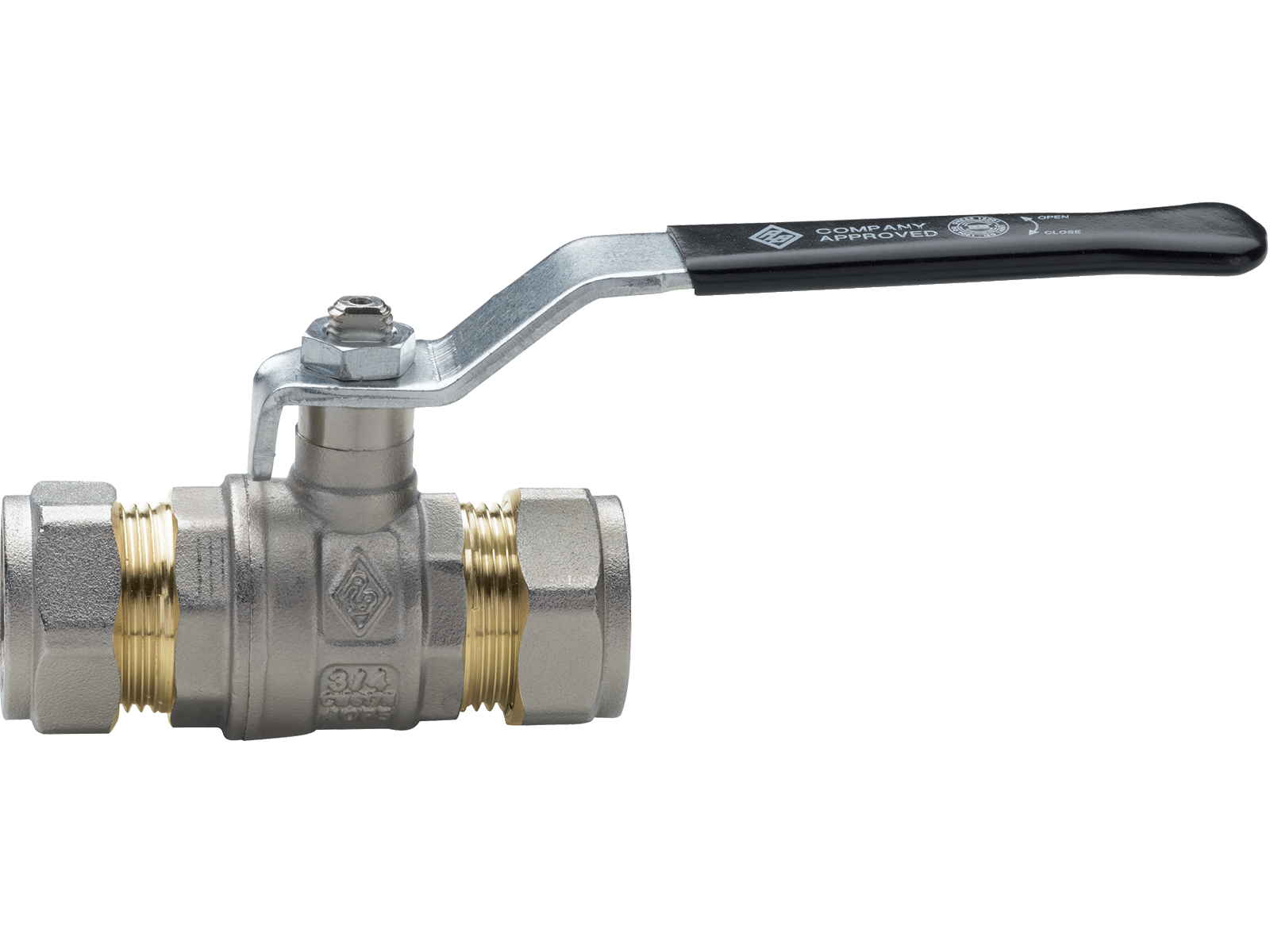

Full bore ball valve, with copper pipe end connections and steel handle.
Technical specifications

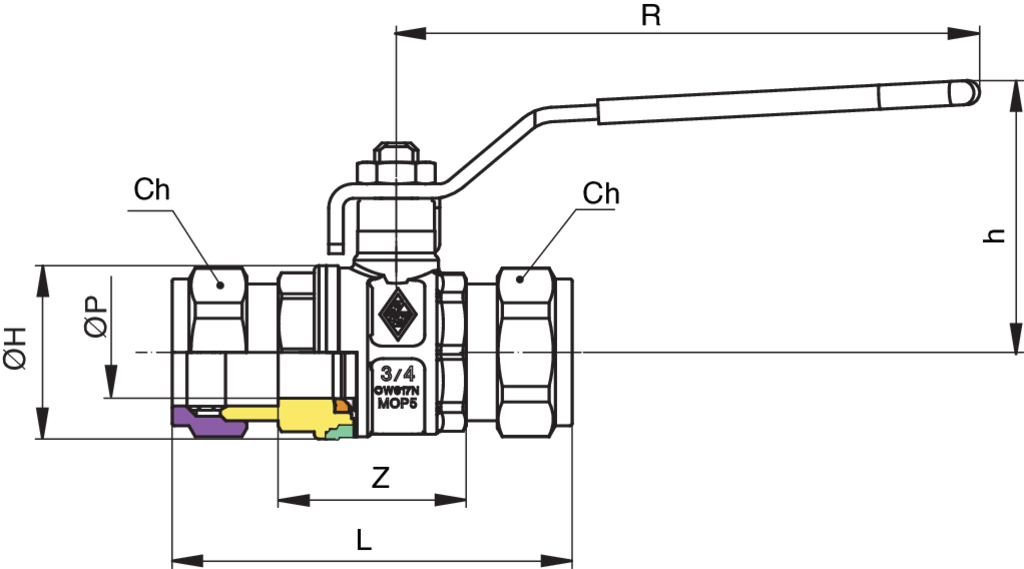

Drawing
Table
CODE
DN
UNITS PER BOX
MASTER BOX
ØP
Z
CH
ØH
L
H
R
KV
PN
KG
1618040000
15
45
90
14
39
24
30
76
45.6
96
16.3
30
0.23
1618050000
22
20
40
19
39
32
36
84
57
121
29.5
30
0.38
1618060000
28
15
30
25
47.25
38
43.5
93.2
59
121
43
30
0.54
1618070000
35
8
16
32
55.8
48
53
108
74
151
89
25
0.94
1618080000
42
6
12
40
59.7
54
65
132.5
79
151
230
25
1.33
1618100000
54
2
4
49.5
72.1
70
80
153
93.5
160
265
25
2.28
Notes
Temperature range: -20°C +160°C.
Applications
Available media and videos
210-RB-SP.pdf
210-RB.pdf
