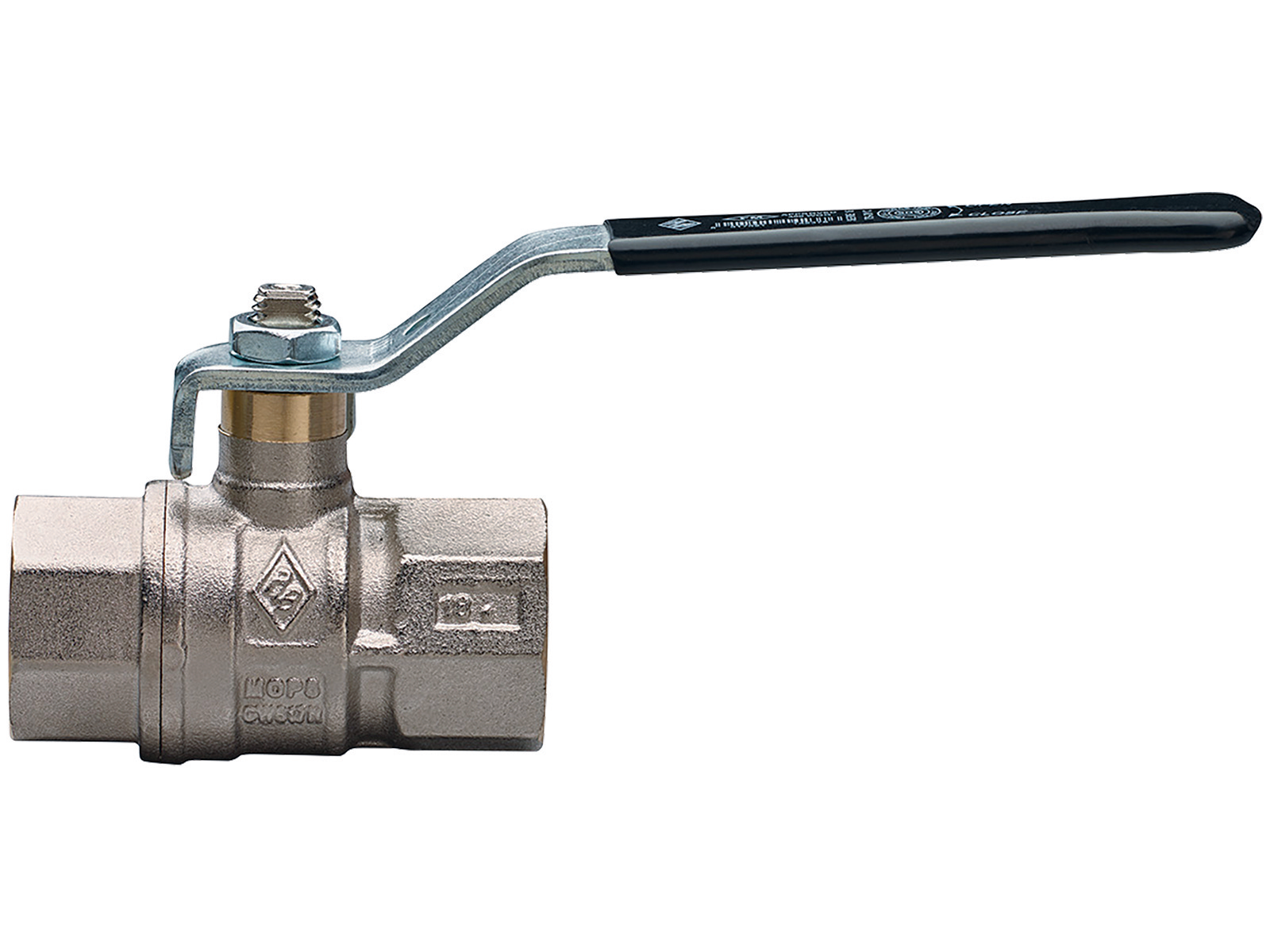

Technical specifications

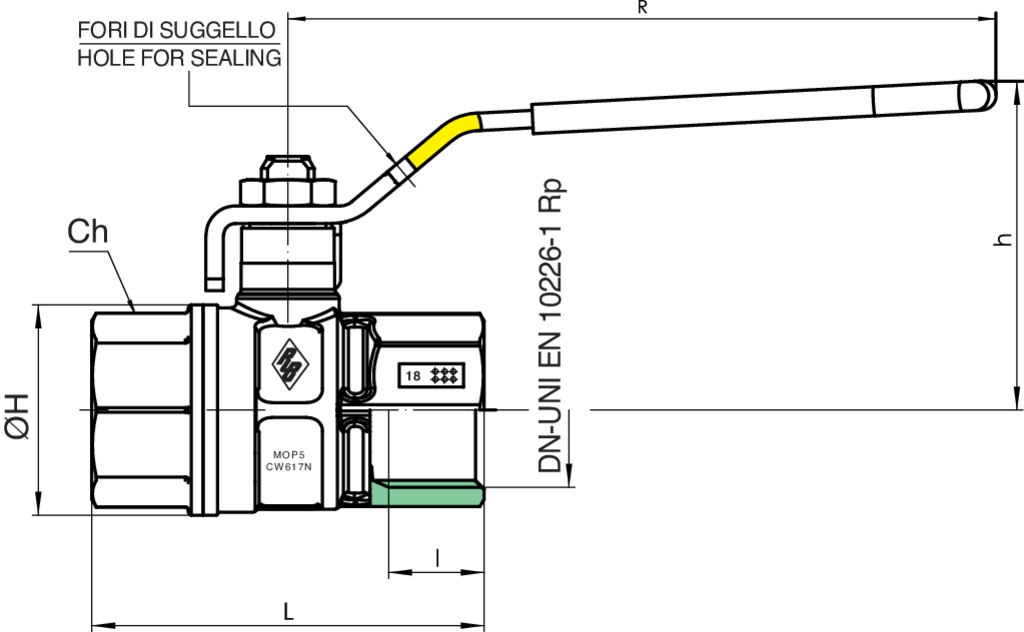

Drawing
Table
CODE SIZE DN UNITS PER BOX MASTER BOX I L ØH CH R H KV PN KG
1610040000 1/2” 15 20 80 15 59 30 25 96 45 16.3 50 0.18
1610050000 3/4” 20 10 40 16.3 67 36 31 121 56.5 29.5 40 0.31
1610060000 1” 25 10 20 19.1 81.5 43.5 38 121 59 43 40 0.47
1610070000 1”1/4 32 6 12 21.4 94 53 48 151 72.5 89 40 0.8
1610080000 1”1/2 40 4 8 21.4 102.5 65 54 151 78.5 230 40 1.1
1610100000 2” 50 2 4 25.7 123 80 67 160 91.5 265 40 1.83
1710020000 1/4” 8 20 80 11 51.5 23 20 95 43 5.4 64 0.15
1710030000 3/8” 10 20 80 11.4 51.5 23 20 95 43 6 64 0.14
1710120000 2”1/2 65 2 4 30.2 152 111 90 206 123 540 25 3.73
1710140000 3” 80 - 4 33.3 177 136 105 206 133 873 25 5.95
1710180000 4” 100 - 2 39.3 214 166 130 261 165 1390 25 10.57
Notes
Temperature range: -20°C +160°C
