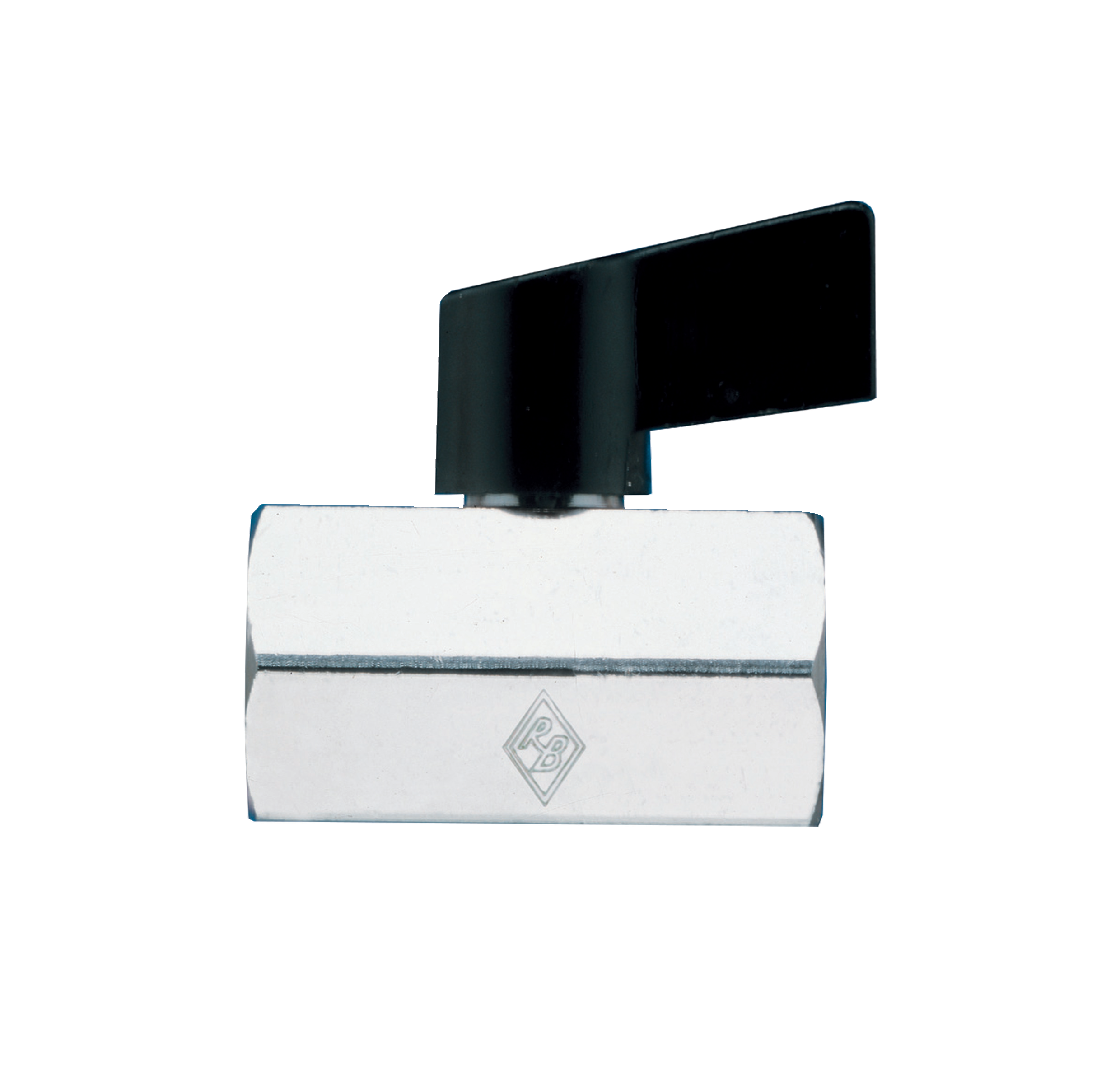

Technical specifications

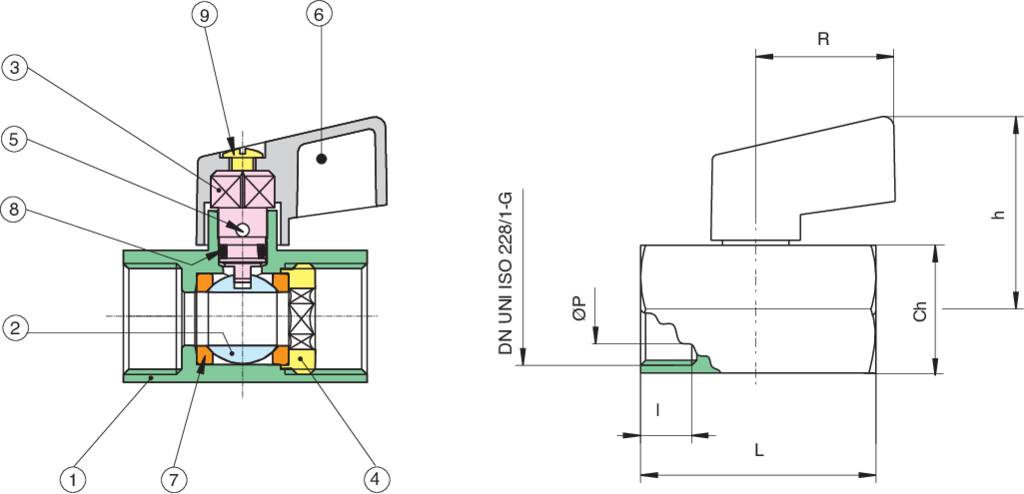

Drawing
Materials
POSITION PART NAME MATERIAL N.° PIECES
1 BODY BRASS CW617N UNI EN 12165 1
2 BALL BRASS CW614N UNI EN 12164 1
3 STEM BRASS CW614N UNI EN 12164 1
4 WASHER BRASS CW614N UNI EN 12164 1
5 LOCK PIN STEEL 1
6 HANDLE PA 6,6 1
7 BALL SEAT PTFE 1
8 O-RING FKM 1
9 SCREW BRASS CW614N UNI EN 12164 1
Table
CODE SIZE DN UNITS PER BOX MASTER BOX ØP I L H CH R KV PN KG
3930020000 1/4” 8 40 240 8 10 41 36.5 21 27 4.3 10 0.11
3930030000 3/8” 10 40 240 8 10 41 36.5 21 27 2.7 10 0.1
3930040000 1/2” 15 30 180 10 11 46 37.7 25 27 5.4 10 0.14
Notes
Temperature range: -20°C +150°C.
