3861
3861

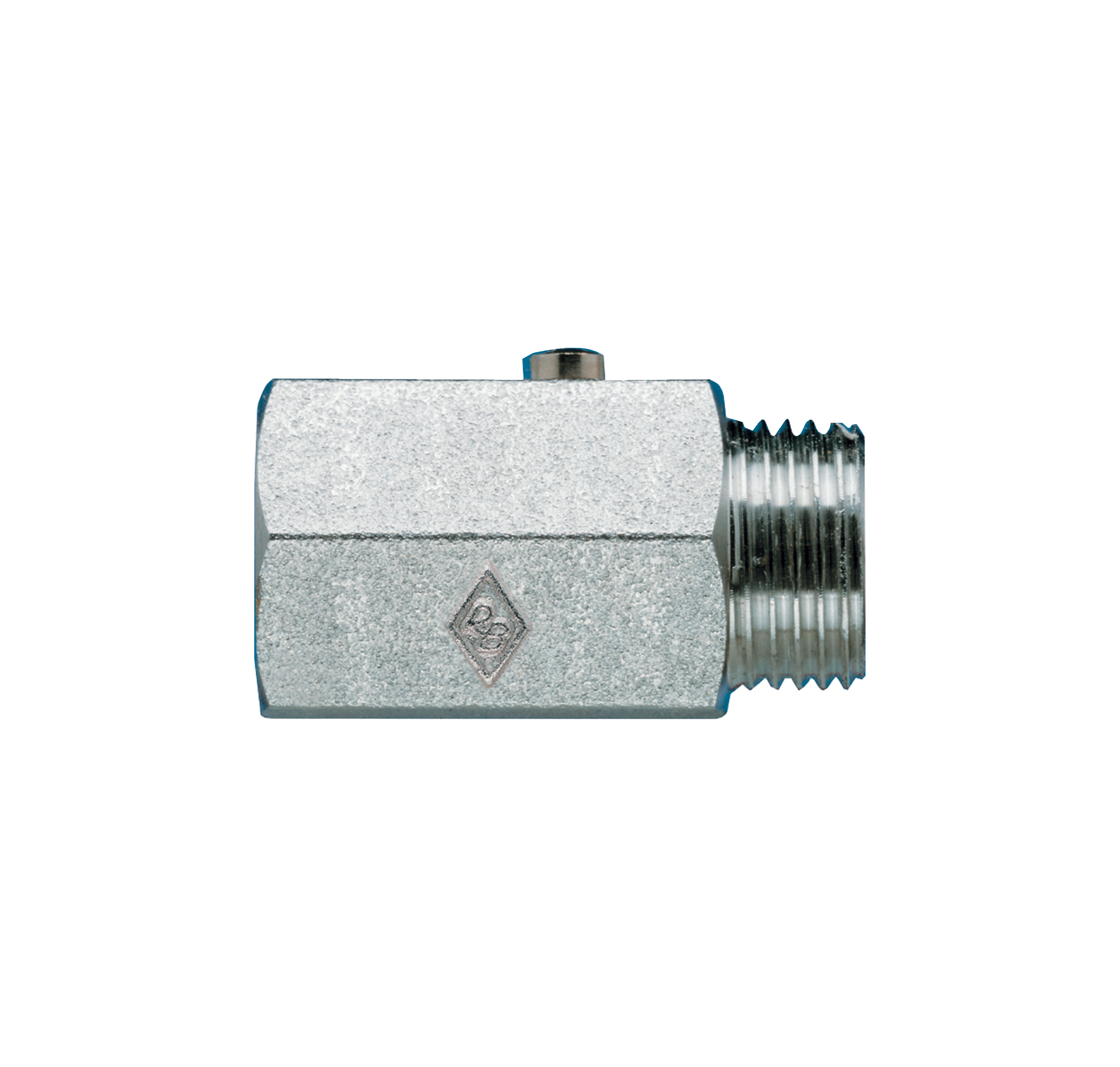

Ball valve, M/F threaded, sandblasted and chrome plated, operating with screwdriver.
Technical specifications

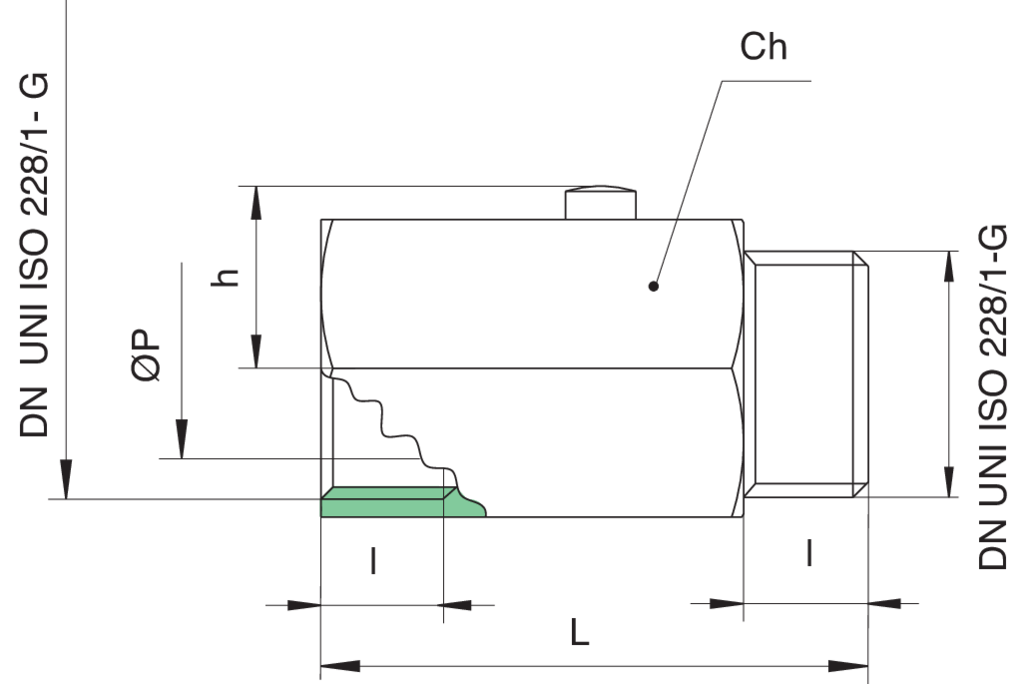

Drawing
Table
CODE
SIZE
DN
UNITS PER BOX
MASTER BOX
ØP
I
H
CH
L
KV
PN
KG
3861010000
1/8”
6
50
300
8
8
13.8
21
41
4.3
10
0.08
3861020000
1/4”
8
50
300
8
10
13.8
21
41
4.3
10
0.08
3861030000
3/8”
10
50
300
8
10
13.8
21
41
2.7
10
0.07
3861040000
1/2”
15
40
240
10
11
15.8
25
46
5.4
10
0.12
Notes
Temperature range: -20°C +90°C.
Applications
Available media and videos
210-RB-SP.pdf
210-RB.pdf
