3860
3860

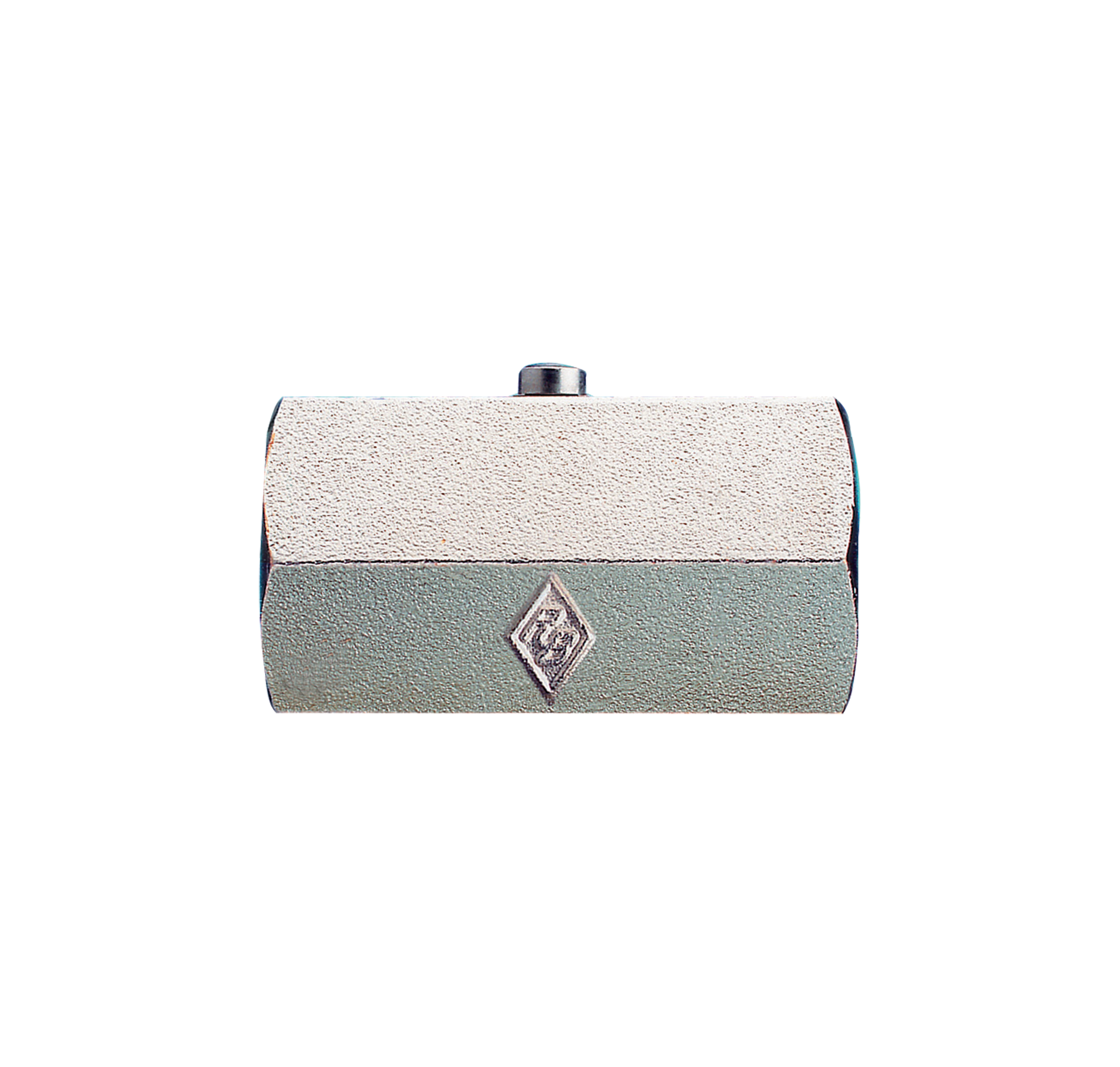

Ball valve, F/F threaded, sandblasted and chrome plated, operating with screwdriver.
Technical specifications

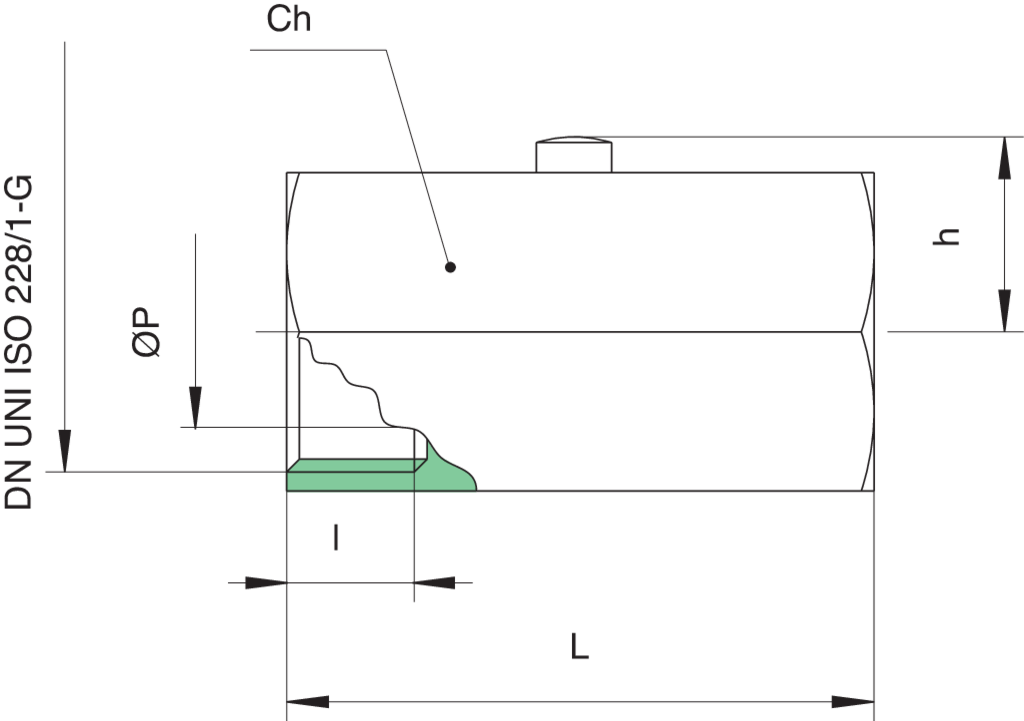

Drawing
Table
CODE
SIZE
DN
UNITS PER BOX
MASTER BOX
ØP
L
I
H
CH
KV
PN
KG
3860020000
1/4”
8
50
300
8
41
10
13.8
21
4.3
10
0.09
3860030000
3/8”
10
50
300
8
41
10
13.8
21
2.7
10
0.08
3860040000
1/2”
15
40
240
10
46
11
15.8
25
5.4
10
0.12
Notes
Temperature range: -20°C +90°C.
