Technical specifications

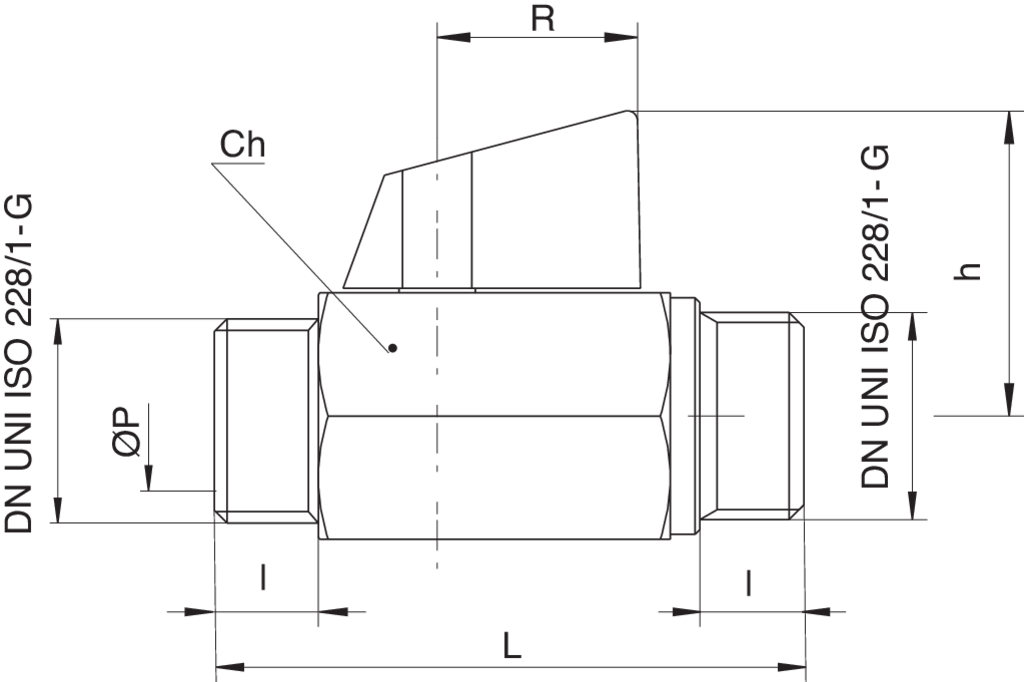

Drawing
Table
CODE SIZE DN UNITS PER BOX MASTER BOX ØP I L H CH R KV PN KG
3837010000 1/8” 6 50 300 8 8 53.5 29 21 20.5 4.3 10 0.09
3837020000 1/4” 8 50 300 8 10 53 29 21 20.5 4.3 10 0.1
3837030000 3/8” 10 50 300 8 10 53 29 21 20.5 2.7 10 0.1
3837040000 1/2” 15 35 210 10 11 59.5 31 25 20.5 5.4 10 0.16
Notes
Temperature range: -20°C +90°C.
