3831
3831

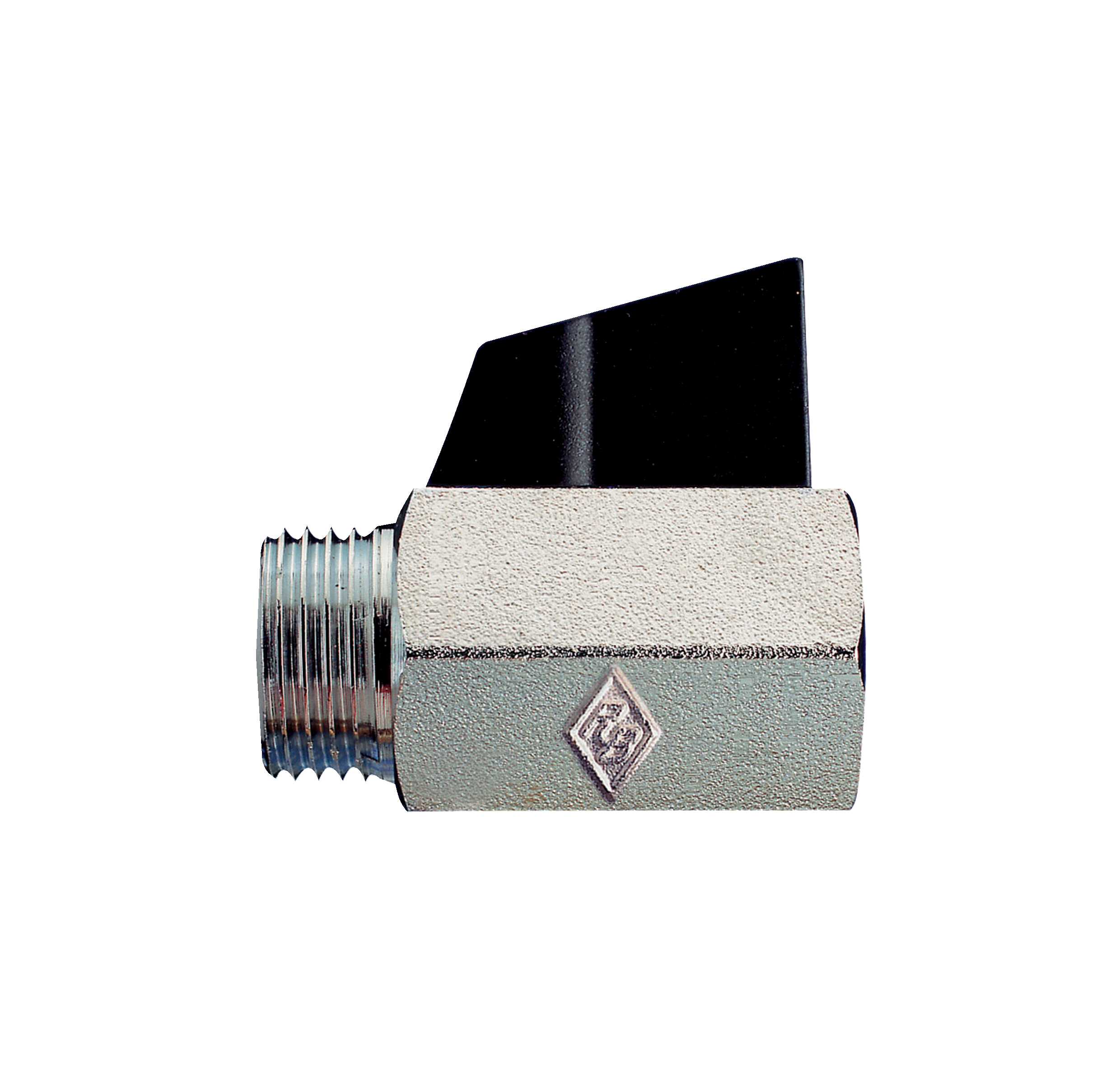

Ball valve, M/F threaded, sandblasted and chrome plated, with handle.
Technical specifications

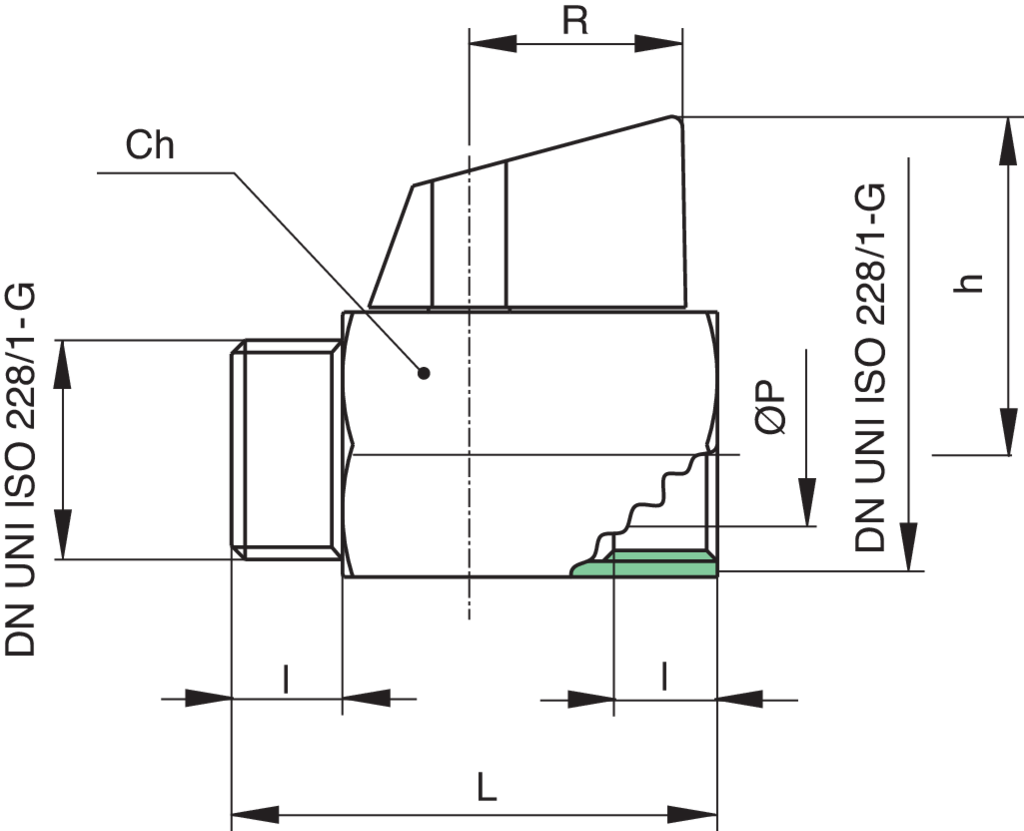

Drawing
Table
CODE
SIZE
DN
UNITS PER BOX
MASTER BOX
ØP
I
L
H
R
CH
KV
PN
KG
3831010000
1/8”
6
50
300
8
8
41
29
20.5
21
4.3
10
0.08
3831020000
1/4”
8
50
300
8
10
41
29
20.5
21
4.3
10
0.08
3831030000
3/8”
10
50
300
8
10
41
29
20.5
21
2.7
10
0.08
3831040000
1/2”
15
35
210
10
11
46
31
20.5
25
5.4
10
0.12
Notes
Temperature range: -20°C +90°C.
Applications
Available media and videos
210-RB-SP.pdf
210-RB.pdf
