6624
6624

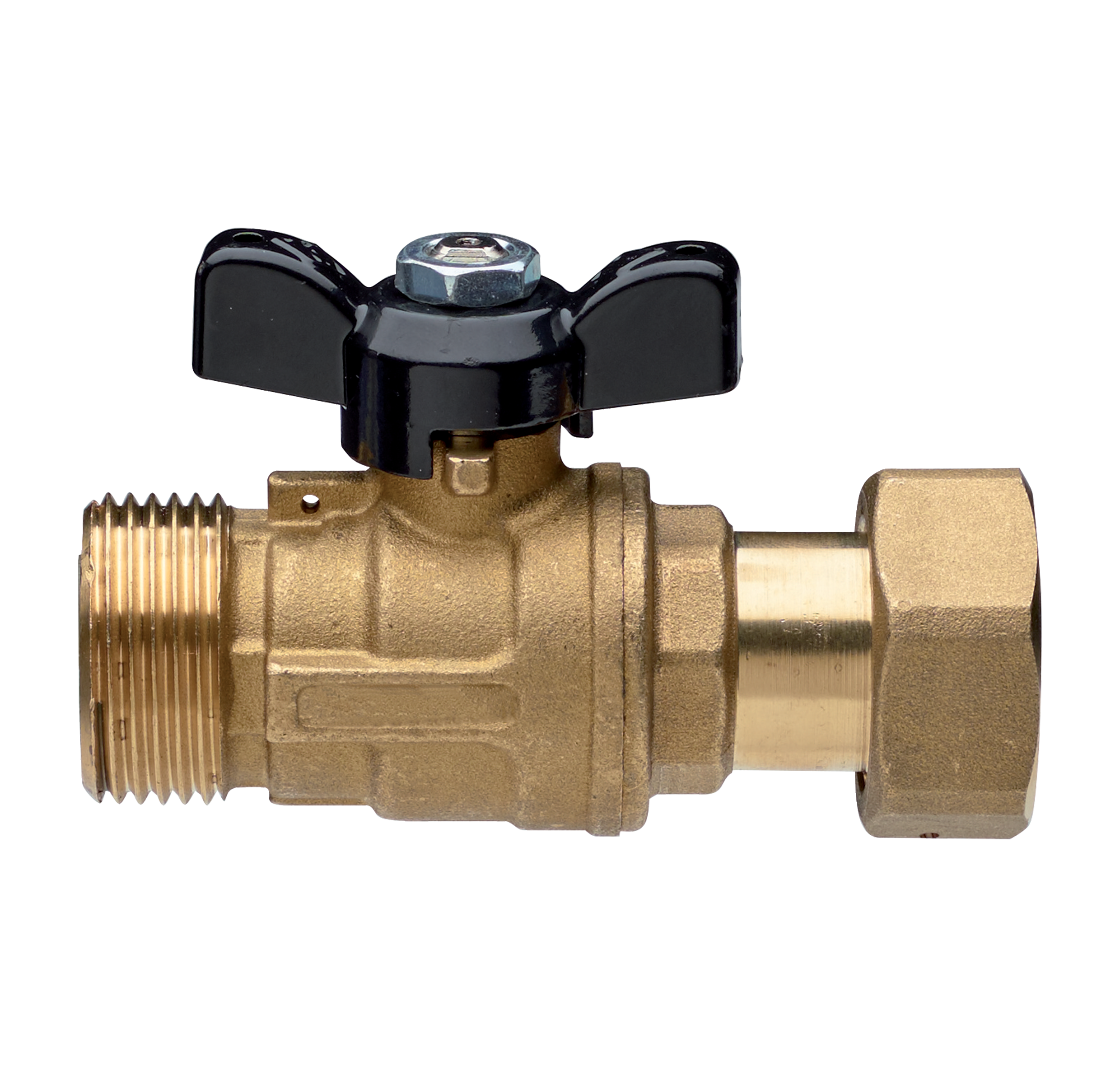

Ball valve for energy metering with male thread, swivel nut and black T-handle.
Technical specifications

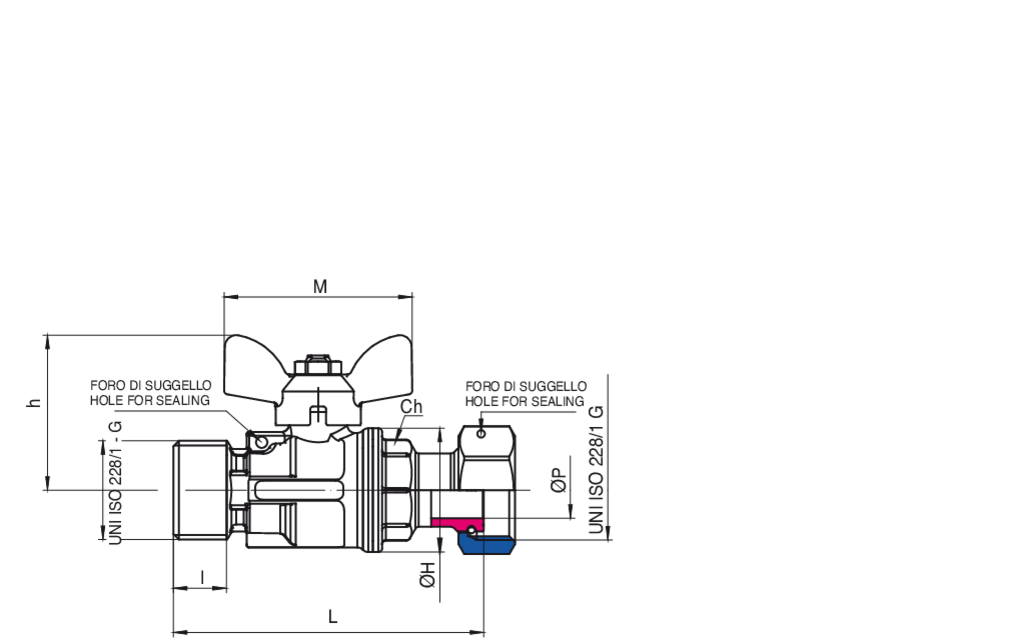

Drawing
Table
SIZE
DN
UNITS PER BOX
MASTER BOX
CODE
ØP
I
CH
ØH
L
H
M
KV
PN
KG
3/4" x 3/4"
20
30
60
6624050000
15
15
25
33
82.5
41
50
16.3
16
0.28
1" x 1"
15
25
50
6624060000
20
15.5
29
39
91
45
57
29.5
16
0.44
Notes
Cover available art. 6670 page 309.
Applications
Available media and videos
210-RB-SP.pdf
210-RB.pdf
