Technical specifications

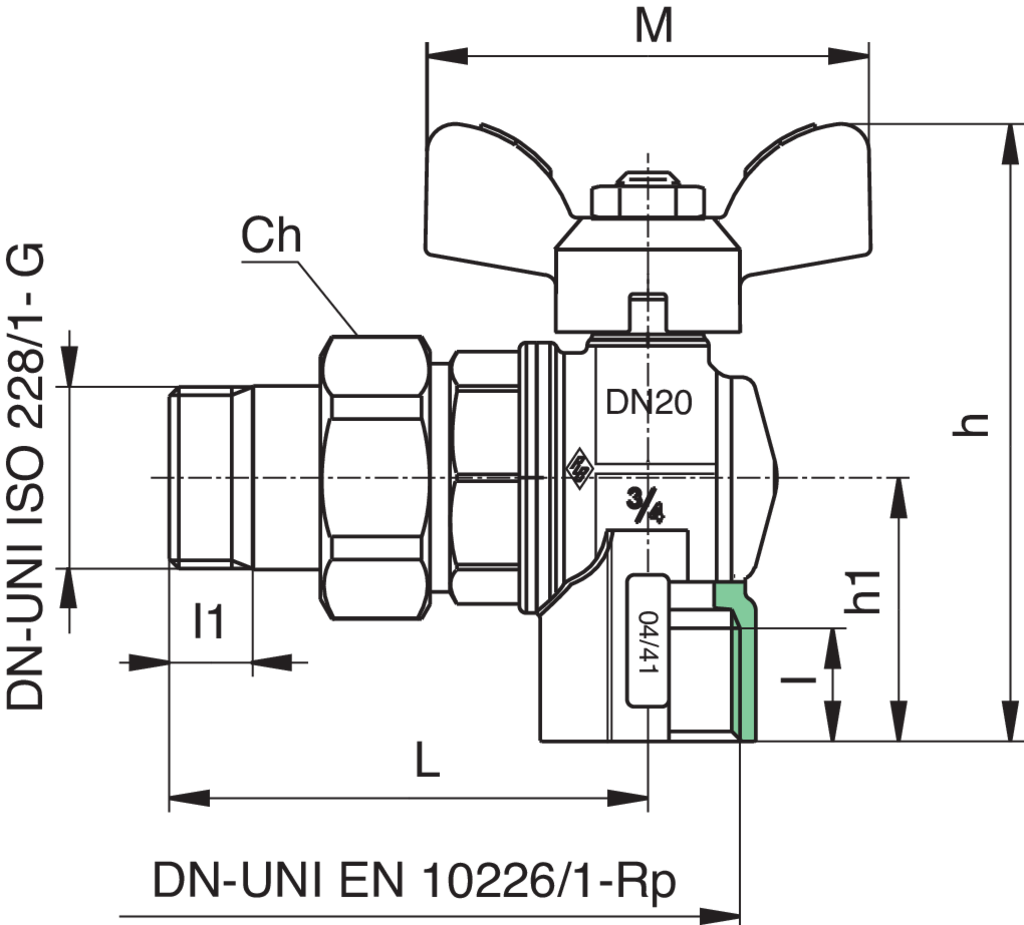

Drawing
Table
SIZE DN UNITS PER BOX MASTER BOX CODE I I1 M H H1 L CH KV PN KG
1/2" 15 15 60 4625040000 15 10 50 75.5 28 59 30 6 30 0.29
3/4" 20 10 40 4625050000 16.3 12 64 89 31 69 37 11.5 30 0.45
1" 25 10 20 4625060000 19.1 14 64 100 37.5 79 47 18.3 30 0.79
Notes
The accessories, items 5808-6404, are available. See at pages 308-310.
