BALL VALVES SERIES
/
EXPO-SFER
/
4624
EXPO-SFER

4624

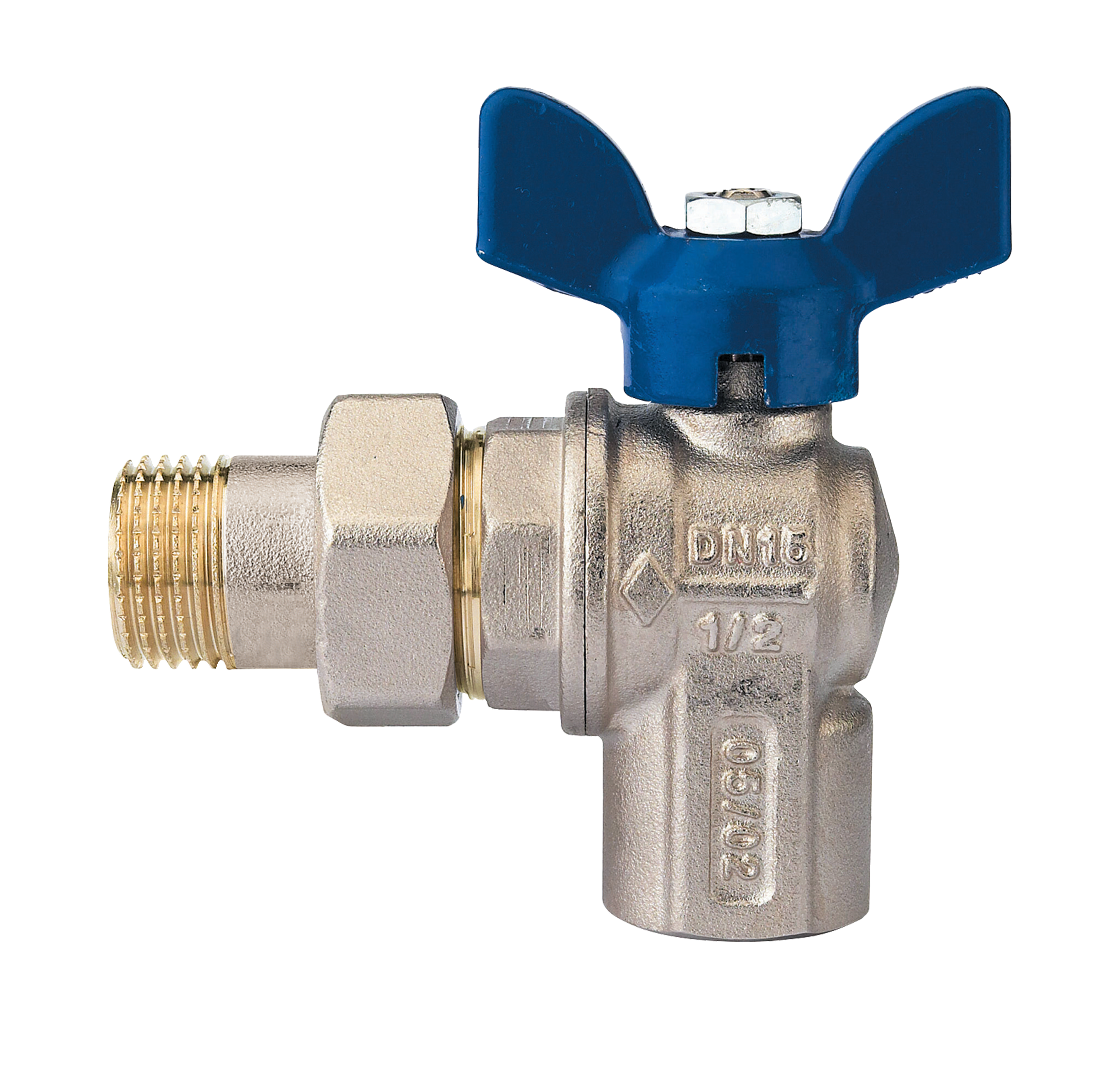

Angle ball valve for manifolds, with blue aluminium T-handle.

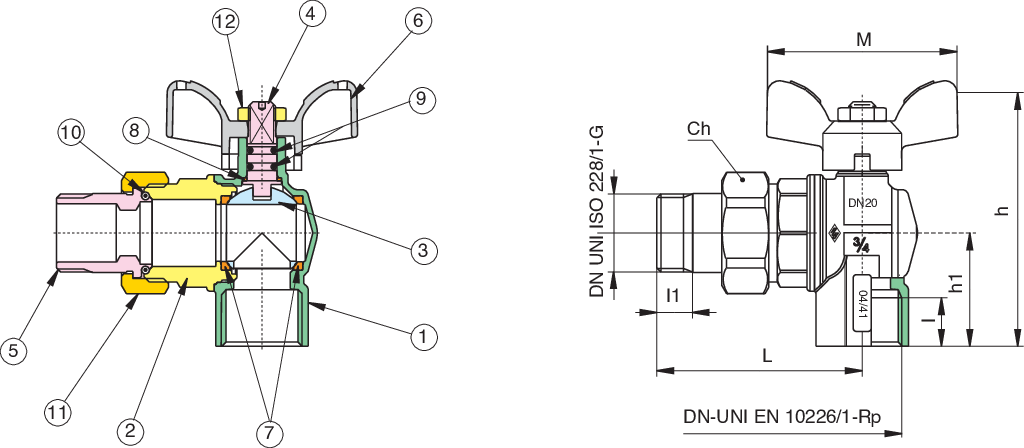

Technical specifications
Position Part name Material N.° pieces
1 BODY BRASS CW617N UNI EN 12165 1
2 END CONNECTION BRASS CW617N UNI EN 12165 1
3 BALL BRASS CW617N UNI EN 12165 1
4 STEM BRASS CW614N UNI EN 12164 1
5 UNION TAIL BRASS CW617N UNI EN 12165 1
6 T-HANDLE ALUMINIUM EN-AC 46100 EN 1706 1
7 BALL SEAT PTFE 1
8 STEM SEAT PTFE 2
9 O-RING EPDM 1
10 O-RING EPDM 2
11 NUT BRASS CW617N UNI EN 12165 1
12 NUT STEEL CL 04 1
SIZE DN BOX MASTER BOX CODE I I1 M h h1 L Ch Kv PN Kg
1/2" 15 15 60 4624040000 15 10 50 74,5 34 59 30 6 30 0,29
3/4" 20 10 40 4624050000 16,3 12 64 89 38 70,5 37 11,5 30 0,45
1" 25 10 20 4624060000 19,1 14 64 100 45,5 80,5 47 18,3 30 0,79

Temperature range: -20°C +160°C.

The accessories, items 5808-6404, are available.
