4604
4604

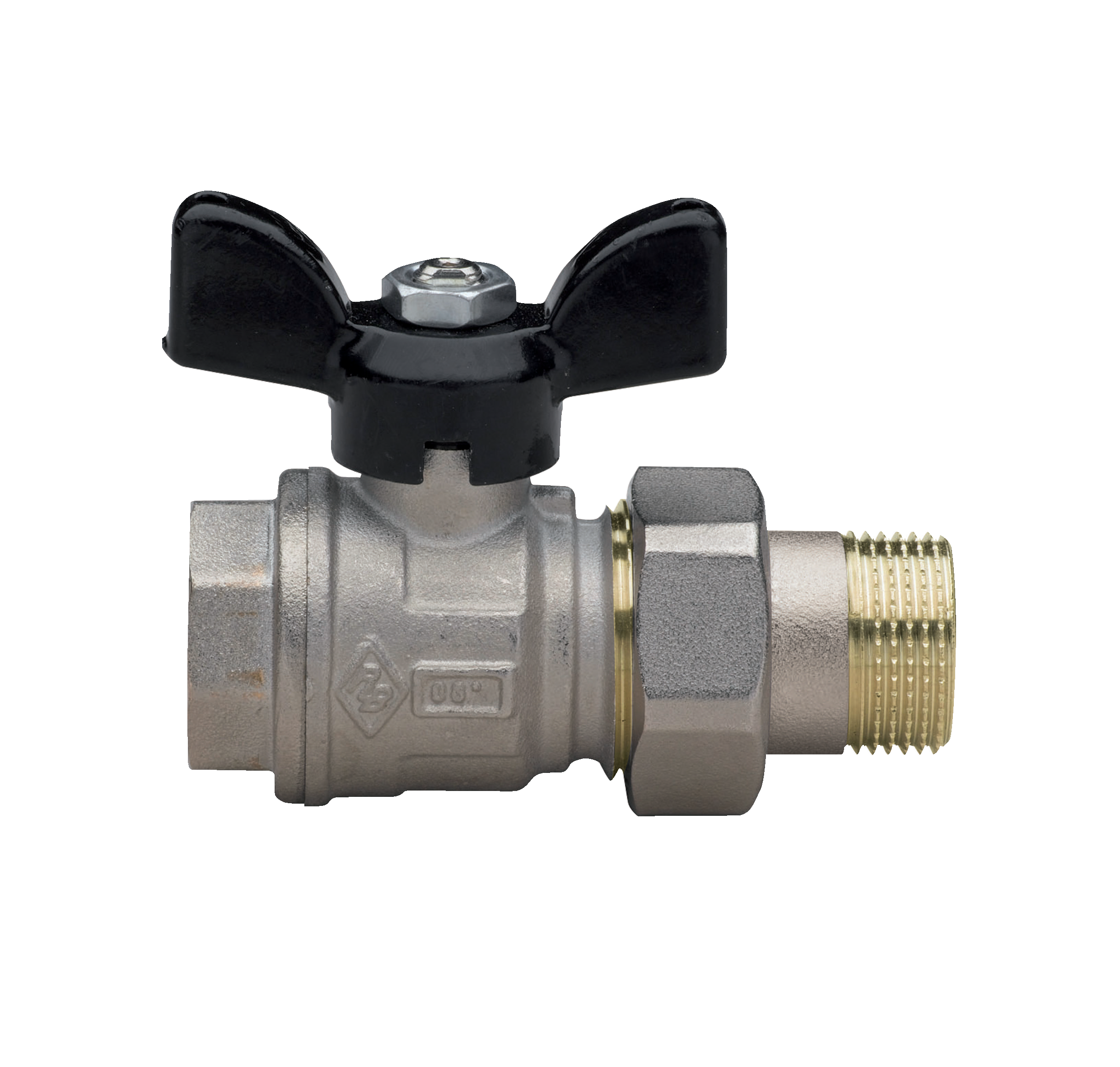

Full bore ball valve, female threaded and male union tail for manifold, with aluminium T-handle.
Technical specifications

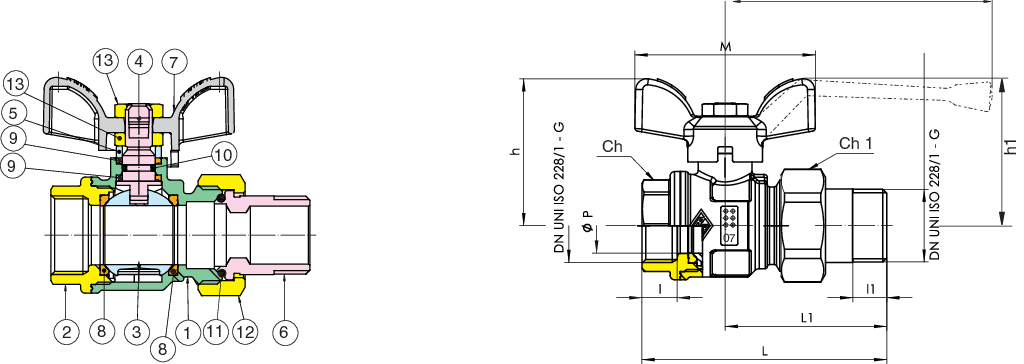

Drawing
Materials
Position
Part name
Material
N.° pieces
1
BODY
BRASS CW617N UNI EN 12165
1
2
END CONNECTION
BRASS CW617N UNI EN 12165
1
3
BALL
BRASS CW617N UNI EN 12165
1
4
STEM
BRASS CW614N UNI EN 12164
1
5
PACKING GLAND
BRASS CW614N UNI EN 12164
1
6
UNION TAIL
BRASS CW617N UNI EN 12165
1
7
T-HANDLE
ALUMINIUM EN-AC 46100 EN 1706
1
8
BALL SEAT
PTFE
2
9
THRUST WASHER
PTFE
2
10
O-RING
NBR
1
11
O-RING
EPDM
1
12
NUT
BRASS CW617N UNI EN 12165
1
13
NUT
STEEL CL 04
2
Table
SIZE
DN
UNITS PER BOX
MASTER BOX
CODE
ØP
I
I1
Ch
Ch1
L
L1
h
h1
M
R
Kv
PN
Kg
1/2"
15
20
80
4604250000
15
13.5
10
25
30
81
53
41.5
-
50
-
16.3
64
0.25
3/4"
20
10
40
4604270000
20
12.5
12
31
37
88.5
59
43
-
64
-
29.5
50
0.39
1"
25
10
20
4604300000
25
15
14
38
47
103
68
57
-
64
-
43
50
0.68
1"1/4
32
6
12
4604350000
32
17
16
48
52
127.5
87
-
79.5
-
160
89
50
1.05
Notes
Cover available art. 6670 page 309.
