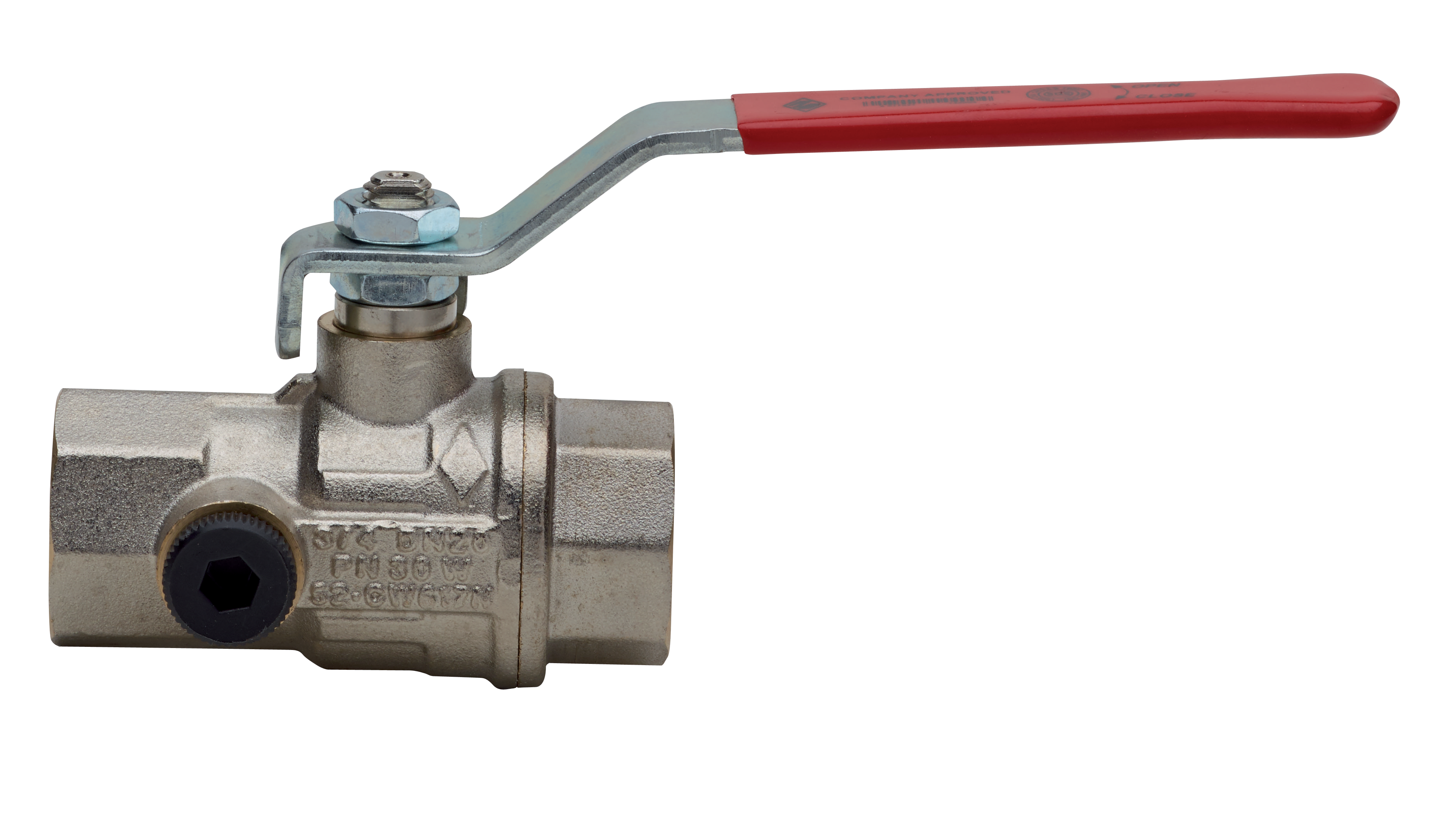

Technical specifications

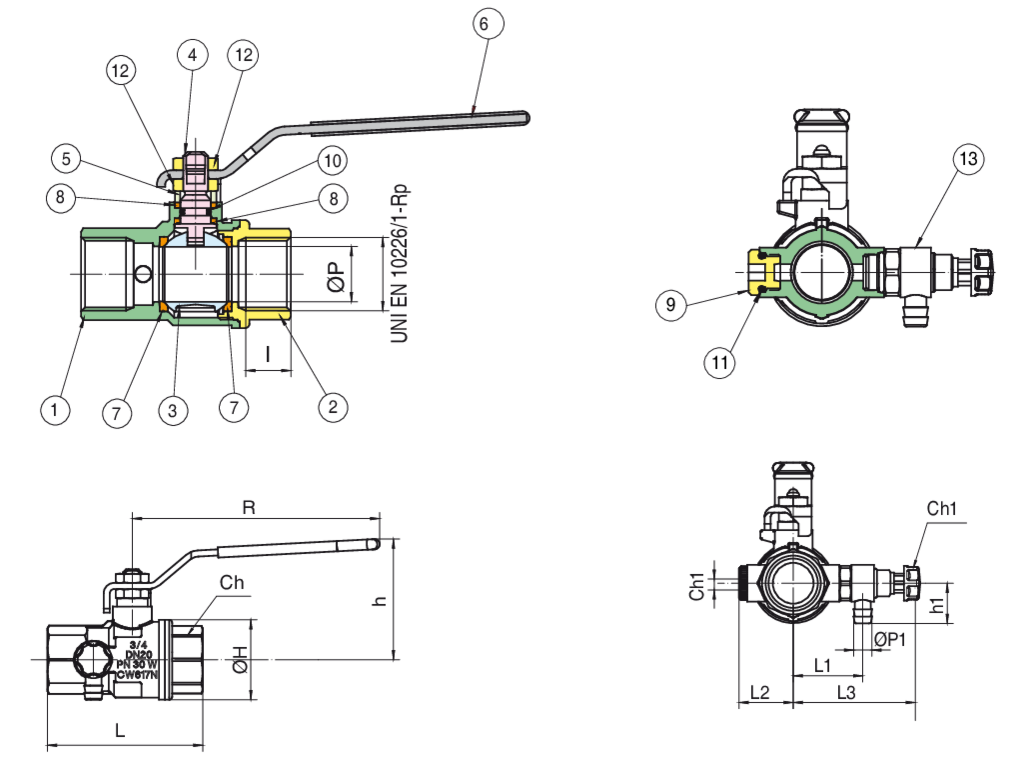

Drawing
Materials
POSITION PART NAME MATERIAL N.° PIECES
1 BODY BRASS CW617N UNI EN 12165 1
2 END CONNECTION BRASS CW617N UNI EN 12165 1
3 BALL BRASS CW617N UNI EN 12165 1
4 STEM BRASS CW614N UNI EN 12164 1
5 PACKING GLAND BRASS CW614N UNI EN 12164 1
6 HANDLE STEEL DD11 UNI EN 10111 1
7 BALL SEAT PTFE 2
8 STEM SEAL/THRUST WASHER PTFE 2
9 CAP PA6 1
10 O-RING NBR 1
11 O-RING NBR 1
12 NUT STEEL CL 04 2
13 DRAIN COCK BRASS CW614N UNI EN 12164 1
Table
CODE SIZE DN UNITS PER BOX MASTER BOX ØP I L L1 L2 L3 ØH H H1 CH CH1 R ØP1 KV PN KG
5210040000 1/2” 15 15 60 15 15 68 28.5 23.5 59 33 46 20 25 6 95 9 16.3 30 0.28
5210050000 3/4” 20 10 40 20 16.3 76 31.5 26.5 62 39 58 20 31 6 120 9 29.5 30 0.41
5210060000 1” 25 10 20 25 19.1 83.5 34.5 29.5 65 49 62 20 38 6 120 9 43 30 0.6
5210070000 1”1/4 32 6 12 32 21.4 103 39 34 69.5 59 76 20 48 6 150 9 89 25 0.9
5210080000 1”1/2 40 4 8 40 21.4 115 45 40 45.5 73 82 20 54 6 150 9 230 25 1.32
5210100000 2” 50 2 4 50 25.7 133 51 46 81.5 86 95 20 67 6 159 9 265 25 1.97
Notes
The accessories, items 5808-6100-6110-6120, are available. See at pages 308-309-310.
