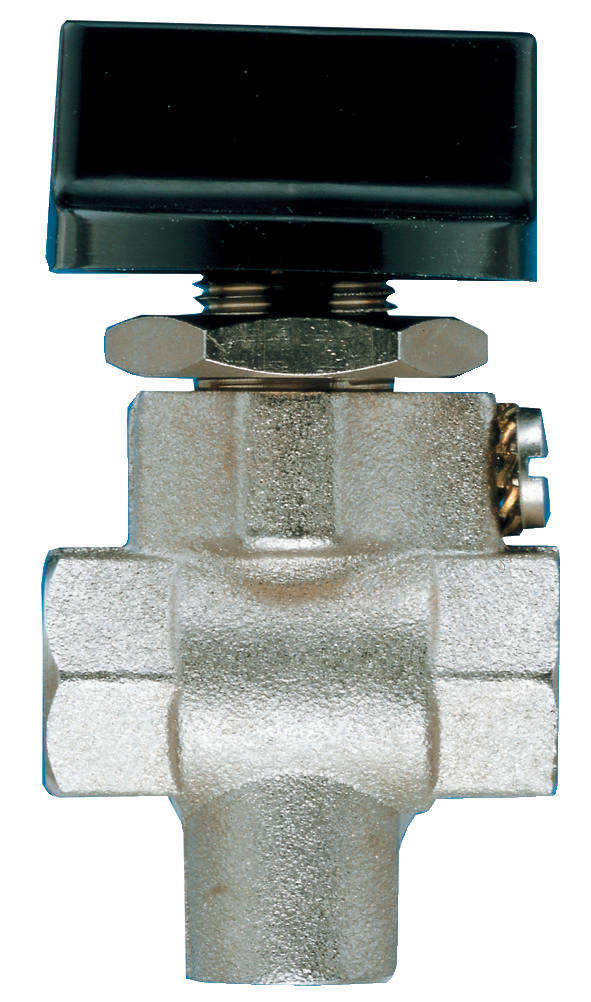

Technical specifications

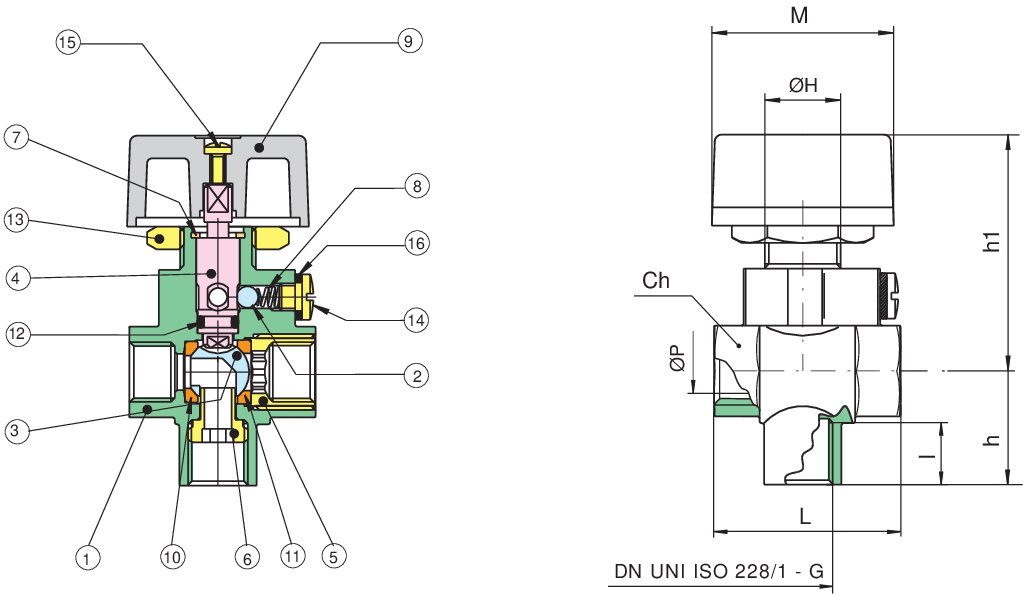

Drawing
Materials
POSITION PART NAME MATERIAL N.° PIECES
1 BODY BRASS CW617N UNI EN 12165 1
2 BALL STAINLESS STEEL INOX AISI 430 1
3 BALL BRASS CW617N UNI EN 12165 1
4 STEM BRASS CW614N UNI EN 12164 1
5 RING NUT BRASS CW614N UNI EN 12164 1
6 RING NUT BRASS CW617N UNI EN 12165 1
7 SEEGER STAINLESS STEEL AISI 302 1
8 SPRING STAINLESS STEEL AISI 302 1
9 WHEEL HANDLE ABS 1
10 BALL SEAT PTFE 1
11 BALL SEAT PTFE 1
12 O-RING FKM 1
13 NUT BRASS CW617N UNI EN 12165 1
14 SCREW BRASS CW614N UNI EN 12164 1
15 SCREW STEEL DD11 UNI EN 10111 1
16 WASHER STEEL DD11 UNI EN 10111 1
Table
CODE SIZE DN UNITS PER BOX MASTER BOX ØP I CH ØH M L H H1 KV PN KG
5710020000 1/4” 8 20 80 8 10 20 17 40 41 25 52 2.2 10 0.2
Notes
Temperature range: -10°C +90°C.
