3210 L
3210 L
Diverter full bore ball valve, female threaded, L-port, with steel handle and ISO 5211 pad for actuator.
Technical specifications

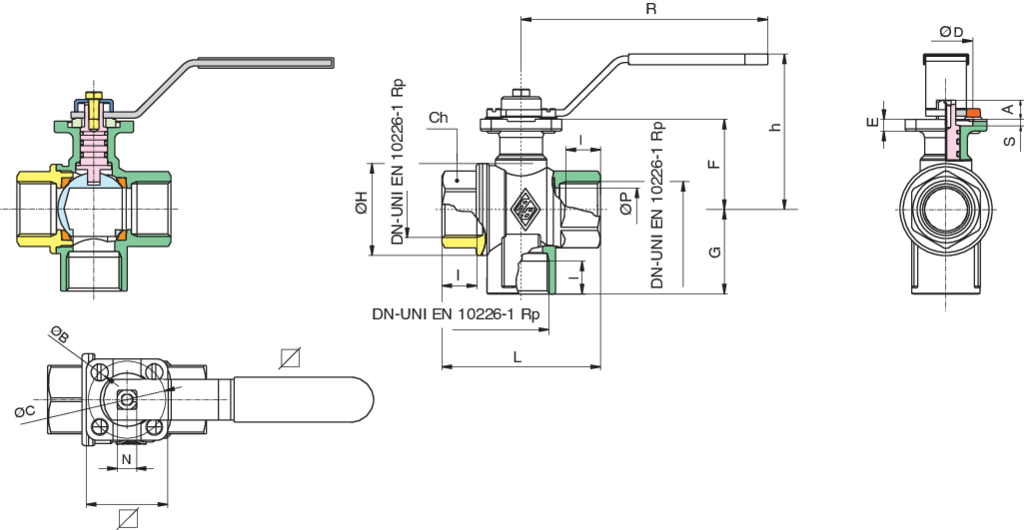

Drawing
Table
CODE
SIZE
DN
UNITS PER BOX
MASTER BOX
ØP
I
CH
A
ØB
ØC
ØD
S
QUADRO SQUARE
E
F
G
N
ØH
L
H
R
KV
PN
KG
3210020000
1/4”
8
20
40
10
11
22
7
M7
36
25
2
38
5.5
28.5
26
9
28
52
60
115
2.25
25
0.34
3210030000
3/8”
10
20
40
10
11.4
22
7
M7
36
25
2
38
5.5
28.5
26
9
28
52
60
115
2.7
25
0.32
3210040000
1/2”
15
20
40
15
15
27
9
M7
36
25
2
38
6
31
33.5
9
34.5
64
62
115
6
25
0.44
3210050000
3/4”
20
15
30
20
16.3
32
9
M7
36
25
3
38
6
42
39.5
9
43
74
73
115
11.5
16
0.61
3210060000
1”
25
10
20
25
19.1
41
9
M7
36
25
3
38
6.5
45
47
9
53
89
76
115
18.3
16
0.92
3210070000
1”1/4
32
6
12
32
21.4
50
9
M7
36
25
3
38
6
49
54.5
9
63
100
79.5
115
27.2
10
1.28
3210080000
1”1/2
40
4
8
40
21.4
55
11
7
50
35
3
50
8
61.5
61.5
11
77
110
95
170
47.3
10
2.02
3210100000
2”
50
2
4
50
25.7
70
11
7
50
35
3
50
8.5
67
73
11
93
130
101
170
73
10
3.17
3210140000
3”
80
-
2
80
33.3
105
-
-
-
-
-
-
-
-
106
20
148
197
150
260
177.5
6
9.14
Notes
Without ISO 5211 pad.
