200500
CONTROL VALVES
200500

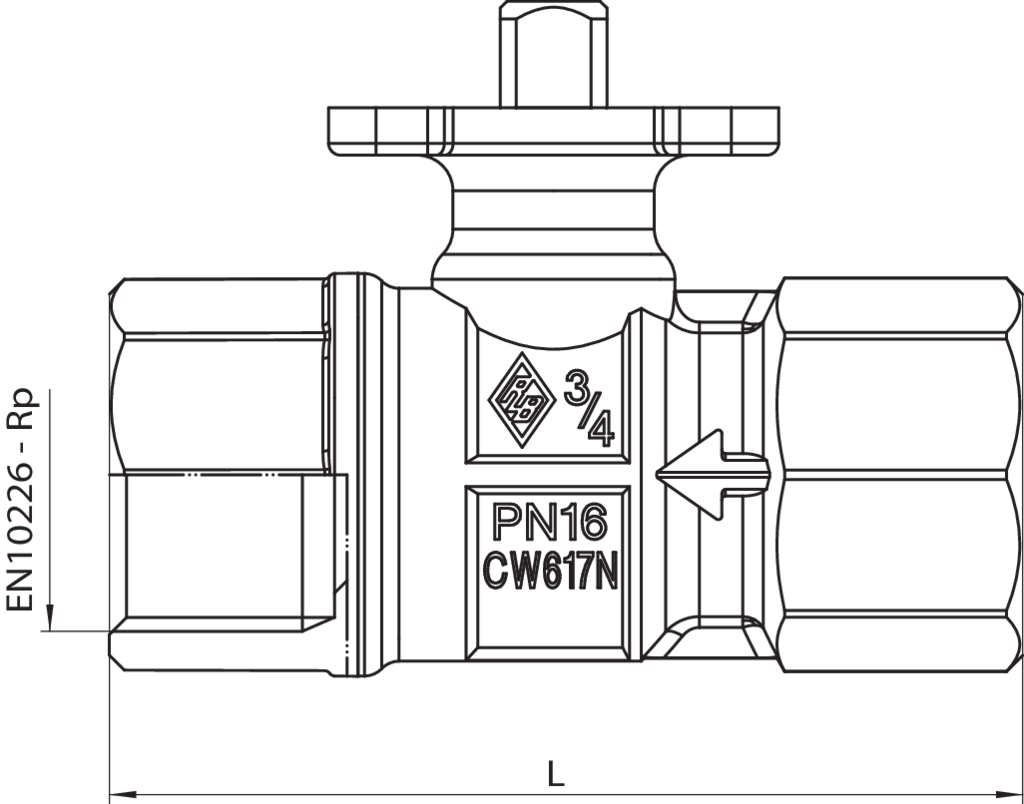

2-way control valve with
no characterizing disks
(kit).
Technical specifications
Position
Part name
Material
N.° pieces
1
BODY
BRASS CW617N UNI EN 12420
1
2
END CONNECTION
BRASS CW617N UNI EN 12420
1
3
BALL
BRASS CW617N UNI EN 12420
1
4
STEM
BRASS CW614N UNI EN 12164
1
5
BALL SEAT
PTFE 15% GRAPHITE FILLED
2
6
THRUST WASHER
PTFE
1
7
THRUST WASHER
PTFE 15% GRAPHITE FILLED
1
8
O-RING
EPDM
2
9
O-RING
EPDM
2
10
CIRCLIP
ACC.INOX\S-STEEL AISI 420
1
11
CHAR DISK
PPA (AMODEL 1145 HS)
1
SIZE
DN
BOX
MASTER BOX
CODE
Kvs
L
PN
Control Disk
Kg
1/2"
15
1
75
2005000400
17
71,35
16
-
0,27
3/4"
20
1
75
2005000500
10,5
77,1
16
-
0,32
1"
25
1
30
2005000600
18,7
91
16
-
0,47
1"1/4
32
1
16
2005000700
27,9
103,75
16
-
0,79
1"1/2
40
1
16
2005000800
25
105,05
16
-
0,90
2"
50
1
10
2005001000
40
126,7
16
-
1,50
Applications
Available media and videos
Catalog
Price list
V-BALL VALVE by Rubinetterie Bresciane
