Technical specifications

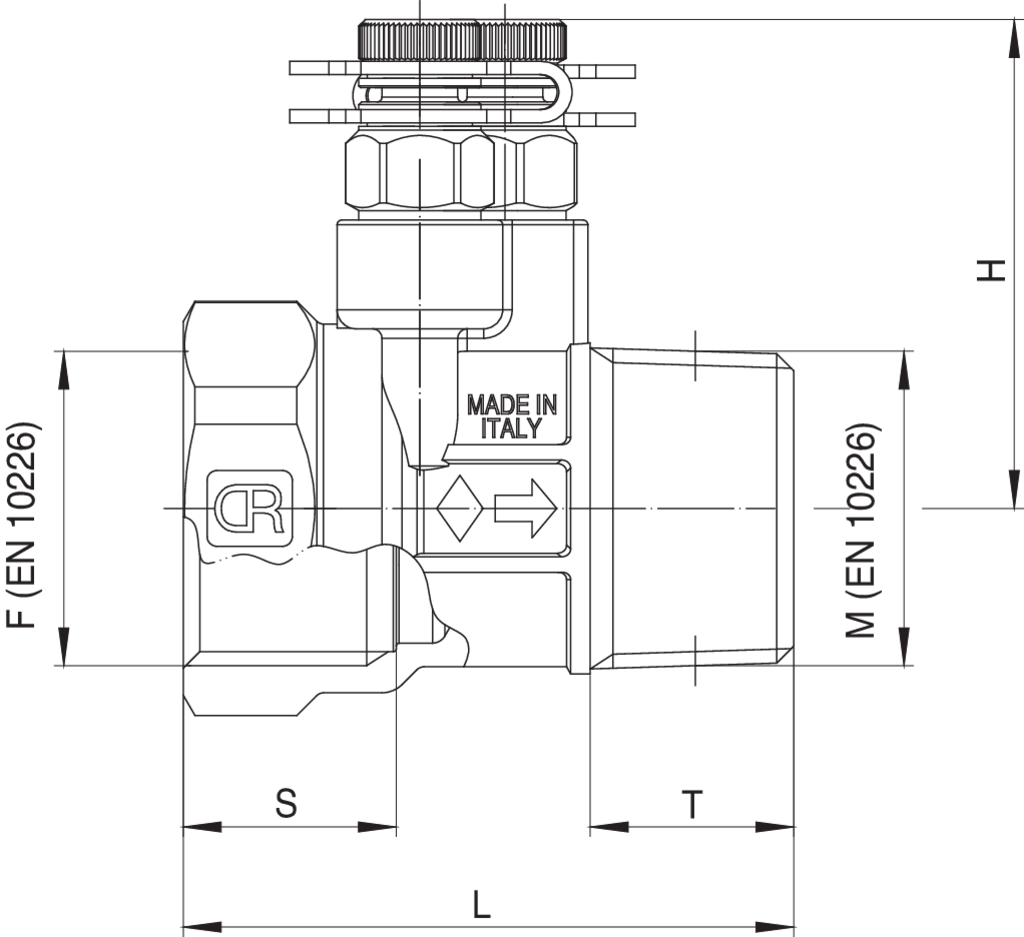

Drawing
Table
SIZE DN UNITS PER BOX MASTER BOX CODE H L S T KVS VENTURI
1/2” 15 1 30 2004020400 44 64.5 17.75 17 2.82
1/2” LF 15 1 30 2004020401 44 64.5 17.75 17 0.88
1/2” ULF 15 1 30 2004020402 44 64.5 17.75 17 0.44
3/4” 20 1 30 2004020500 48 68 19 18.5 4.65
1” 25 1 30 2004020600 52 64.5 22.5 21.5 8.1
1”1/4 32 1 12 2004020700 55 71 24.75 24 15.3
1”1/2 40 1 12 2004020800 58 73.5 24.75 24 26.1
2” 50 1 12 2004021000 65 82 29 28 36.6
Notes

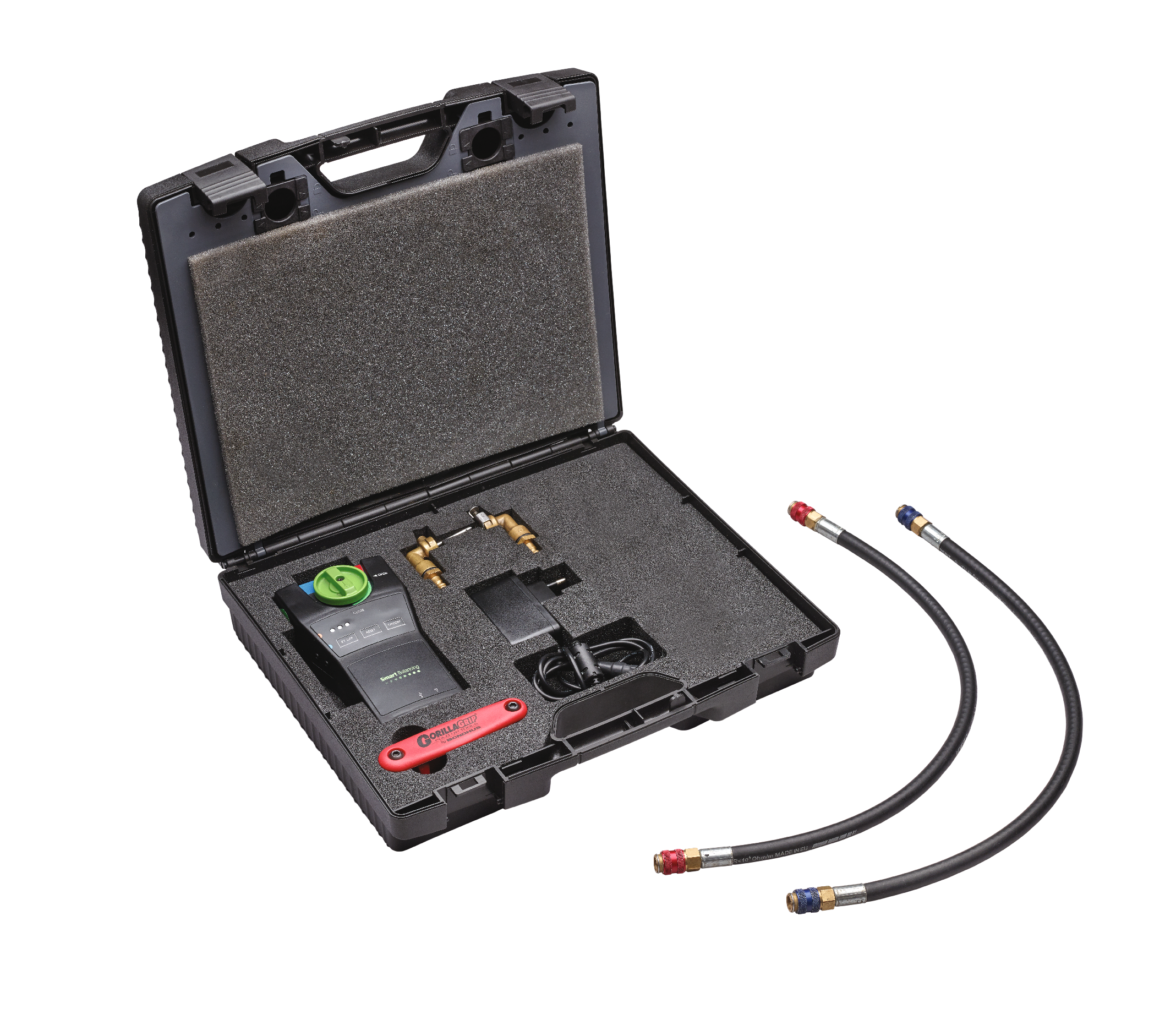

The accessory, item 200400UT, are available. See at page 287.
