Technical specifications

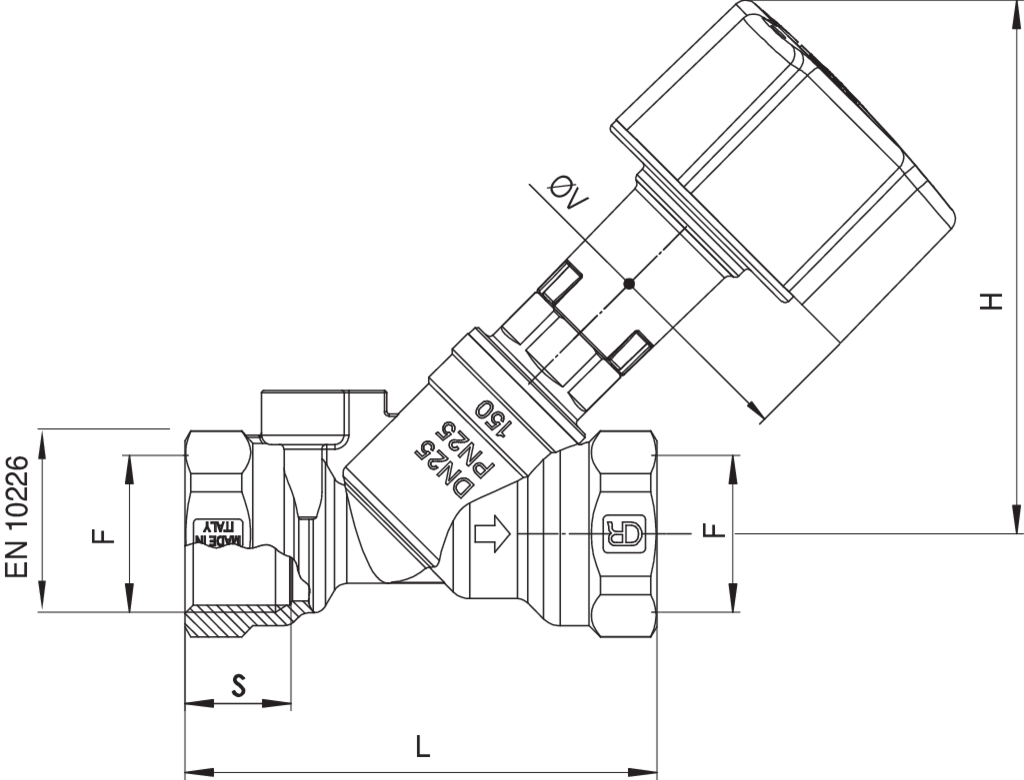

Drawing
Table
SIZE DN UNITS PER BOX MASTER BOX CODE H L S ØV KV MA
1/2” 15 1 10 2004010400 103 87.5 17.75 80 2.93
1/2” LF 15 1 10 2004010401 103 87.5 17.75 80 0.952
3/4” 20 1 6 2004010500 106 92 19 80 4.77
1” 25 1 6 2004010600 113 100 22.5 80 8.29
1”1/4 32 1 4 2004010700 123 118 24.75 80 13.87
1”1/2 40 1 4 2004010800 124 121 24.75 80 20.25
2” 50 1 2 2004011000 151 153 29 80 31.05
Notes
Temperature range: -20°C +130°C.
