CATALOGUE
/
BALL VALVES SERIES
/
JUNIOR-SFER
/
1300
JUNIOR-SFER
1300

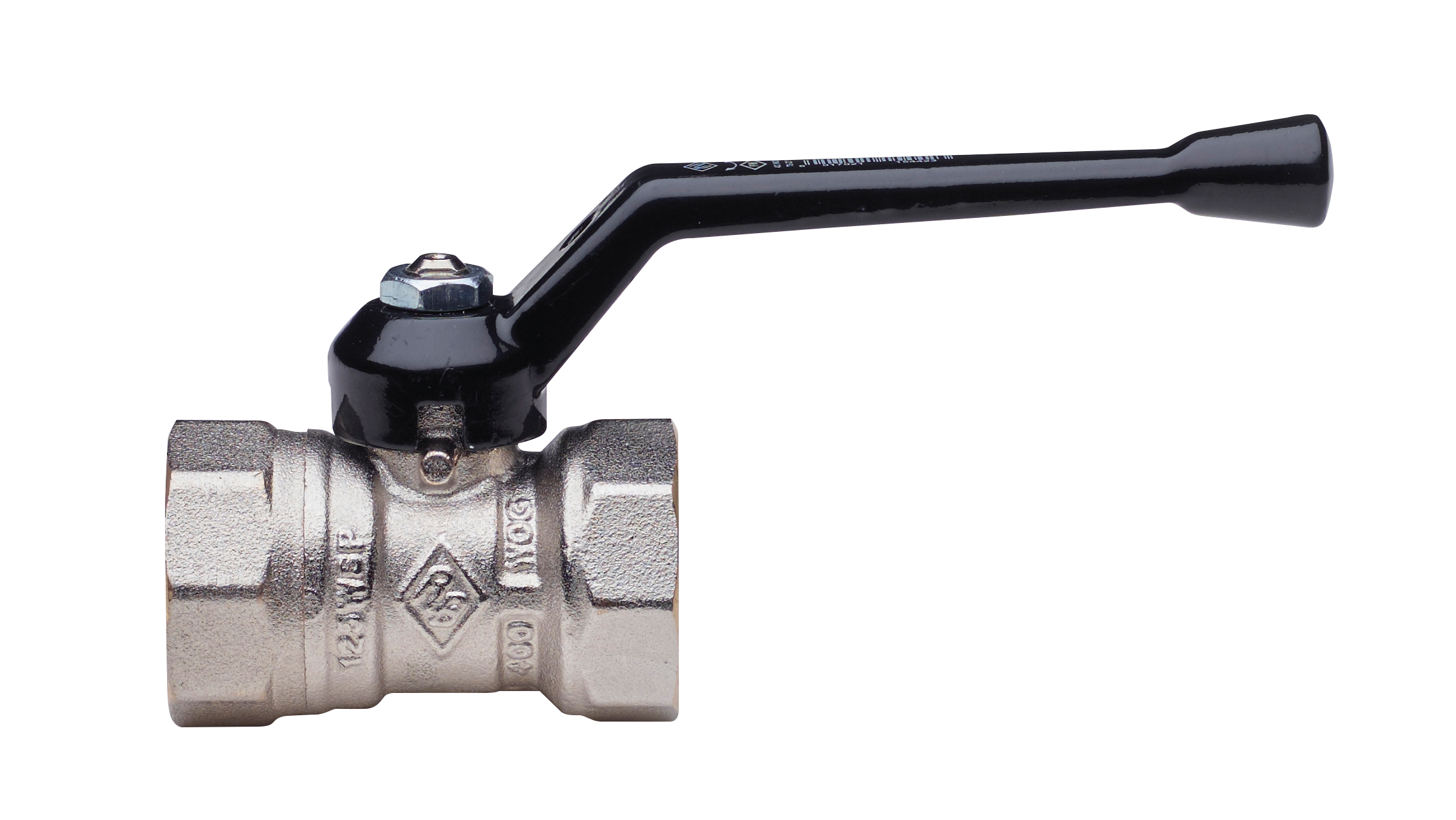

Reduced bore ball valve, F/F threaded, with aluminium T-handle.

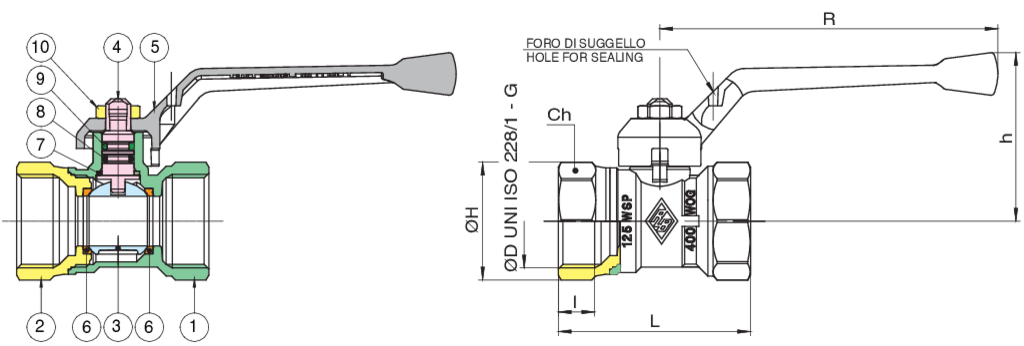

Technical specifications
Position
Part name
Material
N.° pieces
1
BODY
BRASS CW617N UNI EN 12420
1
2
END CONNECTION
BRASS CW617N UNI EN 12420
1
3
BALL
BRASS CW617N UNI EN 12165
1
4
STEM
BRASS CW614N UNI EN 12164
1
5
HANDLE
ALUMINIUM EN-AC 46100
1
6
BALL SEAT
PTFE
2
7
ANTIFRICTION SEAT
PTFE
1
8
O-RING
NBR
2
9
O-RING
FKM
2
10
NUT
STEEL CL 04
1
SIZE
DN
BOX
MASTER BOX
CODE
I
Ch
ØH
L
h
R
Kv
PN
Kg
1/4"*
8
20
80
1700020000
11
20
23
51,5
46,5
95
5,4
64
0,14
3/8"*
10
20
80
1700030000
11,4
20
23
51,5
46,5
95
6
64
0,12
1/2"**
15
20
80
1500040000
12
25
30
47,5
47,5
95
16,3
50
0,14
3/4"
20
10
40
1300050000
12
31
33
54
47,5
95
11
30
0,19
1"
25
10
20
1300060000
14,5
38
41
62
59,5
110
25,7
30
0,30
1"1/4
32
6
12
1300070000
16
48
51,5
74
62
110
35,7
30
0,49
1"1/2
40
4
8
1300080000
18
54
58
83
75,8
160
70,5
25
0,74
2"
50
2
4
1300100000
19
67
72
96
81,7
160
107,5
25
1,16
2"1/2
65
2
4
1300120000
30,2
84
93
143
104,5
170
265
16
2,77
3"
80
0
4
1300140000
33,3
100
111
161
129
205
540
16
4,15
4"
100
0
4
1300180000
39,3
125
136
193
140
205
873
16
6,51
Temperature range: -20°C + 130°C
*Art.
1700
- **Art.
1500
Applications
Available media and videos
Catalog
Price list
Back to the catalogue
Related products / Accesories

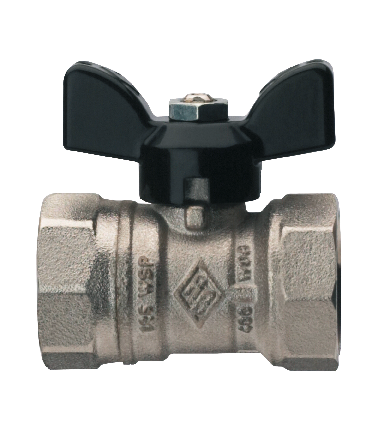

1320

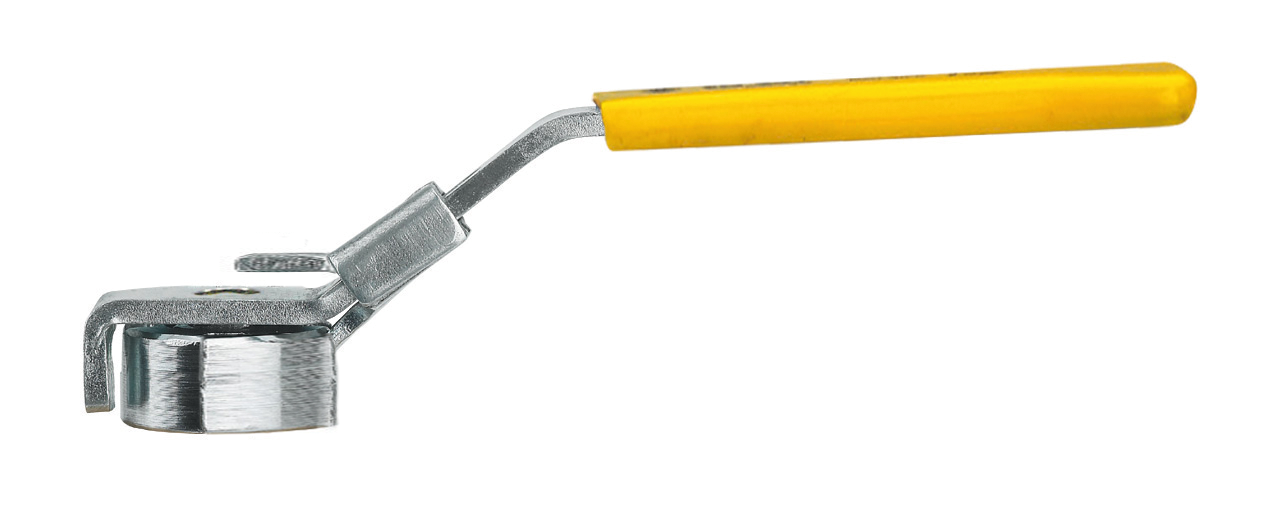

6100
