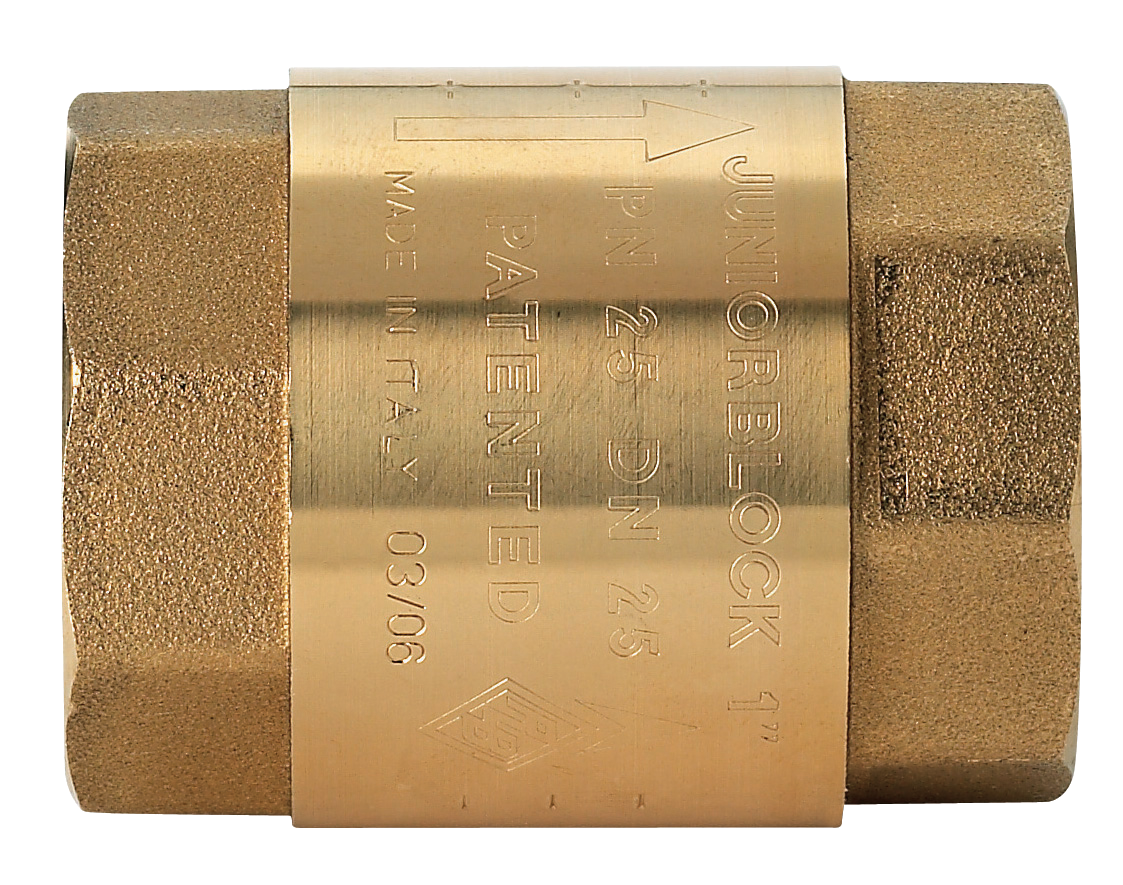

Technical specifications

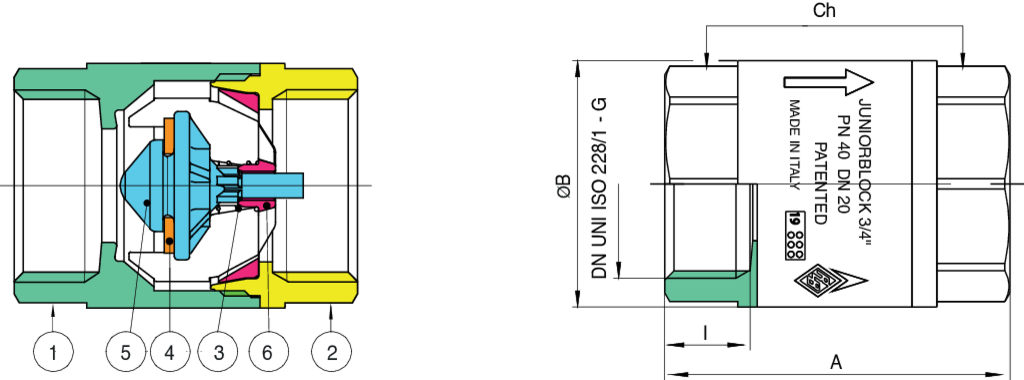

Position Part name Material N.° pieces
1 BODY BRASS CW617N UNI EN 12420 1
2 END CONNECTION BRASS CW617N UNI EN 12420 1
3 SPRING STAINLESS STEEL AISI 303 1
4 FLAT SEAT NBR 1
5 OBSTRUCTOR FORTRON (PPS) 1
6 SUPPORT POM 1
SIZE DN BOX MASTER BOX CODE I Ch ØB A Kv PN Kg
1/2" 15 20 160 10020004 12 25 27 44,5 3,7 40 0,10
3/4" 20 10 80 10020005 12 31 34,5 48,5 5,8 40 0,16
1" 25 10 80 10020006 14,5 38 42 56 8,6 25 0,26
1"1/4 32 6 24 10020007 16 48 51,5 62 13,8 25 0,43
1"1/2 40 4 32 10020008 18 54 61 71,5 20,2 16 0,60
2" 50 2 8 10020010 19 67 72 78 30,9 16 0,94
2"1/2 65 6 12 10020012 24 83 90 92 48,8 12 1,55
3" 80 2 4 10020014 29 98 112,5 113,5 79,4 12 2,78
4" 100 2 4 10020018 32 128 138,5 127 124,9 10 4,70

Temperature range: -20°C +100°C.
